Rated   volume

8500   L

Tank size

4750×21 0 0×140 0mm

Rated   contained mass

6600kg

curb weight

5200kg

Divide   warehouse

2   warehouses divided equally

tank   form

Oval horizontal type, integrated   with car tank

Tank   material

SUS304-2B   food grade

Liner   thickness

δ3.0 mm

Outer   cover thickness

δ1.0mm

Milk   outlet diameter

∮51mm national   standard/non-standard

Insulation   Materials

70   mm polyurethane spray

+10mm   rubber plastic insulation cotton

Insulation   performance

Using polyurethane spray foam,   the thermal insulation performance does not exceed 2℃   for 24 hours

Tank   head

Header

Thickness 3.5mm

Cleaning   method

CIP automatic cleaning, each   warehouse is equipped with cleaning balls to meet 360°   cleaning requirements

Car   chassis

Dongfeng Dolica D 7 chassis,   wheelbase 3800 mm , YCY30165-60 Yuchai 165 horsepower National VI engine,   Wanliyang 6-speed gearbox, 245/70R19.5 tubeless tires, air brakes, with A BS ,   air conditioning, electric glass ;

Remark

1. The   milk discharge switch and cleaning switch are made into a cluster structure,   and the number of each milk bin is marked . Before the vehicle leaves the   factory, the transport medium and announced volume are sprayed on the tank   according to the announcement requirements;

2. Tank   volume 8500 L;

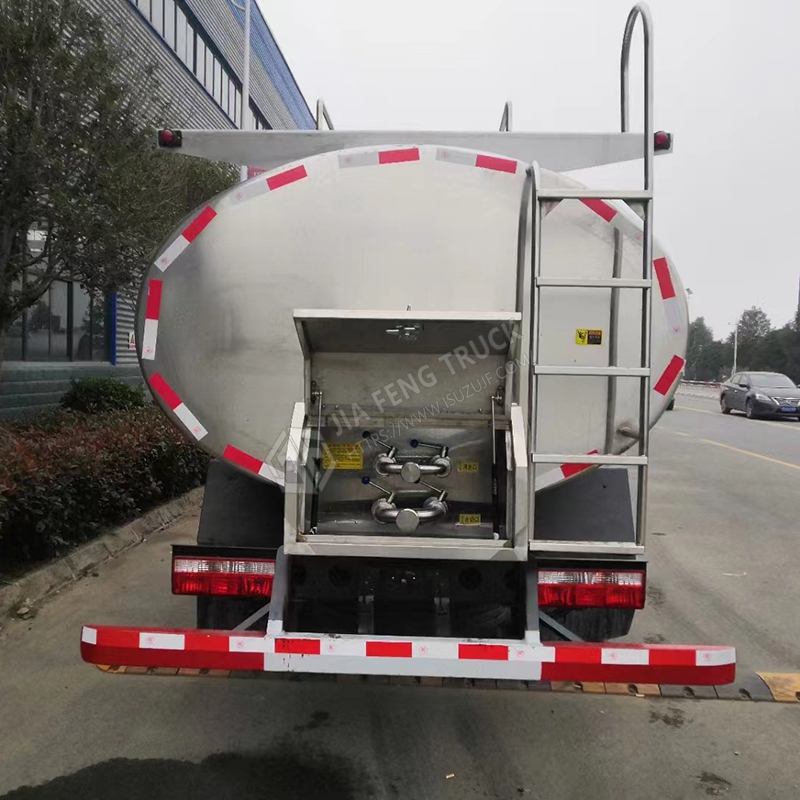

3. The   rear operation box adopts gas spring hatchback type opening and is equipped   with an opening handle;

4. Each   manhole cover and rear tool box are equipped with a lead sealing device to   facilitate the management of the milk truck when loading and unloading fresh   milk;

5. Equipped   with a movable ladder for personnel to enter and exit the tank;

6. 2   warehouses equally divided [can be customized], 1 bulging support plate, 2 ∮ 500 mm food-grade   can mouths;

7. There are 2 automatic cleaning balls in   each warehouse, controlled by 2 valves, and the valve interface is ∮ 51 mm.
