Total mass(kg)

7300

Wheelbase(mm)

3360

Rated mass (kg)

2190

Overall dimensions (mm)

6190x1990x2590

Curb weight (kg)

4980

Tank volume

4 m³ water / 2 m³ dust

engine model

4KB1-TCG60

Engine horsepower (PS)

1 30

Number of permitted   passengers in the cab (person)

3

Tire specifications

7.00R16LT 14PR

Maximum speed (km/h)

95

Remark:

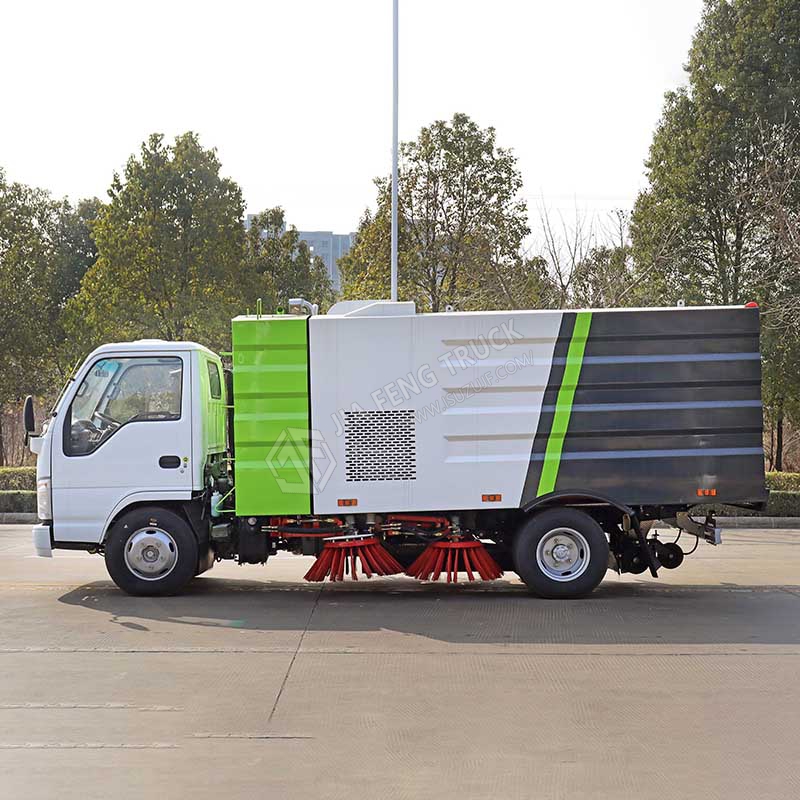

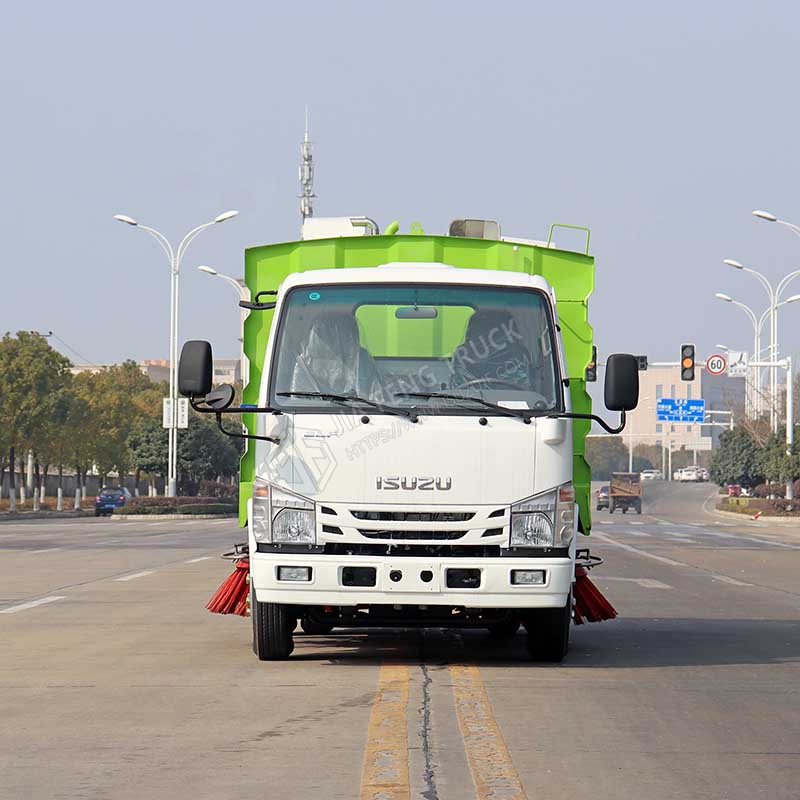

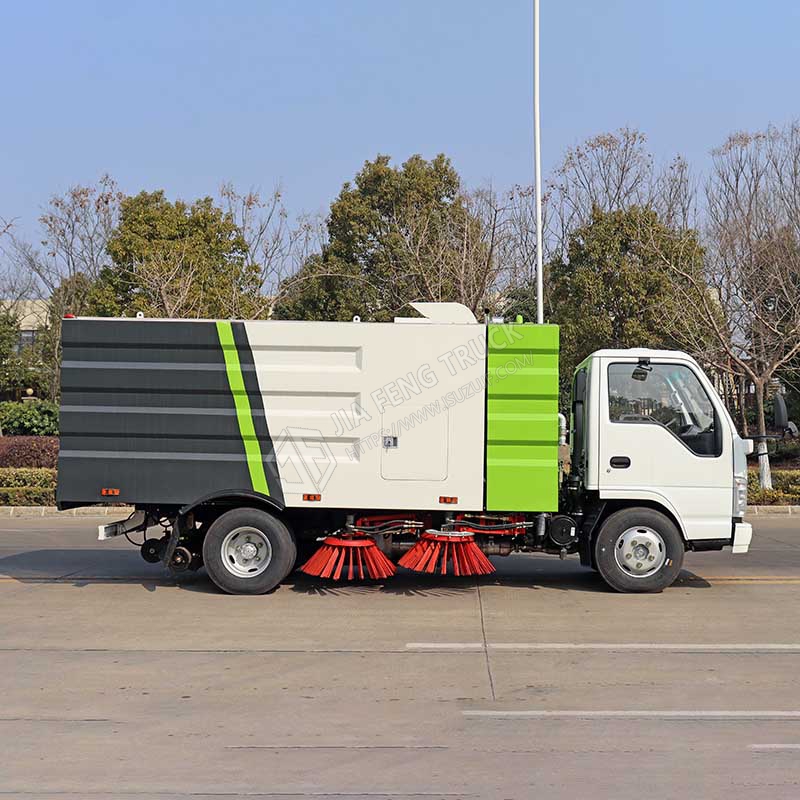

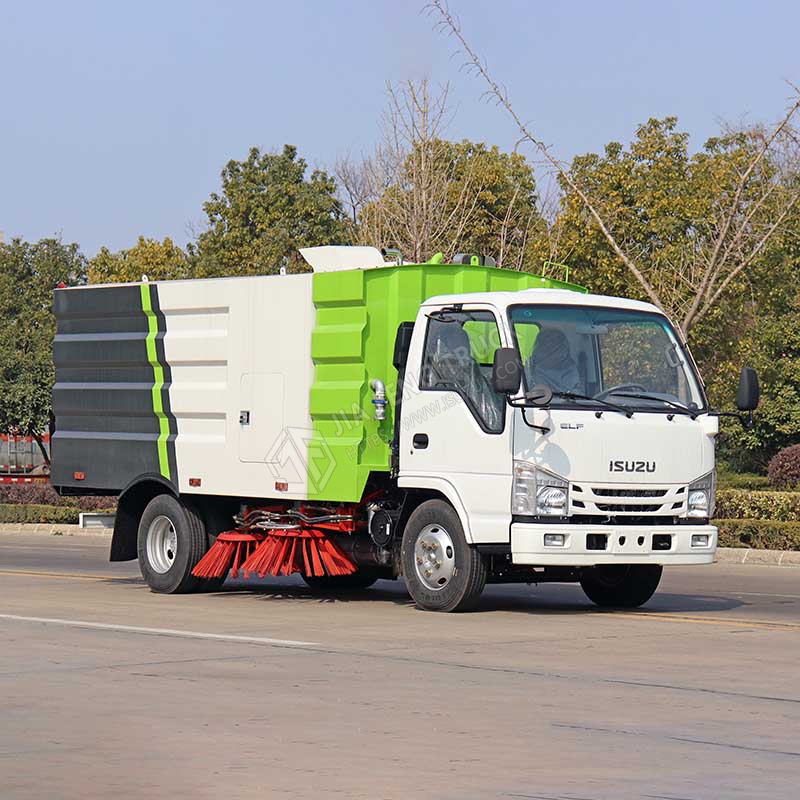

This vehicle is used to remove /collect road garbage and other dirt;   the special device is a box and cleaning device assembly, the side protection   is replaced by a special device, the material used for the rear protection is   Q235, bolted, the rear protection section size (width × height ) (mm):   50×120, rear protection height 480mm from the ground. ABS model/manufacturer:   APG3550500A/Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd.,   CM4XL-4S/4M/Guangzhou Ruilicome Automotive Electronics Co., Ltd.

Control switch:

Integrated superposition design,   electro-hydraulic centralized control in the cab, convenient operation.

fan

It adopts high-power wear-resistant centrifugal   maintenance-free fan with strong suction, low noise and simple maintenance.   The impeller is welded with high-strength steel plate and has been corrected   by static and dynamic balance. It has good aerodynamic performance, stable   operation and high strength. And long service life, simple maintenance,   reliable performance

Solenoid valve group

The core component of the vehicle hydraulic   system controls the hydraulic drive of the entire vehicle and the two-way   operation button, including a series of mechanical operations such as   sweeping plate lifting, suction cup lifting, garbage bin lifting, rear door   opening and closing, etc. The vehicle is equipped with a solenoid valve control   box cover. Effectively prevent dust and garbage from entering the box.

Electromagnetic water pump

12V/24V, control the water spray bracket above   the sweeping brush, effectively suppressing the secondary dust generated by   the sweeping brush

cycloid motor

It can drive the sweep brush to rotate at high   speed, has a long service life, is stable and reliable, and has a low failure   rate!

Sweep

Use an inclined sweep brush to sweep the garbage   in front of the suction cup. Under the negative pressure generated by the   fan, the air flow will suck the garbage into the garbage bin for storage in a   closed circuit.

suction   cup

It adopts a fully floating suction   nozzle that can automatically level with the road surface, which has good   dust collection effect and long service life.
