Number of permitted   passengers in the cab (person)

3

Tire specifications

10.00R20 18PR

Maximum speed (km/h)

89

Remark:

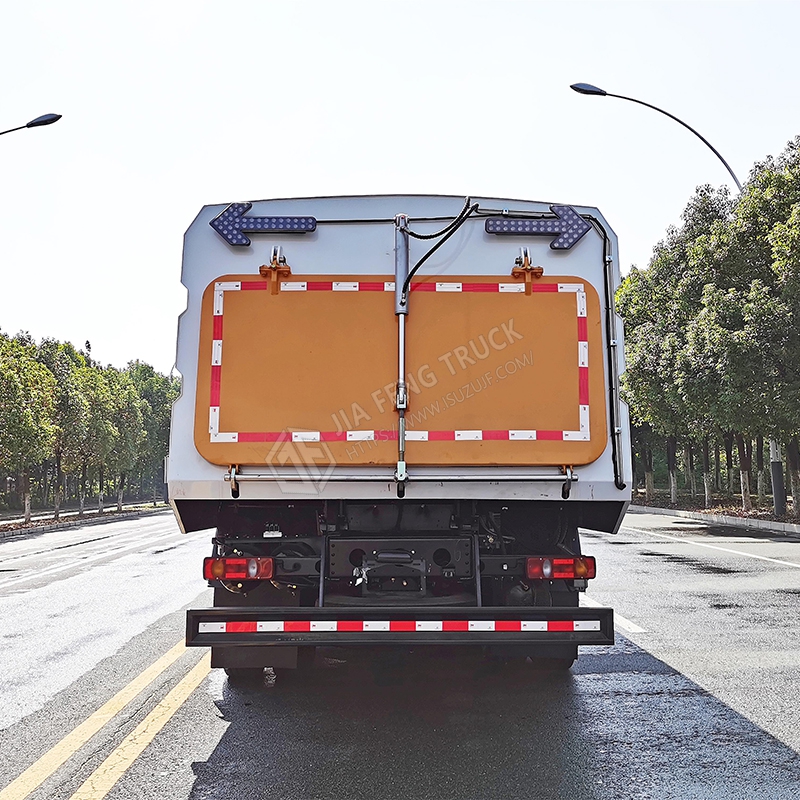

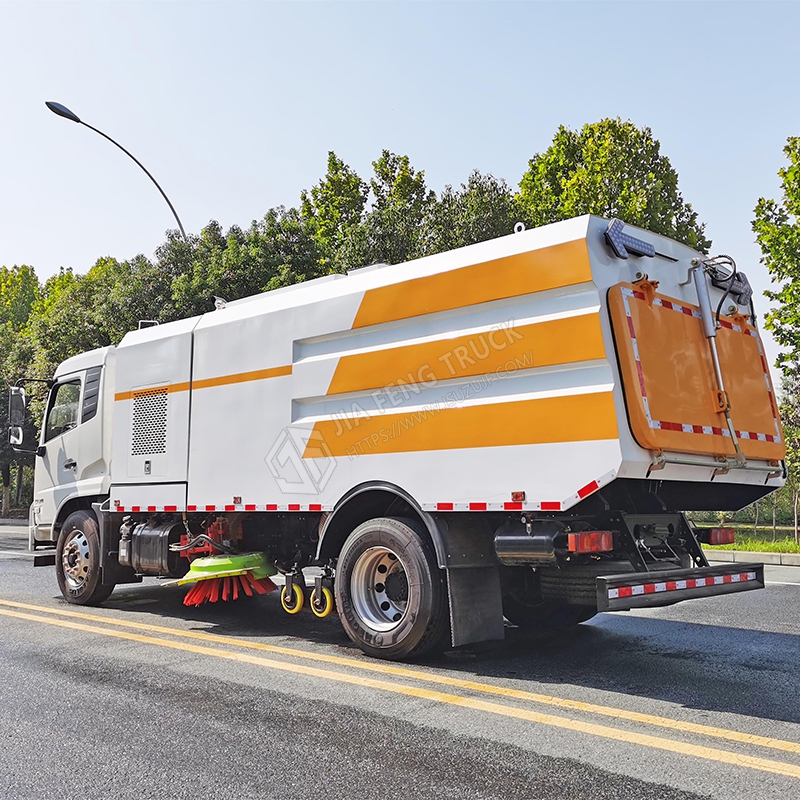

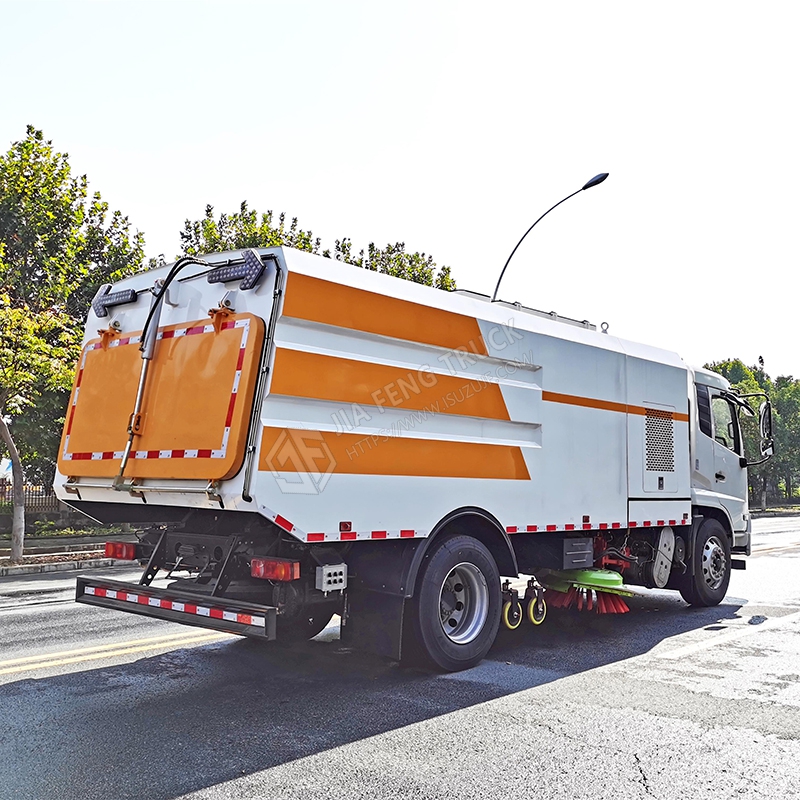

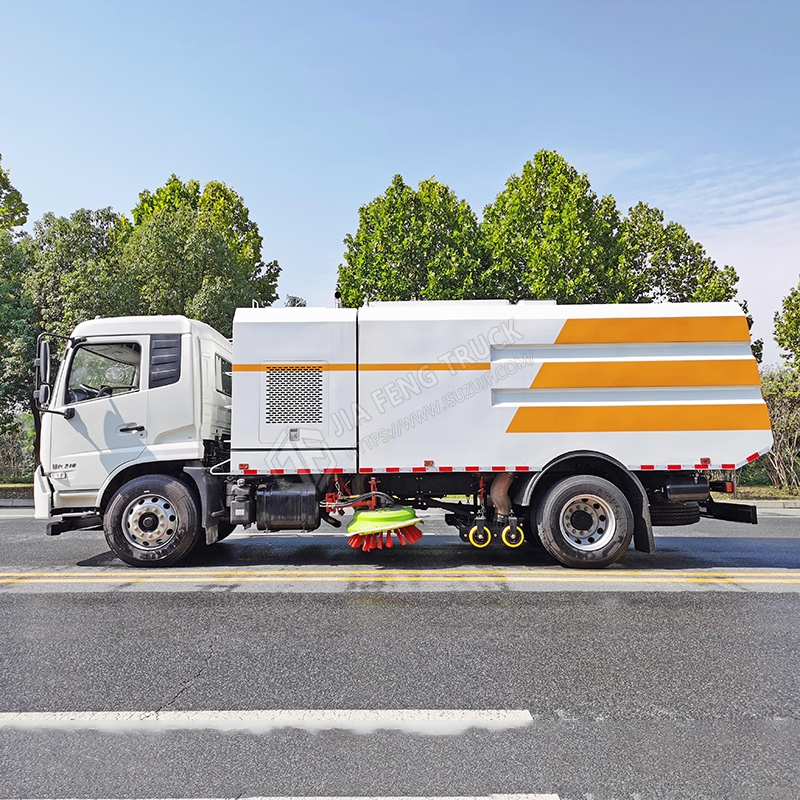

This vehicle is a special vehicle for road cleaning. The special device   is a sweep brush. Protection material: Q235A carbon steel. Connection method:   left and right side protection is sweep brush. Ground clearance is (mm): 180.   The rear lower protection and the frame are welded. , Rear lower protection   size: 50×120 (mm), height from the ground 470mm. Cab is   optional with the chassis. ABS model/manufacturer: 3631010-C2000/Dong Keknoll   Commercial Vehicle Braking System (Shiyan) Co., Ltd., ABS 8/Dongkok Nor   Commercial Vehicle Braking System (Shiyan) Co., Ltd., 4460046450/WABCO   Automotive Control System (China) Co., Ltd., J ABS/Jiaozuo Borrick Control   Technology Co., Ltd. This vehicle is long/front The corresponding   relationship between suspension/wheelbase/rear suspension is   (mm):7930/1430/4700/1800,7930/1400/4700/1830,7730/1430/4500/1800,7430/1430/4200/1800,7180/1430/   3950/1800, 7030/1430/3800/1800. Optional cab and rear appearance style are   optional with the chassis.

Control switch:

Integrated superposition design,   electro-hydraulic centralized control in the cab, convenient operation.

fan

It adopts high-power wear-resistant centrifugal   maintenance-free fan with strong suction, low noise and simple maintenance.   The impeller is welded with high-strength steel plate and has been corrected   by static and dynamic balance. It has good aerodynamic performance, stable   operation and high strength. And long service life, simple maintenance,   reliable performance

Solenoid valve group

The core component of the vehicle hydraulic   system controls the hydraulic drive of the entire vehicle and the two-way   operation button, including a series of mechanical operations such as   sweeping plate lifting, suction cup lifting, garbage bin lifting, rear door   opening and closing, etc. The vehicle is equipped with a solenoid valve   control box cover. Effectively prevent dust and garbage from entering the   box.

Electromagnetic water pump

12V/24V, control the water spray bracket above   the sweeping brush, effectively suppressing the secondary dust generated by   the sweeping brush

cycloid motor

It can drive the sweep brush to rotate at high   speed, has a long service life, is stable and reliable, and has a low failure   rate!

Sweep

Use an inclined sweep brush to sweep the garbage   in front of the suction cup. Under the negative pressure generated by the   fan, the air flow will suck the garbage into the garbage bin for storage in a   closed circuit.

suction   cup

It adopts a fully floating suction   nozzle that can automatically level with the road surface, which has good   dust collection effect and long service life.
