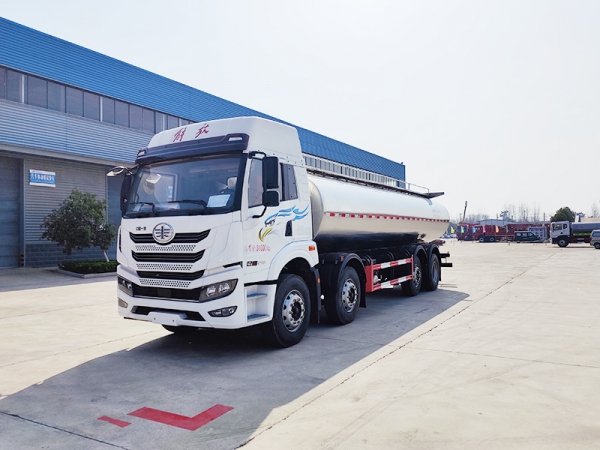

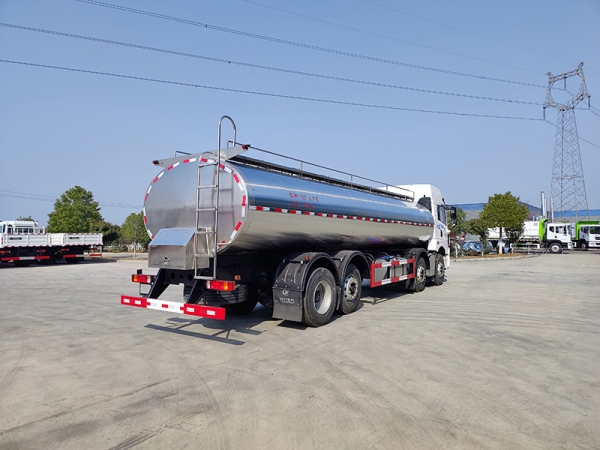

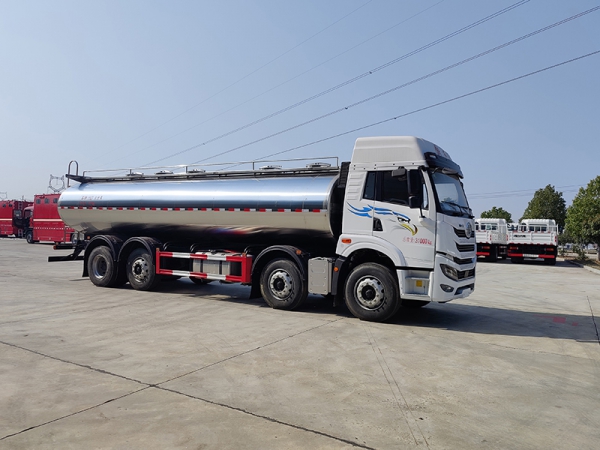

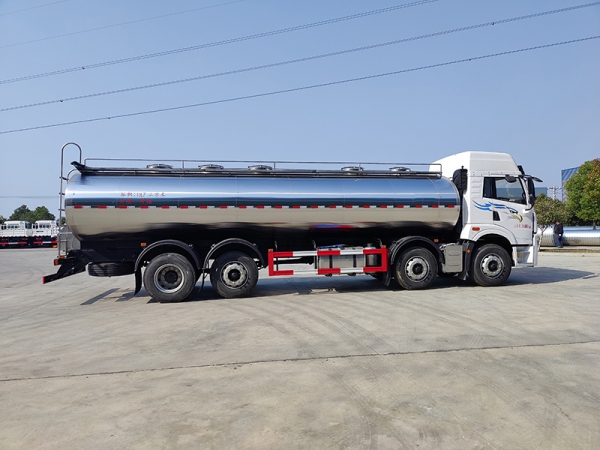

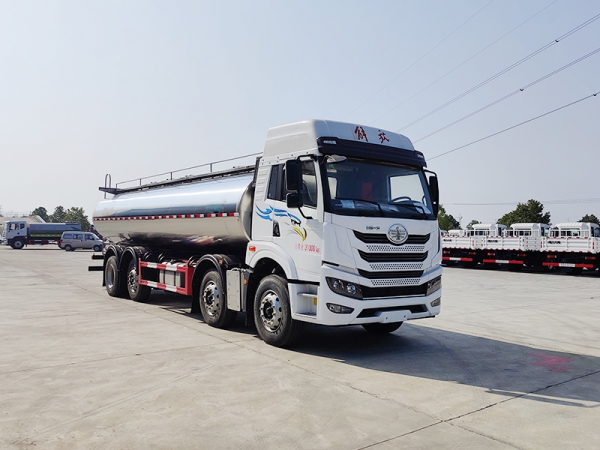

Jiefang front four rear six 22 square milk tanker

Rated  volume

22000L

Tank size

8700×2450×1650mm

Rated  contained mass

18800kg

curb weight

12005kg

Divide  warehouse

4 positions evenly divided

tank form

Oval horizontal type,  integrated with car tank

Tank  material

SUS304-2B food grade

Liner thickness

δ3.0 mm

Outer  cover thickness

δ1.0mm

Milk outlet diameter

∮51mm national  standard/non-standard

Insulation  Materials

70 mm polyurethane spray

+10mm rubber plastic insulation cotton

Insulation  performance

Using polyurethane spray foam, the thermal insulation performance does not exceed 2℃ for 24 hours

Tank  head

Single-layer butterfly head thickness 3.5 mm

Cleaning method

CIP automatic cleaning, 8 sets of cleaning balls,  meeting 360° cleaning requirements

Car chassis

Jiefanghan V chassis, wheelbase 1900+4160+1350mm,  CA6DLD-29E6, 290 horsepower National VI  engine , Jiefang 9 -speed gearbox ,  295/80R22.5 tubeless tires, air brakes,  with ABS, air conditioning,  electric glass;
