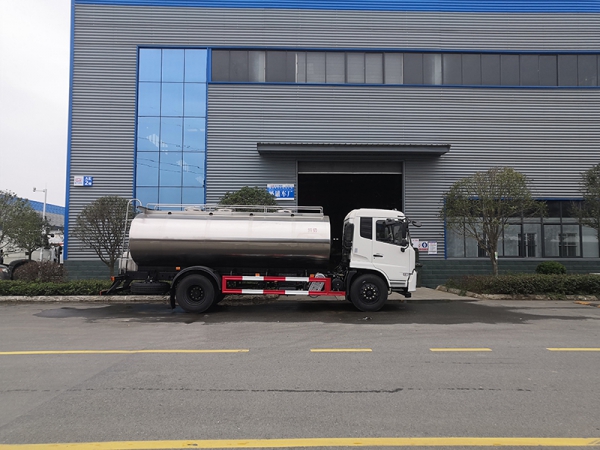

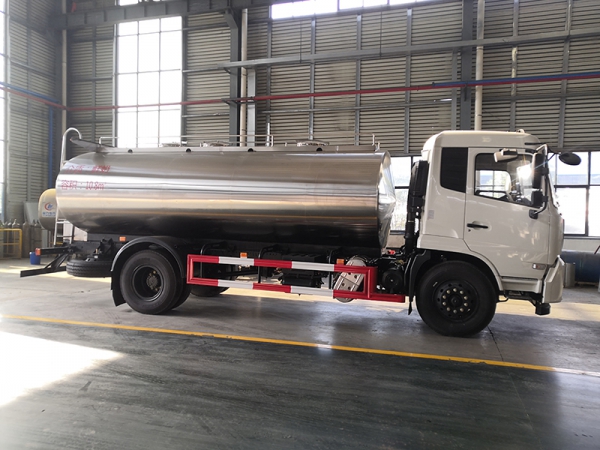

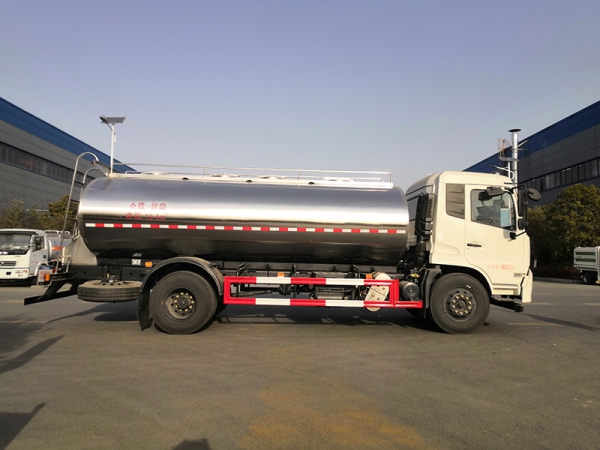

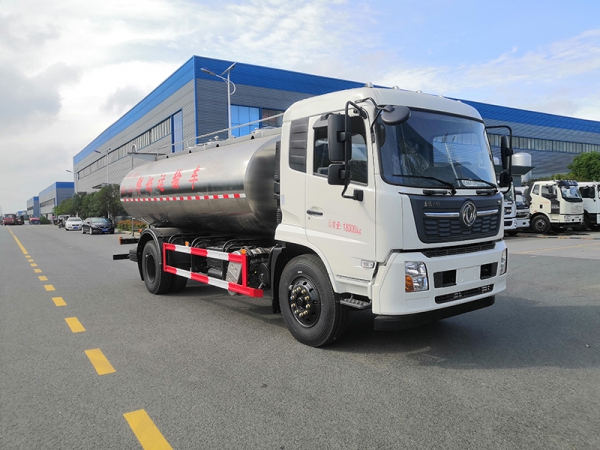

Dongfeng Tianjin 13 square meters milk tanker

Rated  volume

13000  L

Tank size

5700×24 0 0×160 0mm

Rated  contained mass

10300kg

curb weight

7505kg

Divide  warehouse

3  warehouses divided equally

tank  form

Oval horizontal type, integrated  with car tank

Tank  material

SUS304-2B  food grade

Liner  thickness

δ3.0 mm

Outer  cover thickness

δ1.0mm

Milk  outlet diameter

∮51mm national  standard/non-standard

Insulation  Materials

70  mm polyurethane spray

+10mm  rubber plastic insulation cotton

Insulation  performance

Using polyurethane spray foam,  the thermal insulation performance does not exceed 2℃  for 24 hours

Tank  head

Single layer butterfly head

Thickness 3mm

Cleaning  method

CIP automatic cleaning, each  warehouse is equipped with cleaning balls to meet 360°  cleaning requirements

Car  chassis

Dongfeng Tianjin chassis, wheelbase  4700 mm, B6.2NS6B230 Cummins 2 30 horsepower National VI engine, small  8-speed gearbox, 10.00R20 wire tires, air brakes, with A BS , air  conditioning, electric glass;

Remark

1. The  milk discharge switch and cleaning switch are made into a cluster structure,  and the number of each milk bin is marked. Before the vehicle leaves the  factory, the transport medium and announced volume are sprayed on the tank  according to the announcement requirements;

2. Tank  volume 13000 L;

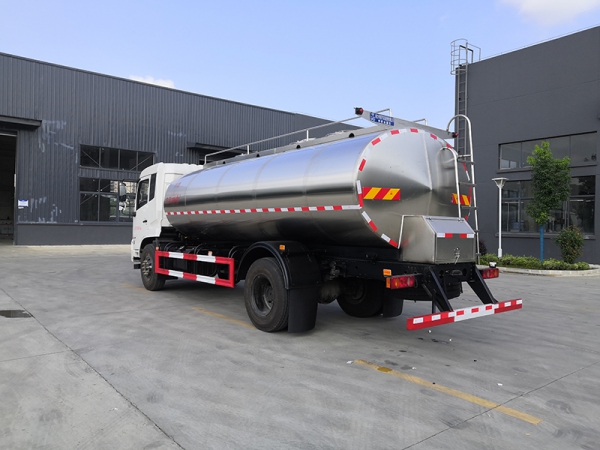

3. The  rear operation box adopts gas spring hatchback type opening and is equipped  with an opening handle;

4. Each  manhole cover and rear tool box are equipped with a lead sealing device to  facilitate the management of the milk truck when loading and unloading fresh  milk;

5. Equipped  with a movable ladder for personnel to enter and exit the tank;

6. 3 warehouses  equally divided [can be customized], 2 bulging support plates, 3 ∮ 500 mm food-grade  can mouths;

7. There are 2 automatic cleaning balls in  each warehouse, controlled by 3 valves, and the valve interface is ∮ 51 mm.
