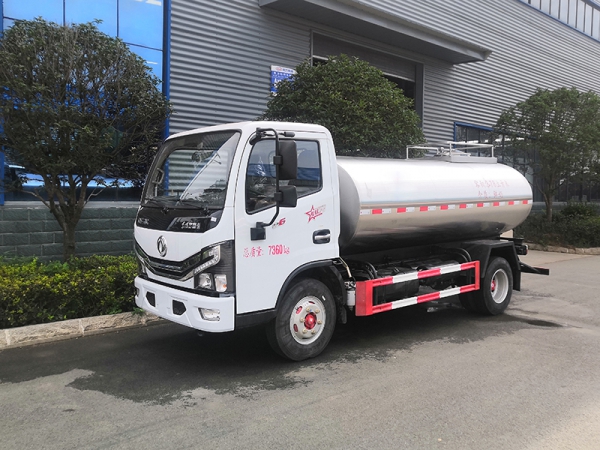

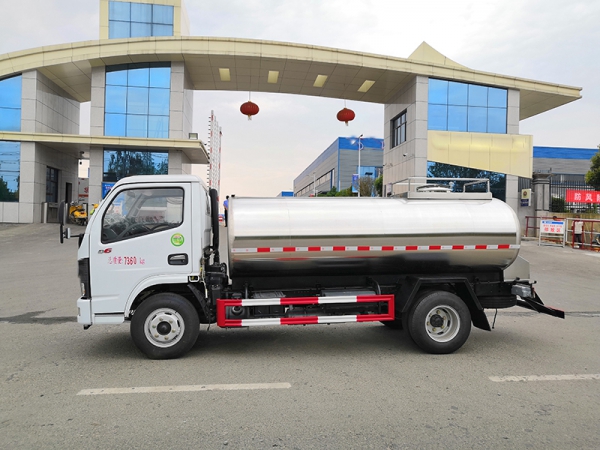

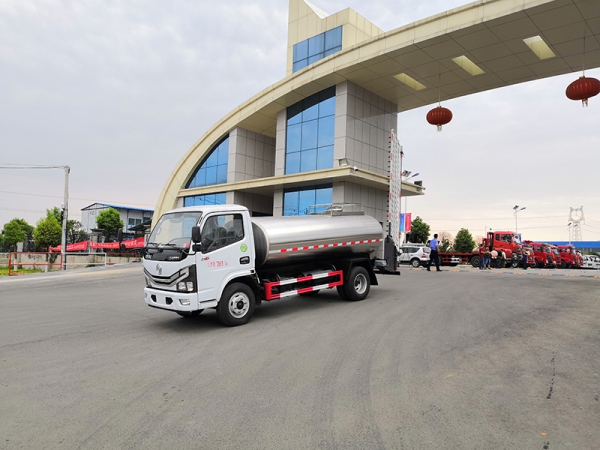

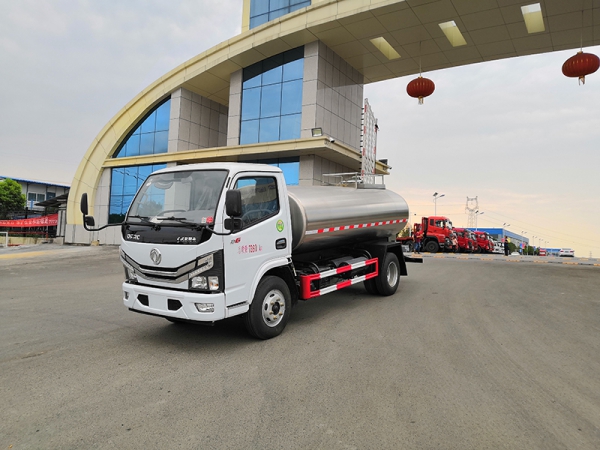

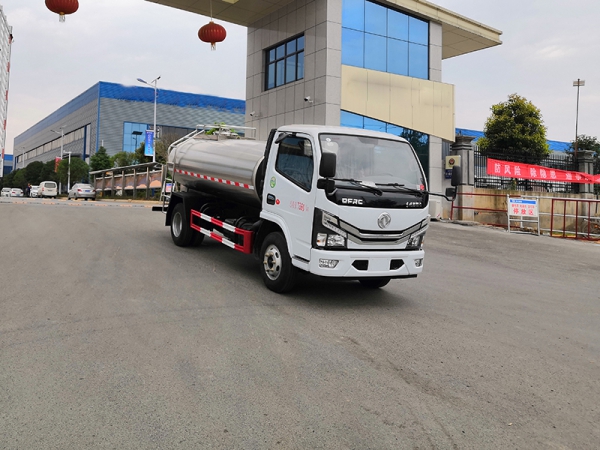

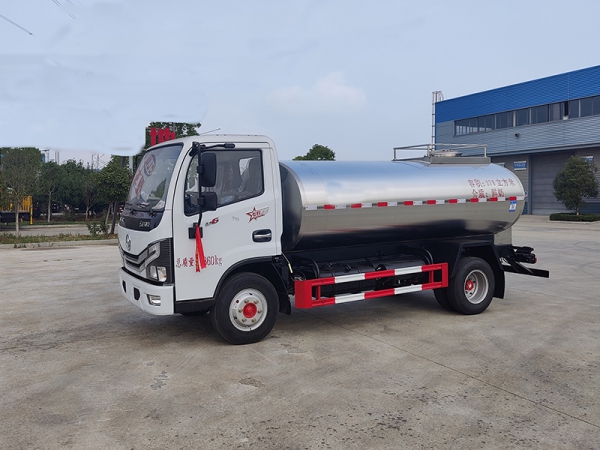

Dongfeng Dolica 4.7 square meters milk tanker truck

Rated  volume

4700L

Tank size (

370 0 ×18 0 0×120 0mm

Rated  contained mass

3  600kg

curb weight

3 630kg

Divide  warehouse

Tongcang

tank  form

Oval horizontal type, integrated  with car tank

Tank  material

SUS304-2B  food grade

Liner  thickness

δ3.0 mm

Outer  cover thickness

δ1.0mm

Milk  outlet diameter

∮51mm national  standard/non-standard

Insulation  Materials

70  mm polyurethane spray

+10mm  rubber plastic insulation cotton

Insulation  performance

Using polyurethane spray foam,  the thermal insulation performance does not exceed 2℃  for 24 hours

Tank  head

Single layer flat head

Thickness 3.5 mm

Cleaning  method

CIP automatic cleaning, each  warehouse is equipped with cleaning balls to meet 360°  cleaning requirements

Car  chassis

Dongfeng Dolica D 6 chassis,  wheelbase 3308 mm, YCY24140-60 Yuchai 1 40- horsepower National VI engine,  Wanliyang 6-speed gearbox, 7.00R16 wire tires, air brakes, with A BS , air  conditioning, electric glass;

Remark

1. The  milk discharge switch and cleaning switch are made into a cluster structure,  and the number of each milk bin is marked . Before the vehicle leaves the  factory, the transport medium and announced volume are sprayed on the tank  according to the announcement requirements;

2. Tank  volume 4700 L;

3. The  rear operation box adopts gas spring hatchback type opening and is equipped  with an opening handle;

4. Each  manhole cover and rear tool box are equipped with a lead sealing device to  facilitate the management of the milk truck when loading and unloading fresh  milk;

5. Equipped  with a movable ladder for personnel to enter and exit the tank;

6. Through-silo  design , no support plate, one ∮ 500 mm food-grade tank mouth;

7. There are two automatic cleaning balls  in the warehouse, controlled by one valve, and the valve interface is ∮  51 mm.
