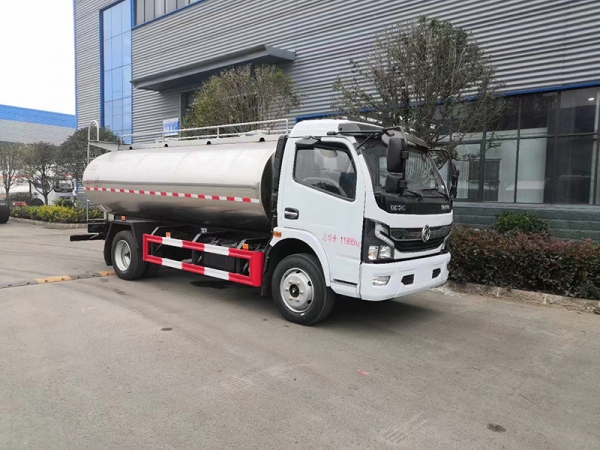

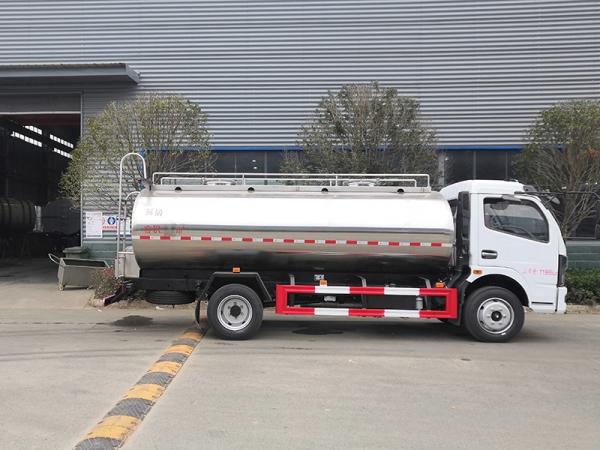

Dongfeng 8.5 square milk tanker

Rated  volume

8500  L

Tank size

4750×21 0 0×140 0mm

Rated  contained mass

6600kg

curb weight

5200kg

Divide  warehouse

2  warehouses divided equally

tank  form

Oval horizontal type, integrated  with car tank

Tank  material

SUS304-2B  food grade

Liner  thickness

δ3.0 mm

Outer  cover thickness

δ1.0mm

Milk  outlet diameter

∮51mm national  standard/non-standard

Insulation  Materials

70  mm polyurethane spray

+10mm  rubber plastic insulation cotton

Insulation  performance

Using polyurethane spray foam,  the thermal insulation performance does not exceed 2℃  for 24 hours

Tank  head

Header

Thickness 3.5mm

Cleaning  method

CIP automatic cleaning, each  warehouse is equipped with cleaning balls to meet 360°  cleaning requirements

Car  chassis

Dongfeng Dolica D 7 chassis,  wheelbase 3800 mm , YCY30165-60 Yuchai 165 horsepower National VI engine,  Wanliyang 6-speed gearbox, 245/70R19.5 tubeless tires, air brakes, with A BS ,  air conditioning, electric glass ;

Remark

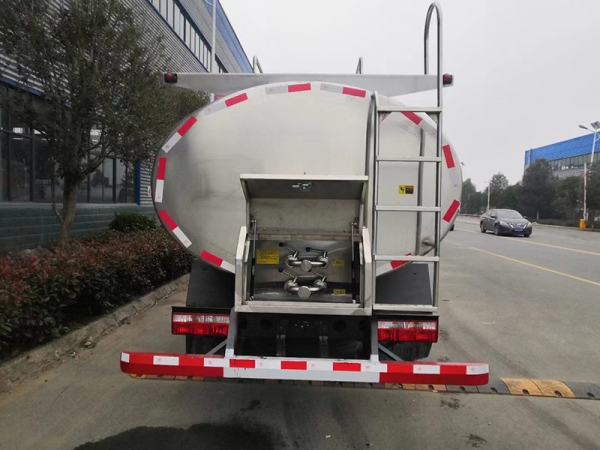

1. The  milk discharge switch and cleaning switch are made into a cluster structure,  and the number of each milk bin is marked . Before the vehicle leaves the  factory, the transport medium and announced volume are sprayed on the tank  according to the announcement requirements;

2. Tank  volume 8500 L;

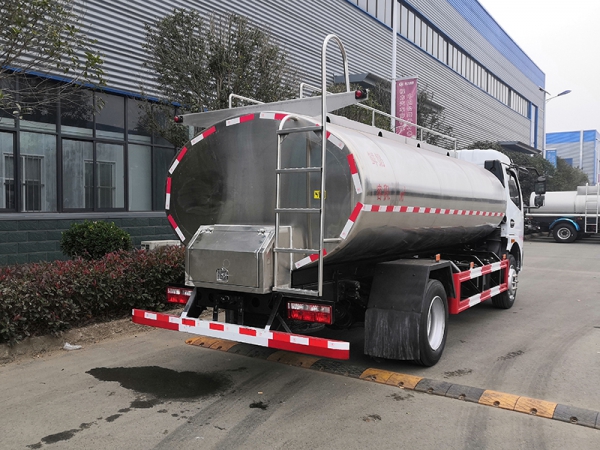

3. The  rear operation box adopts gas spring hatchback type opening and is equipped  with an opening handle;

4. Each  manhole cover and rear tool box are equipped with a lead sealing device to  facilitate the management of the milk truck when loading and unloading fresh  milk;

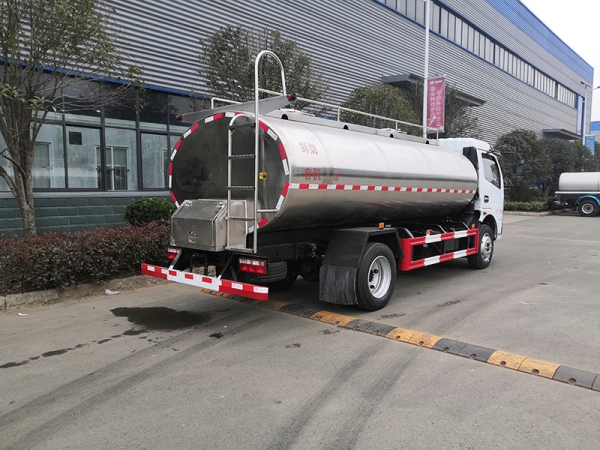

5. Equipped  with a movable ladder for personnel to enter and exit the tank;

6. 2  warehouses equally divided [can be customized], 1 bulging support plate, 2 ∮ 500 mm food-grade  can mouths;

7. There are 2 automatic cleaning balls in  each warehouse, controlled by 2 valves, and the valve interface is ∮ 51 mm.
