Dollywood compact rear-mounted vacuum

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

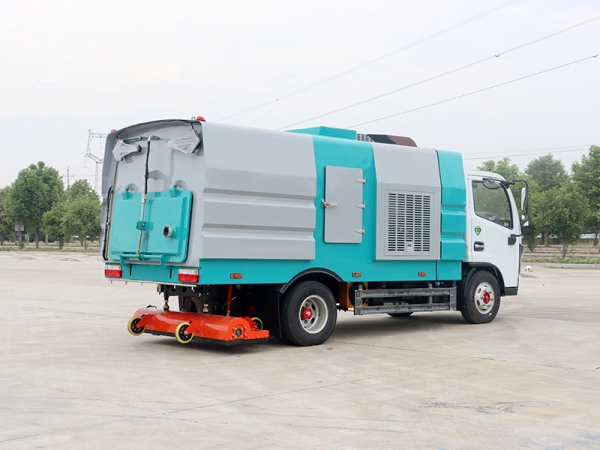

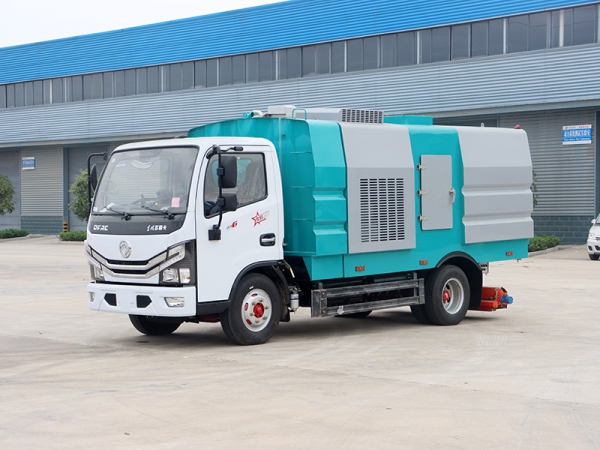

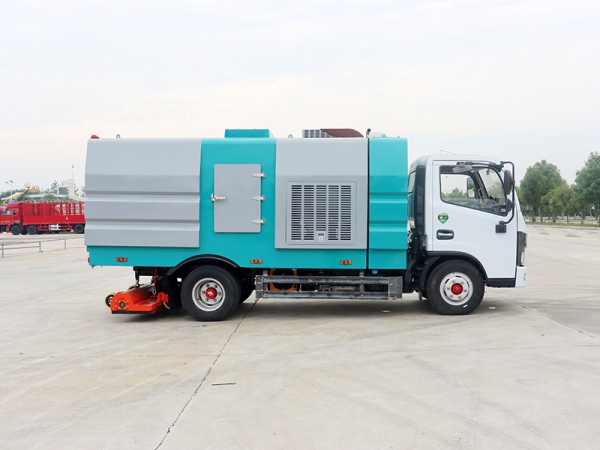

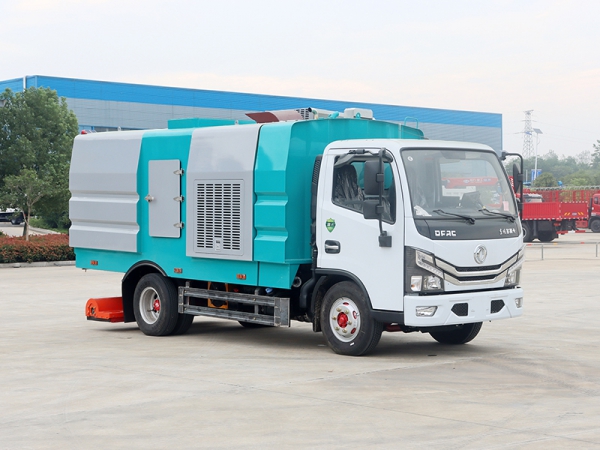

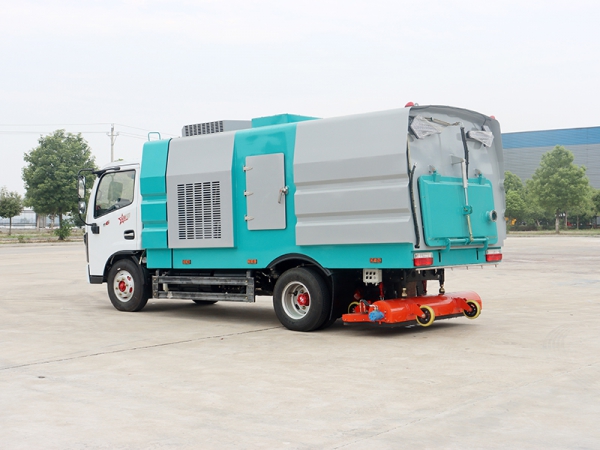

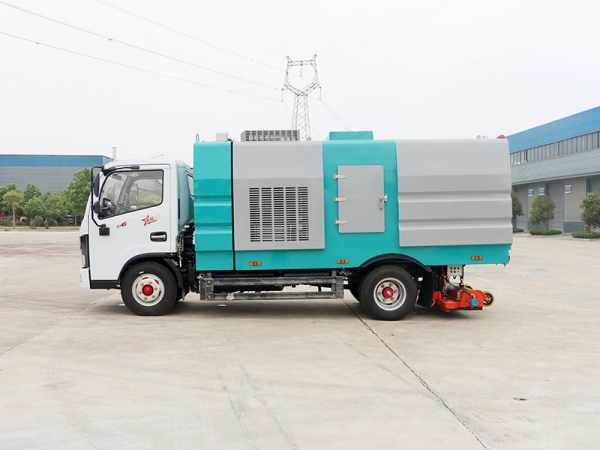

Dollywood compact rear-mounted vacuum-Product Pictures

Dollywood compact rear-mounted vacuum Dollywood compact rear-mounted vacuum Dollywood compact rear-mounted vacuum Dollywood compact rear-mounted vacuum Dollywood compact rear-mounted vacuum Dollywood compact rear-mounted vacuum

Dollywood compact rear-mounted vacuum-Product Parameters

Vehicle model

CL5070TXCE6GX

Wheelbase (mm)

3308mm

engine model

Q23-136E60 Quanchai;  D20TCIF1 Yunnei; YCY24140-60 Yuchai diesel engine

Engine horsepower (PS)

100/93/103

Auxiliary engine horsepower (PS)

JMC 87/Qingfa 88 (optional)

The box has a water tank  volume

1 water/4 dust (m³)

Capacity of box without  water tank

5m³dust

Overall dimensions (length × width × height)

6200*2150*2640( mm)

Front  suspension/rear suspension (mm)

1055/1837

Maximum total mass (kg)

7360

Curb weight (kg)

5420

Rated  load mass (kg)

1810



Maximum  cleaning width (m)

2.5

Maximum  cleaning capacity (/h)

36000

Cleaning  speed (km/h)

5-20

Cleaning  speed (km/h)

15-20

The  electromagnetic valve

The  Hypress solenoid valve group is the core component of the vehicle hydraulic  system. It controls the hydraulic drive of the entire vehicle and the two-way  operation buttons, including a series of mechanical operations such as sweeping  plate lifting, suction cup lifting, garbage bin lifting, and rear door  opening and closing. The vehicle is equipped with There is a solenoid valve  to control the box cover, which effectively prevents dust and garbage from  entering the box.

fan

The auxiliary  engine and the fan are the two core components of the sweeper. The auxiliary  engine provides power for the operation of the fan, so that road garbage is  sucked into the box and stored inside, thereby achieving road cleaning  operations. The fan adopts high-power wear-resistant centrifugal  maintenance-free fan, which is noise-free, high efficiency, large air volume  and long service life.

automatic  clutch

Reduce  the impact on the engine when the fan starts and stops. The clutch has the  advantages of high wear resistance, long service life, low noise, low fuel  consumption and cost saving during use .

suction  cup

The  suction cup has a built-in roller sweeper to effectively clean up road  debris.

filter  element

Vertical  filter cartridge for easy cleaning and disassembly

Auxiliary  engine

The  auxiliary engine provides power for the operation of the fan.

Side  brush

Increase  the working width and effectively sweep the garbage into the suction cup  position.

Electronic  diaphragm pump:

Control  the tail water spray lever to spray water to suppress dust.

emergency  system

The  entire vehicle hydraulic system can be controlled through a manual emergency  hydraulic pump.

tail  spray

After  the operation is completed, dust is suppressed at the tail.
