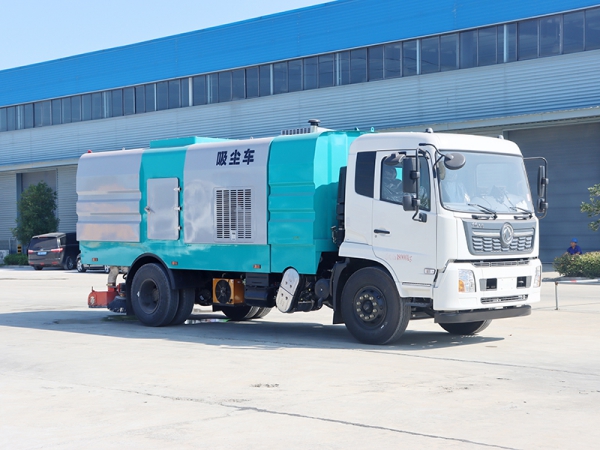

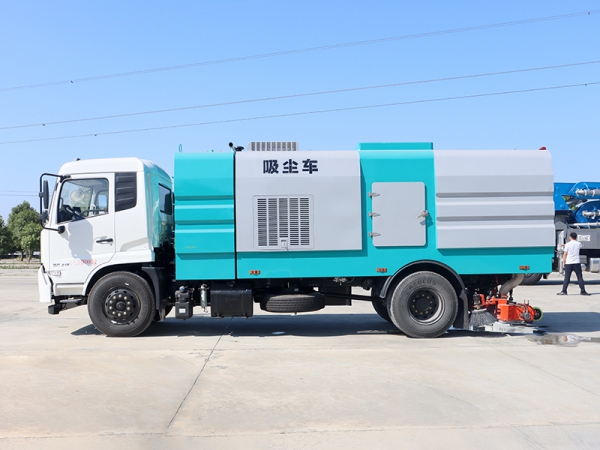

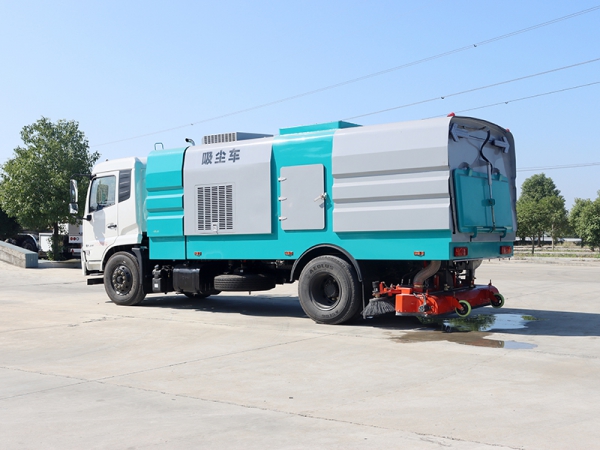

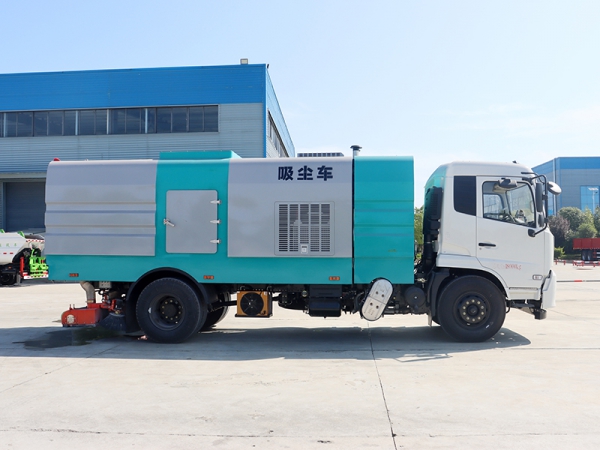

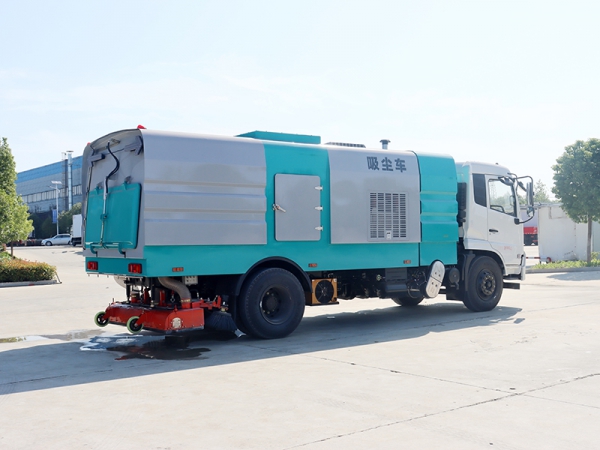

Vehicle model | CL 5180TXC6GX | Wheelbase (mm) | 4 700 mm |
engine model | D6.7NS6B230/DDi47E210-60
Dongfeng Cummins Engine Co., Ltd./Dongfeng Commercial Vehicle Co., Ltd.
diesel engine |
Engine horsepower (PS) | Kangji 230/ Longqing 210 | Auxiliary engine horsepower
(PS) | Kangji 170 |
The box has a water tank
volume | 2 water/8 dust (m³) |
|
|
Overall dimensions (length × width × height) | 8350×2550×3200mm | Front suspension/rear suspension (mm) | 1400/2550,1430/2520(mm) |
Maximum total mass (kg) | 18000 | Curb weight (kg) | 10750,10350,11200(Kg) |
Rated load mass (kg) | 7120,7055,7520,7455,6670.6605(Kg) |
|
|
Maximum cleaning width (m) | 2.8 | Maximum cleaning capacity (㎡/h) | 19800㎡/h-88000㎡/h |
Cleaning speed (km/h) | 5-20 | Cleaning speed (km/h) | 15-20 |
The
electromagnetic valve | The
Hypress solenoid valve group is the core component of the vehicle hydraulic
system. It controls the hydraulic drive of the entire vehicle and the two-way
operation buttons, including a series of mechanical operations such as
sweeping plate lifting, suction cup lifting, garbage bin lifting, and rear
door opening and closing. The vehicle is equipped with There is a solenoid
valve to control the box cover, which effectively prevents dust and garbage
from entering the box. | fan | The
auxiliary engine and the fan are the two core components of the sweeper. The
auxiliary engine provides power for the operation of the fan, so that road
garbage is sucked into the box and stored inside, thereby achieving road
cleaning operations. The fan adopts high-power wear-resistant centrifugal
maintenance-free fan, which is noise-free, high efficiency, large air volume
and long service life. |
automatic
clutch | Reduce
the impact on the engine when the fan starts and stops. The clutch has the
advantages of high wear resistance, long service life, low noise, low fuel
consumption and cost saving during use . | suction
cup | The
suction cup has a built-in roller sweeper to effectively clean up road
debris. |
filter
element | Vertical
filter cartridge for easy cleaning and disassembly | Auxiliary
engine | The
auxiliary engine provides power for the operation of the fan. |
Side
brush | Increase
the working width and effectively sweep the garbage into the suction cup
position. | Electronic
diaphragm pump: | Control
the tail water spray lever to spray water to suppress dust. |
emergency
system | The
entire vehicle hydraulic system can be controlled through a manual emergency
hydraulic pump. | tail
spray | After
the operation is completed, dust is suppressed at the tail. |
