serial number | project name | The main technical
parameters |

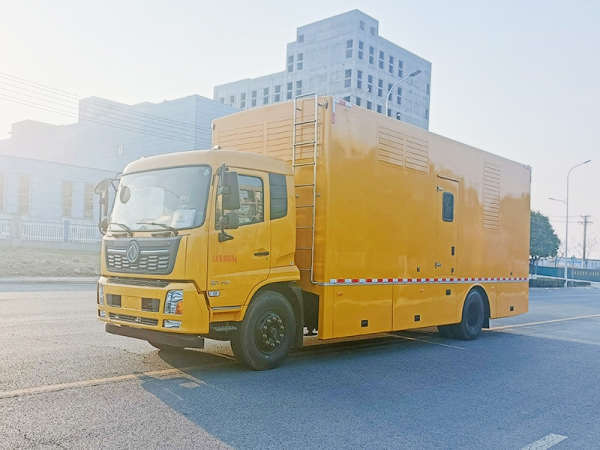

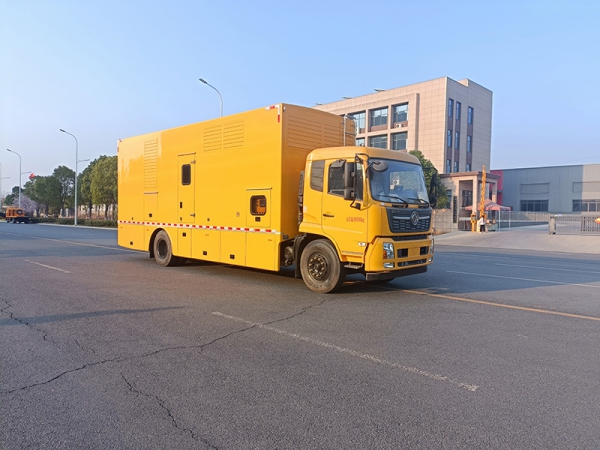

1 | vehicle | 1、
The chassis adopts Dongfeng Tianjin: DFH1180EX8 , engine
model: B6.2NS6B2 3 0 , engine power 169kw, fuel type: diesel. Emission standards: GB3847-2005,
GB17691-2018 National VI . 2. Total vehicle mass:
18000KG, wheelbase 5800mm 3. The cab is equipped
with air conditioning, power steering and reversing image. 4. A ladder is
installed in the carriage to facilitate roof inspection. 5. The color of the
vehicle is engineering yellow. 6. The
vehicle has been announced by the Ministry of Public Information and can be
legally registered at the place of purchase. |
2 | car | 1、Car body length: 7600mm. 2、Car body: It has
transportation, rain-proof, fire-proof, flame-retardant, dust-proof,
rust-proof, dry-reducing, shock-isolating and long-term earthquake-resistant
structure. The outer steel material is high-quality cold-rolled steel plate
with smooth surface treatment, and is lined with high-quality cold-rolled
steel plate bent frame, which has strong strength and reasonable weight. 3. The car body is designed with an integrated steel
structure and a flat top. The car body adopts the form of a skeleton sandwich.
The outer skin is made of 1.5mm thick high-quality anti-rust treated
automobile-specific cold-rolled steel plates. The middle frame is welded with
anti-rust treated steel pipes. The top layer, the inner and outer layers of
the side panels are filled with long Time uses fire-retardant and
environmentally friendly sound-absorbing cotton that is harmless to the human
body. The outer layer is covered with a layer of flame-retardant metal cloth,
and the interior uses 0.8mm thick mesh panels. The bottom plate adopts a
steel structure bottom frame, and the upper surface is paved with a 2mm thick
pattern steel plate. 4. The vehicle body adopts an
overall covering type. The lower parts of both sides of the car body are
equipped with skirts and a fully enclosed structure. The top is arc-shaped.
The tail has turn signals, brake lights, tail lights, and fog lights. The
surface of the car body is smooth and flat. . The front part of the carriage

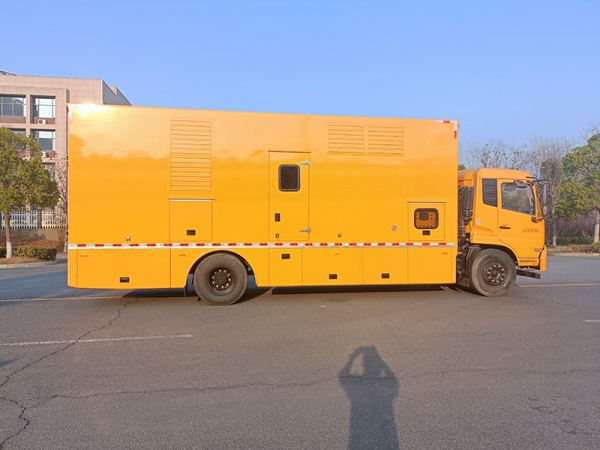

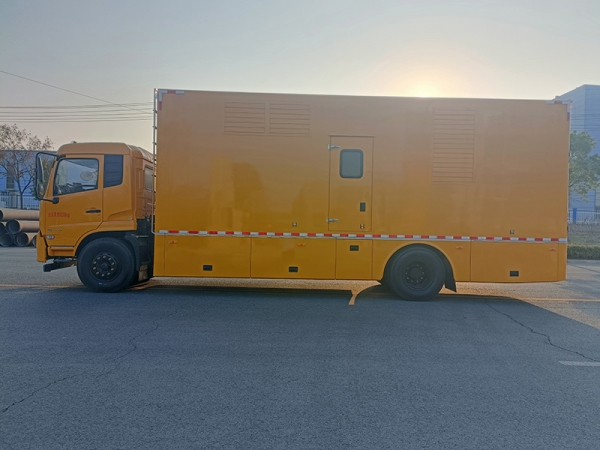

near the cab is the exhaust room, and the back is the unit room. There is a
unit access door on the left and right sides of the unit room, and a built-in

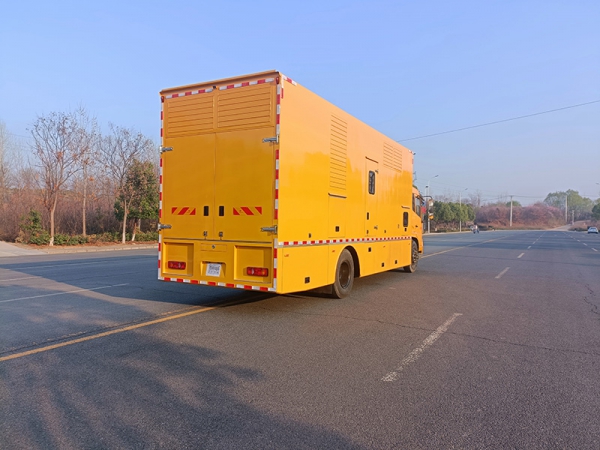

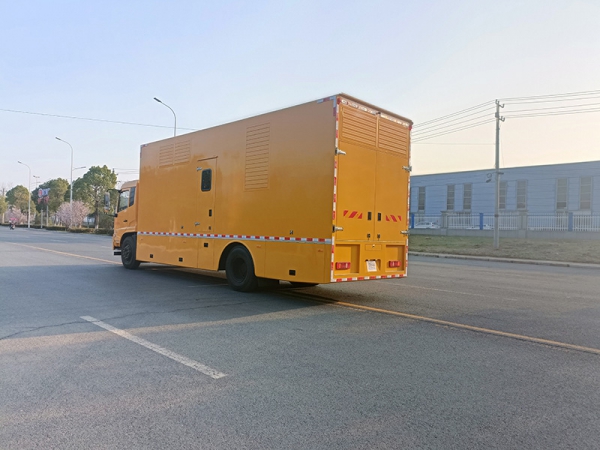

boarding step ladder is installed under the door. The rear of the carriage is
a hydraulic reel room with rear double doors and a set of hidden pull-out
ladders under the doors to facilitate direct access to the hydraulic reel
room from the rear door. 5. Car body spray
paint: engineering yellow, the same color as the front of the car; |
3 | Mobile power system | 1. The
engine adopts China III Cummins, with a rated output power of 500KW and a
standby power of 550KW. 2. The system has a
three-phase four-wire system, rated line voltage 400V, current 900A; speed
regulation/level: electronic/G2 level, high-precision electronic speed
regulation system. 3. The oil tank at the base of
the unit can meet the continuous use of the generator set for 8 hours. 4. Adopt intelligent control
system, centralized control, with unit control screen, Chinese interface,
which can display water temperature, oil pressure, speed, current, voltage,
etc., with automatic obstacle protection function, high-quality electrical
components, stable performance, and rear configuration of the box Ground
protection device, safe and reliable |
4 | cable reel | A set of
single-layer 8-disc hydraulic reels, |
5 | cable | The reel
is equipped with 8 YC1*185mm² 50-meter-long cables, and the cable
length on the reel is 400 meters. In addition, there are 80 meters of
connecting cables in the car, and a total of 480 meters of YC1*185 cables in
the whole car. |
6 | supporting system | 1、The vehicle chassis is
equipped with 4 hydraulic support legs (2 at the front and 2 at the rear). 2. The static load of
a single cylinder is 10 tons, and a two-way hydraulic lock is installed. |
7 | Lamps and warning
signs | 1. Internal lighting:
DC and AC dual-circuit lighting power supply. Ensure that there are no blind
spots in the light inside the car. 2. Signal devices
should be installed on the exterior of the vehicle in accordance with
national standards: side marker lights, reflective signs, etc. 3. External lighting
system (lighting provided during night construction): One set of lifting
lights is installed on the top of the vehicle body. The remote control
operation distance is 25 meters. It can rotate and tilt to facilitate night
construction. The lifting height is 1.8 meters. The searchlight can rotate
up, down, left and right. , horizontal rotation angle: 360°, vertical
rotation angle: 330°, horizontal and vertical rotation
speed: 4r/min, protection grade IP66, can be operated by remote control and
wire control, and is suitable for night working environment. The lamp head
power of the lamp is 150W*2, working voltage: AC220V, luminous flux: 22000LM,
working current of the lamp: 15A. Equipment working environment temperature:
-30°~55, with wind resistance of 66km/h. |
8 | Power output socket | According to the
actual charging needs of customers, corresponding power output interfaces are
arranged at appropriate locations in the vehicle to meet 220V/380V power
supply. |
9 | G | There is a special
place for storing grounding wires and grounding piles on the vehicle; 1
grounding wire with matching copper noses on both ends, 10 meters in length
and 25mm in diameter ; 1 grounding pile with a length of 600mm, a
diameter of 16mm and a sharp end at one end and a fishtail screw at one end.
. |
10 | Firefighting | The vehicle is
equipped with 2 portable MFZ/ABC4 ammonium phosphate dry powder fire
extinguishers. Place it at the rear of the carriage, 300mm away from the rear
door of the box to ensure the fastest access. |
11 | other request | Comes with unit tools and chassis tools |
