Foton Pilot H2 Cleaning and Suction Truck

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

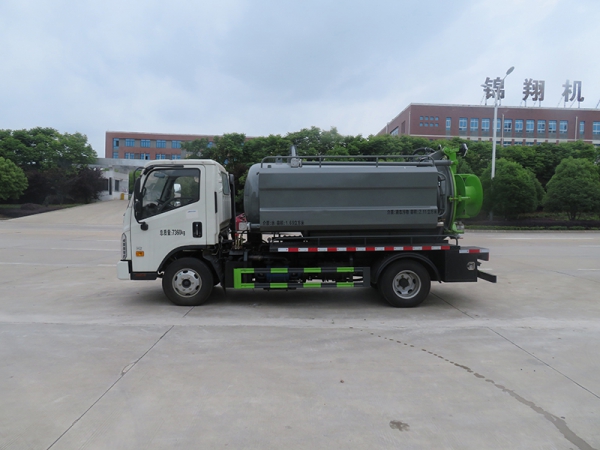

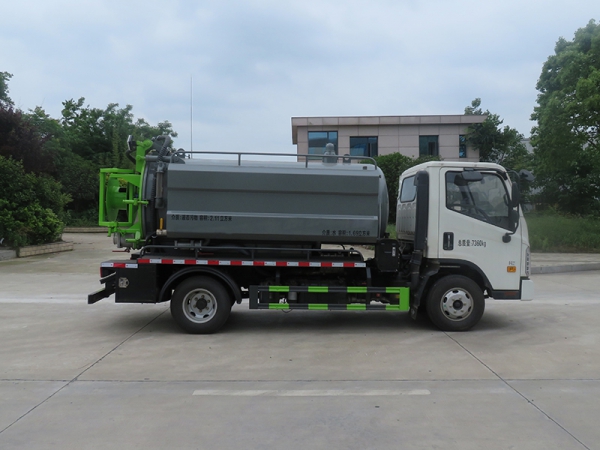

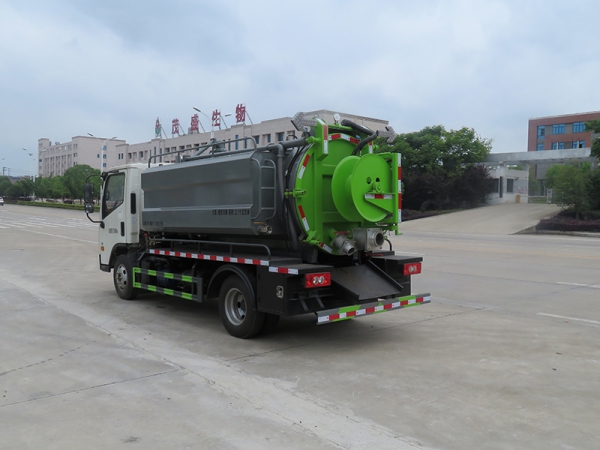

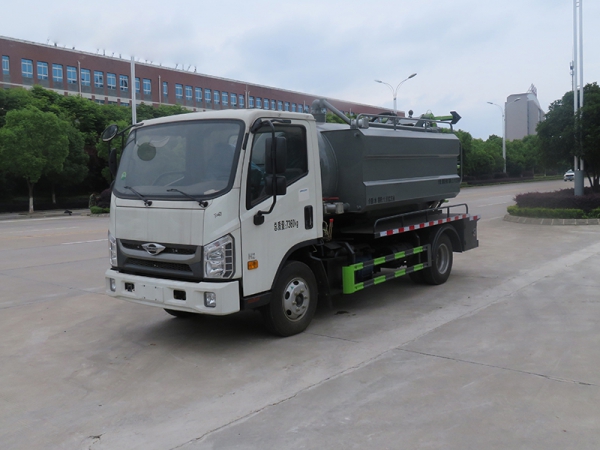

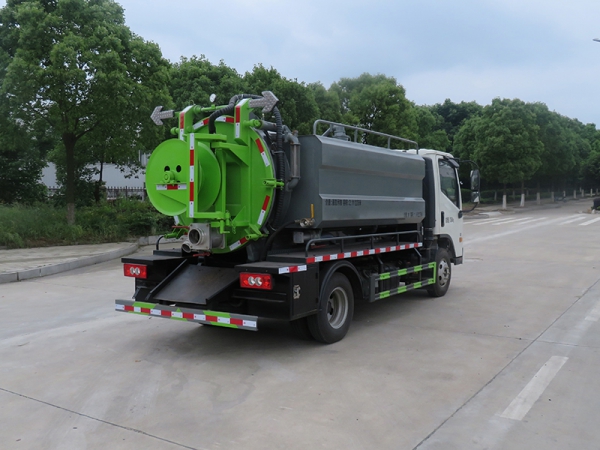

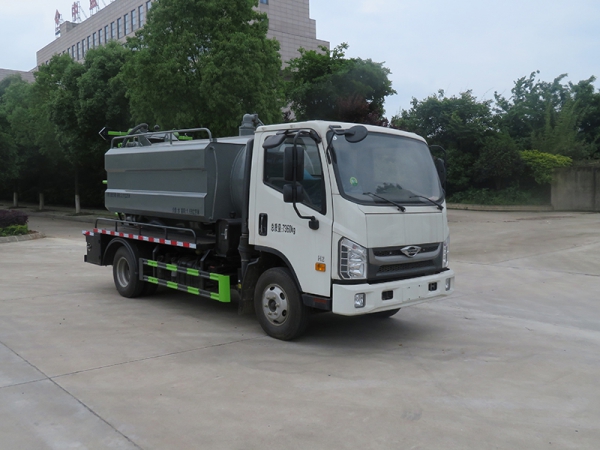

Foton Pilot H2 Cleaning and Suction Truck-Product Pictures

Foton Pilot H2 Cleaning and Suction Truck Foton Pilot H2 Cleaning and Suction Truck Foton Pilot H2 Cleaning and Suction Truck Foton Pilot H2 Cleaning and Suction Truck Foton Pilot H2 Cleaning and Suction Truck Foton Pilot H2 Cleaning and Suction Truck

Foton Pilot H2 Cleaning and Suction Truck-Product Parameters

TechnicalData Sheet









Chassis

Overall size :

5998mmx2100mmx2650mm

Total mass :

7360kg

Rated load quality :

1615kg

Curb weight :

5550kg

Chassis model:

BJ1076VEJDA-51

Type:

4×2 , flat-head diesel vehicle

engine model:

Q28-130C60

Engine maximum power :

96kW

Tail gas emissions:

Euro 3

Wheelbase:

3360mm



Cleaning part

Clean water tank volume:

2m³

Tank thickness:

6mm

High pressure pump brand

Yifeng SK-9

Flow volume / pressure

267L/170Bar

High pressure hose inner diameter

15mm

High pressure hose length

100m

nozzle

Ceramic nozzle four-piece set

Protection System

Low water electronic alarm









absorb dirt

Sewage tank capacity:

4m 3

Sewage tank cross- sectional shape

round

Tank thickness

6mm

Vacuum pump model:

Yifeng SK-9

Vacuum pump flow rate :

1200m³/h

When the tank is full

≤5min

suction lift

≥8m

Inlet / discharge valve port diameter

5H / 6H

part

How to lift the tank

Front cylinder lift

Rear tank door opening method

Hydraulic opening

Protection System

Four-level protection system ( first -level anti-overflow valve, cyclonic second - level stop valve, anti-overflow cut-off valve electronics

Anti-overflow alarm)

swivel boom

Can be moved forward and backward , up and down , left and right for remote control operation


sewage suction pipe



16m

Control system

Integrated electric control box, manual / remote control, simple and convenient , low learning cost
