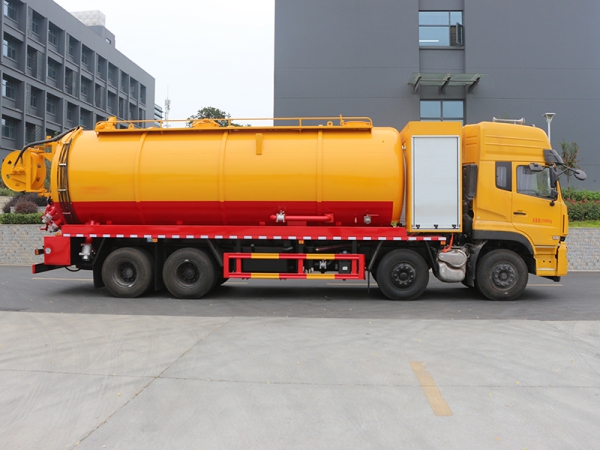

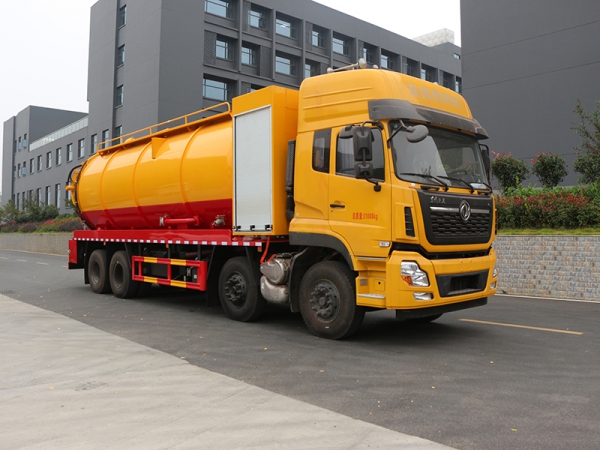

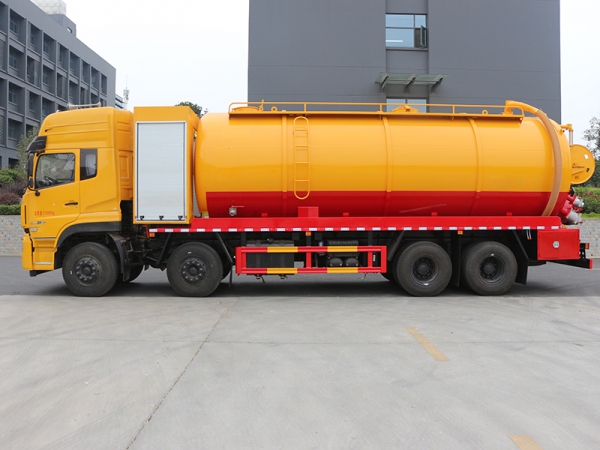

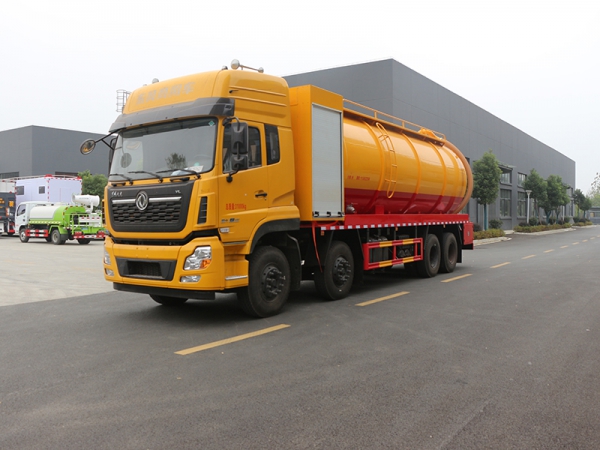

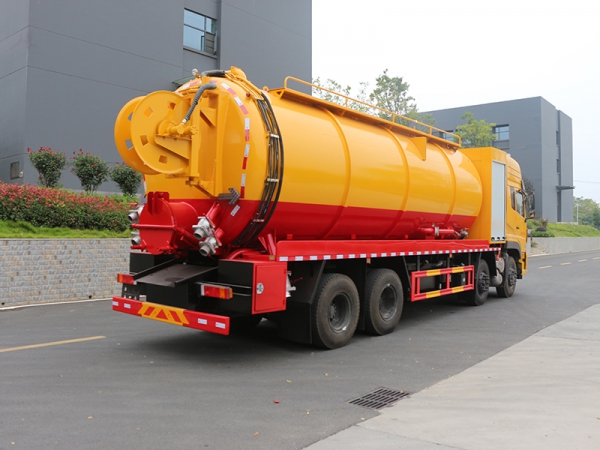

Dongfeng Tianlong front four rear eight cleaning and suction trucks

Total mass :

31000kg

Rated load quality :

11170kg

Curb weight :

19700kg

Chassis model:

DFH1310A12

Type:

8×4 , flat-head diesel vehicle

engine model:

MC07.34-60

Engine maximum power :

324kW

Tail gas emissions:

Euro 3

Wheelbase:

2050+4400+1350mm

Cleaning part

Clean water tank volume:

11m³

Tank thickness:

8mm

High pressure pump brand

Yifeng

Flow volume / pressure

300L/200Bar

High pressure hose inner diameter

22mm

High pressure hose length

100m

nozzle

Ceramic nozzle four-piece set

Protection System

Low water electronic alarm

absorb dirt

Sewage tank capacity:

22m 3

Sewage tank cross- sectional shape

round

Tank thickness

8mm

Vacuum pump model:

Yifeng DB22

Vacuum pump flow rate :

3000m³/h

When the tank is full

≤5min

suction lift

≥ 20m

Inlet / discharge valve port diameter

5H / 6H

Rear tank door opening method

Hydraulic opening

Protection System

Four-level protection system ( first -level anti-overflow valve, cyclonic second - level stop valve, anti-overflow cut-off valve electronics

Anti-overflow alarm)

swivel boom

Can be moved forward and backward , up and down , left and right for remote control operation

sewage suction pipe

16m

Control system

Integrated electric control box, manual / remote control, simple and convenient , low learning cost
