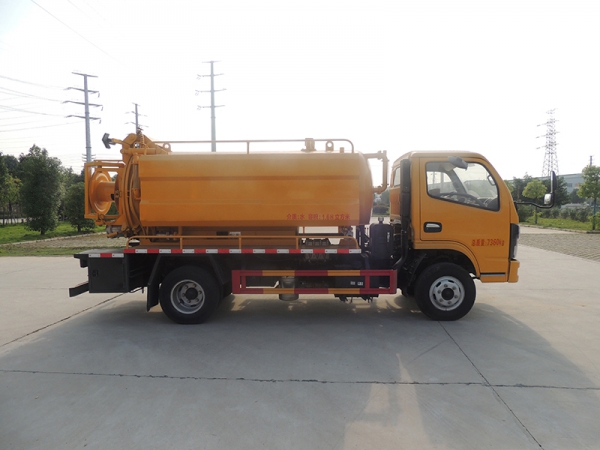

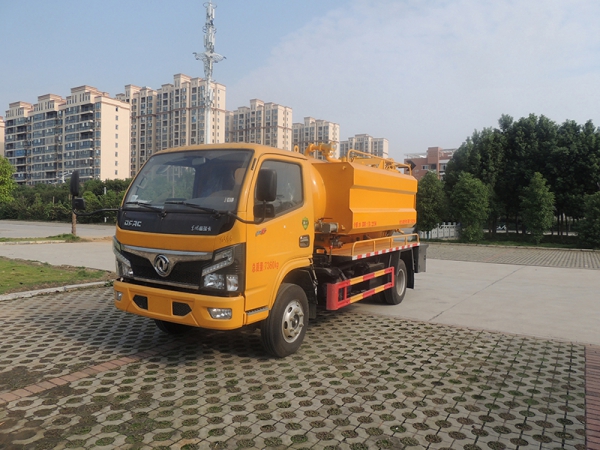

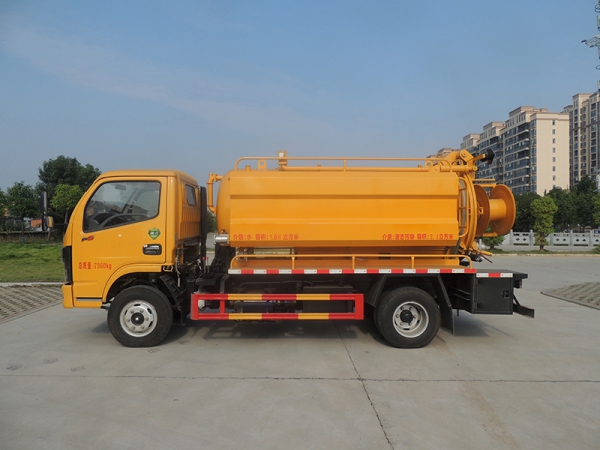

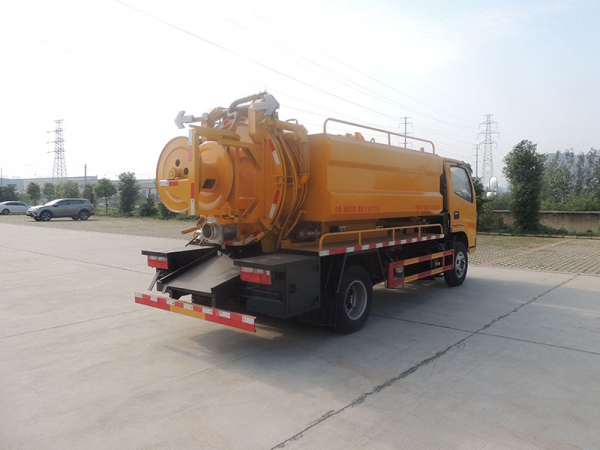

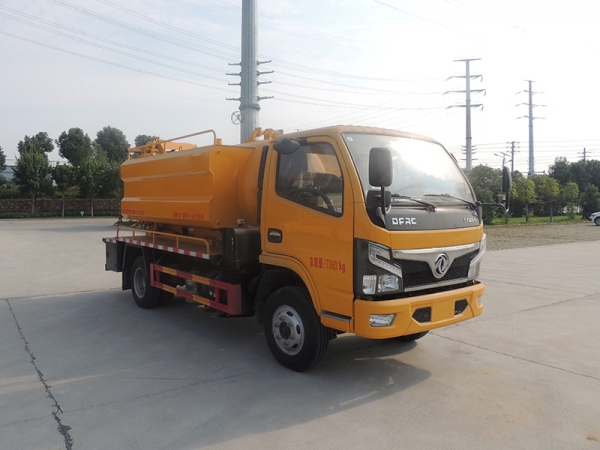

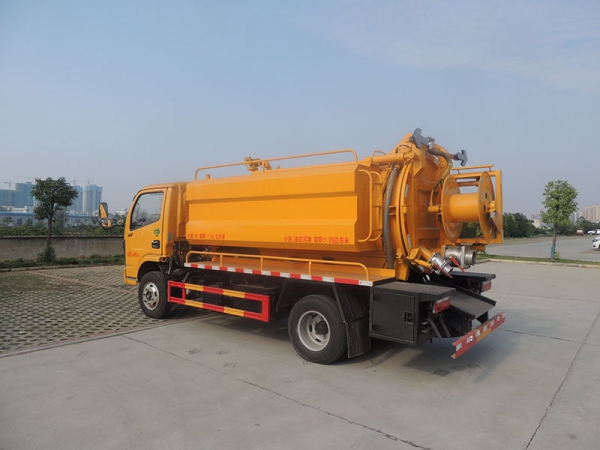

Dongfeng 6 cubic meters cleaning and suction truck

Total mass :

7360kg

Rated load quality :

2180kg

Curb weight :

5050kg

Chassis model:

EQ1075SJ3CDF

Type:

4×2 , flat-head diesel vehicle

engine model:

D20TCIF1

Engine maximum power :

93kW

Tail gas emissions:

Euro 3

Wheelbase:

3360mm

Cleaning part

Clean water tank volume:

2m³

Tank thickness:

6mm

High pressure pump brand

Yifeng SK-9

Flow volume / pressure

267L/170Bar

High pressure hose inner diameter

15mm

High pressure hose length

100m

nozzle

Ceramic nozzle four-piece set

Protection System

Low water electronic alarm

absorb dirt

Sewage tank capacity:

4m 3

Sewage tank cross- sectional shape

round

Tank thickness

6mm

Vacuum pump model:

Yifeng SK-9

Vacuum pump flow rate :

1200m³/h

When the tank is full

≤5min

suction lift

≥8m

Inlet / discharge valve port diameter

5H / 6H

Rear tank door opening method

Hydraulic opening

Protection System

Four-level protection system ( first -level anti-overflow valve, cyclonic second - level stop valve, anti-overflow cut-off valve electronics

Anti-overflow alarm)

swivel boom

Can be moved forward and backward , up and down , left and right for remote control operation

sewage suction pipe

16m

Control system

Integrated electric control box, manual / remote control, simple and convenient , low learning cost
