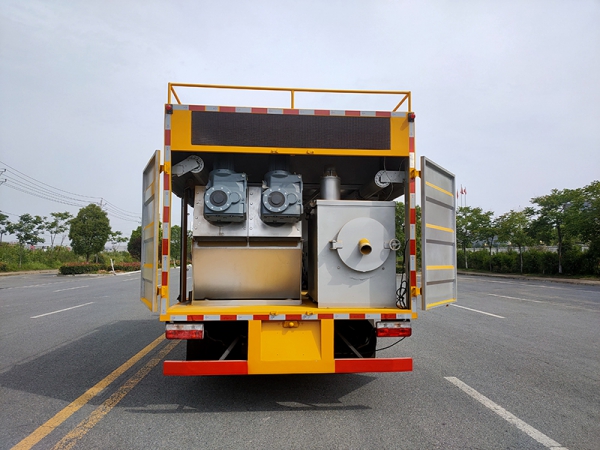

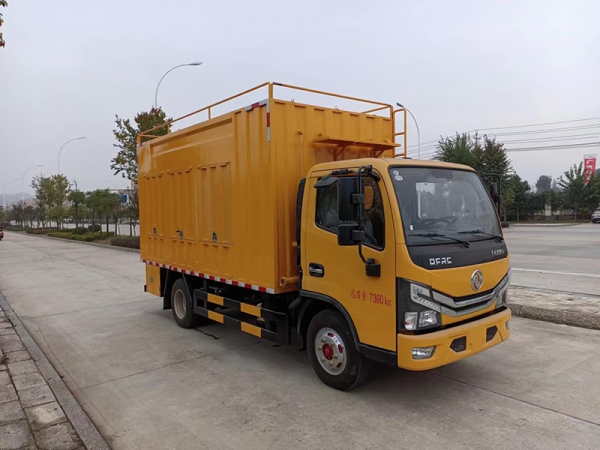

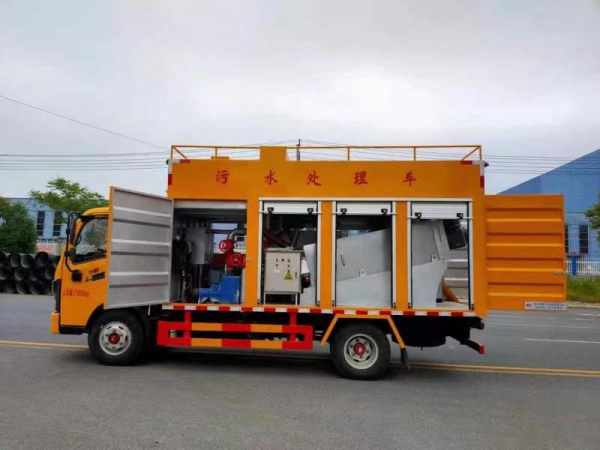

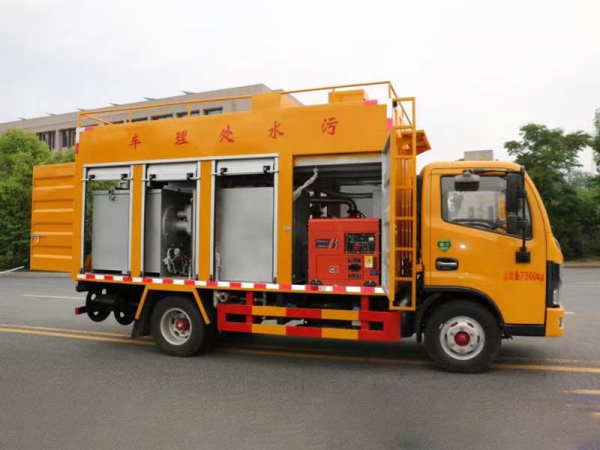

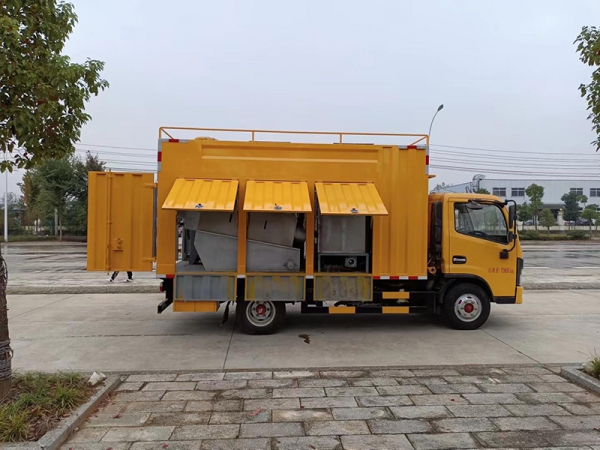

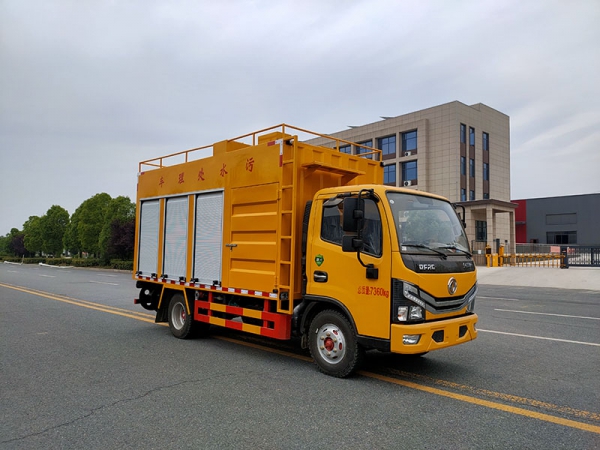

Dollywood Purification Vehicle

1

Car exterior dimensions (length × width × height)

6500 × 2350 × 3 3 00mm

2

total mass

7360KG

3

maximum  speed

110km/h

4

Wheelbase

3308mm

5

engine

YCY30140-60

6

power

103kW

7

Displacement

2970ml

8

gearbox

Wanliyang  6th gear

9

High  pressure pumps:

plunger pump

    Brand :  Shuangyao/Pinfu

    Flow :215L/min

Maximum working pressure: 21Mpa

1 0

Snail  stacking machine:

    Model : 302

    Material  : Stainless steel

Processing  speed: 15-30m³/h

1 1

Generator  set:

Rated power: 5 6 kw

Vacuum pump: 11kw

    Model : 2BVA5121

    Type : water circulation vacuum pump

Processing speed: direct pumping and discharge  60-100m³/h

    Type : Self-priming pump

1 2

sewage  suction pipe

φ102mm plastic  hose

1 3

Sewage  suction pipe quick connector

φ102mm

1 4

High  pressure pipe

φ19

1 5

High  pressure nozzle

φ19
