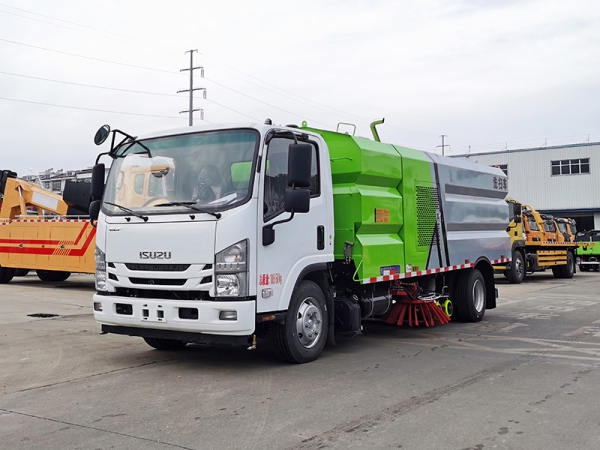

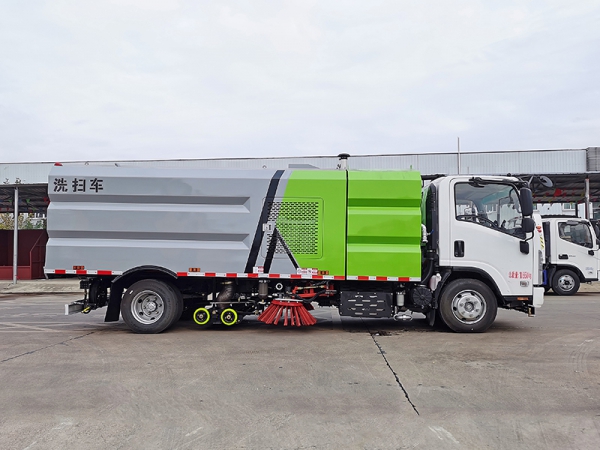

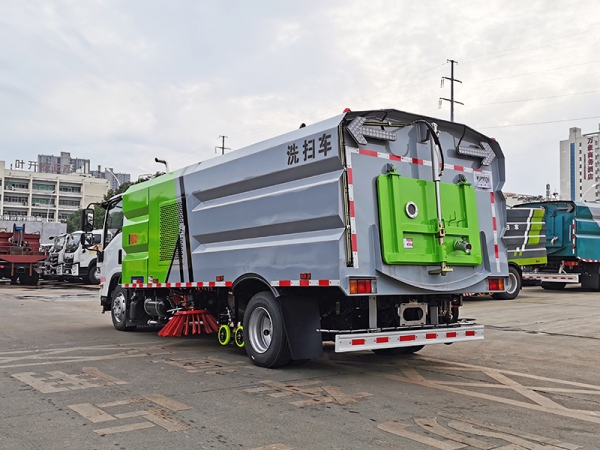

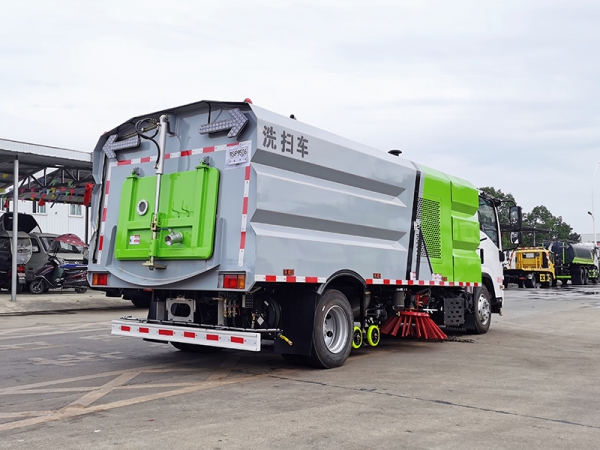

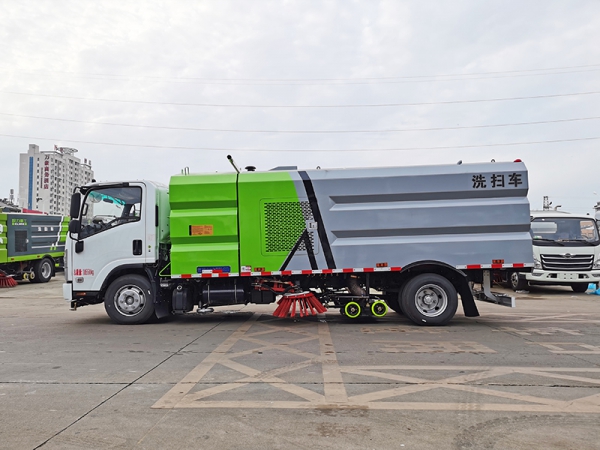

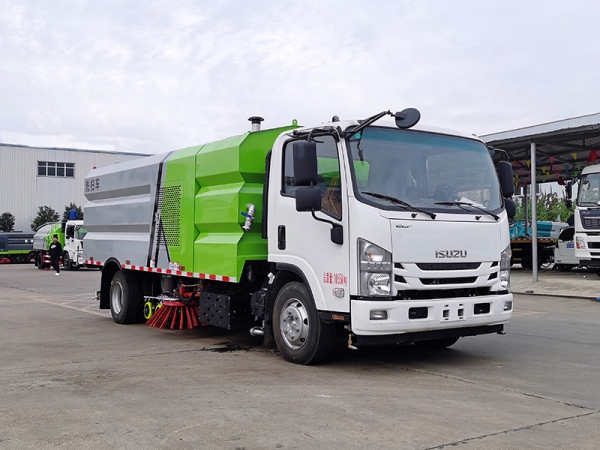

Isuzu 8 cu.m. Sweeper

Wheelbase(mm)

38  15

tire

7.50R16LT  14PR

tire quantity

7(including  1 spare tire)

Wheelbase

Front  wheel(mm)

1640

Rear  wheel(mm)

1655

Rated occupants

3  people

Front suspension/rear  suspension (mm)

1120/2115

approach angle

2  3 °

departure angle

9  °

Height from the ground (mm)

320

Rated load mass (kg)

1185

Curb weight (kg)

6900

Maximum total mass (kg)

8280

Dedicated performance  parameters

Bin  volume (m ³ )

4  (stainless steel material)

Clean  water tank volume (m ³ )

4  (stainless steel material)

Cleaning  width (mm)

2800-3200

Cleaning  operation speed (km/h)

3-15

Cleaning  operation speed (km/h)

15-20

Maximum  cleaning capacity (m ² /h)

48000

suction  capacity

Density  (g/cm ³ )

2.0

Mass(kg)

1.5

Suction  particle size (mm)

≥100

Garbage  bin dumping angle

≥45°

Cleaning  efficiency

≥96%

Operation  noise (db)

< 88 Comply  with GB7258 regulations
