Central China regional sanitation vehicle base, boutique sanitation
——More than 500 sanitation trucks in stock

road sweeper sweeper vacuum truck



JAC Junling 8 cubic meters sweeper

Get a quote and program for this model

reserve

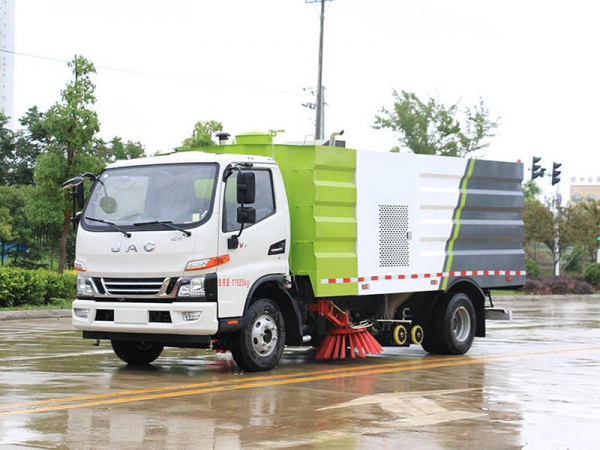

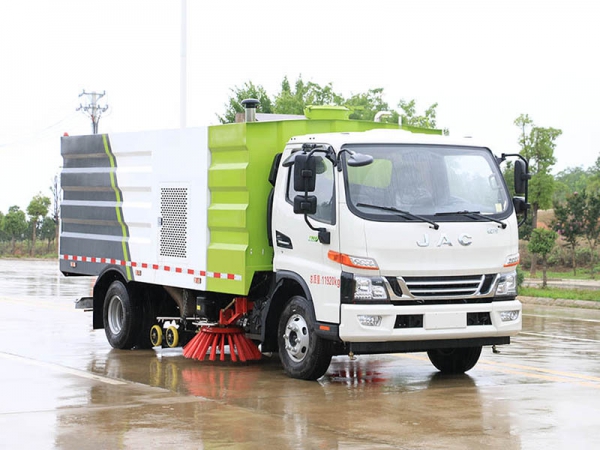

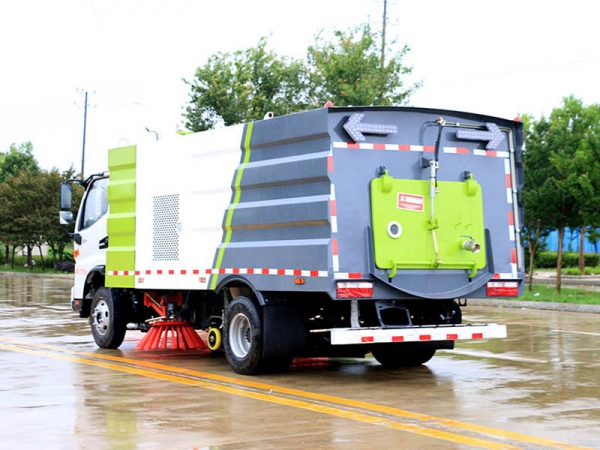

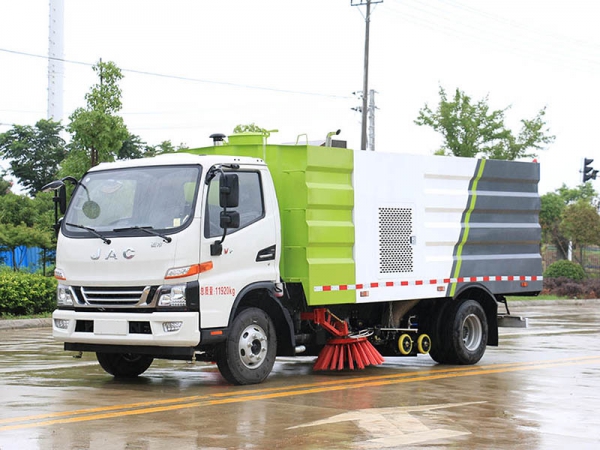

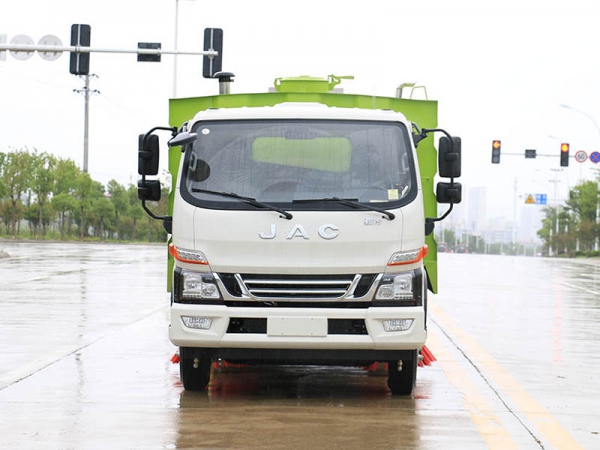

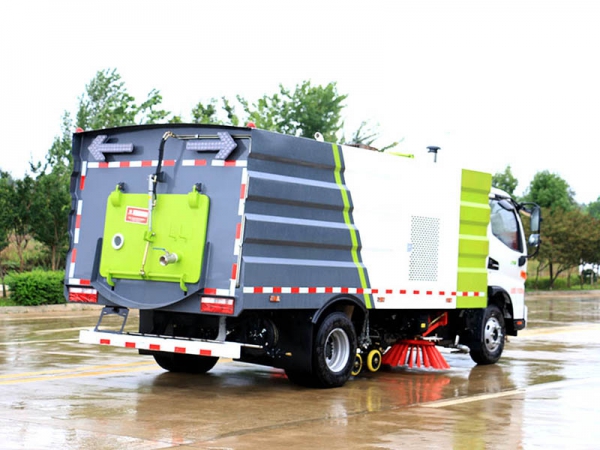

JAC Junling 8 cubic meters sweeper-Product Pictures

vehicle basic parameter	Overall dimensions (length x width x height) mm		71 00* 238 0* 27 0 0
	Wheelbase(mm)		38 45
	tire		245/70R19.5,8.25R20
	tire quantity		7(including 1 spare tire)
	Wheelbase	Front wheel(mm)	1705
		Rear wheel(mm)	1785
	Rated occupants		3 people
	Front suspension/rear suspension (mm)		1075/2180
	approach angle		20 °
	departure angle		28 °
	Height from the ground (mm)		320
	Rated load mass (kg)		4355
	Curb weight (kg)		7120
	Maximum total mass (kg)		11920

Dedicated performance parameters	Bin volume (m ³)		4 (stainless steel material)
	Clean water tank volume (m ³)		4 (stainless steel material)
	Cleaning width (mm)		2800-3200
	Cleaning operation speed (km/h)		3-15
	Cleaning operation speed (km/h)		15-20
	Maximum cleaning capacity (m ²/h)		48000
	suction capacity	Density (g/cm ³)	2.0
		Mass(kg)	1.5
		Suction particle size (mm)	≥100
	Garbage bin dumping angle		≥45°
	Cleaning efficiency		≥96%
	Operation noise (db)		< 88 Comply with GB7258 regulations
