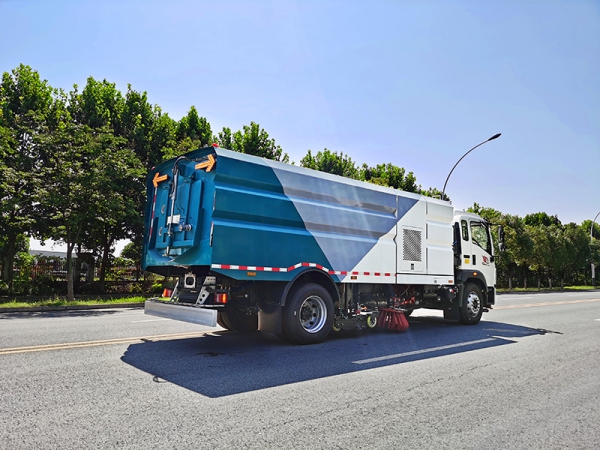

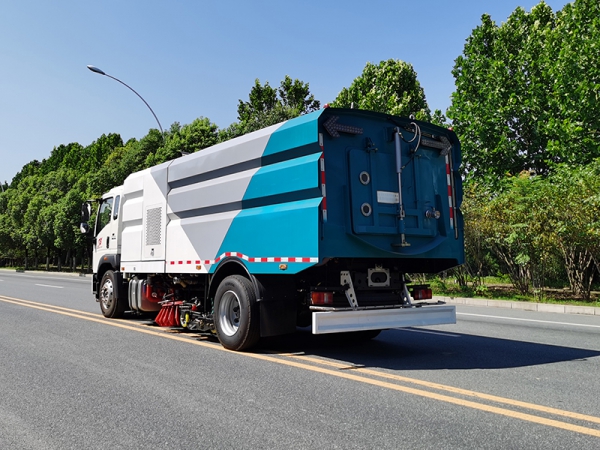

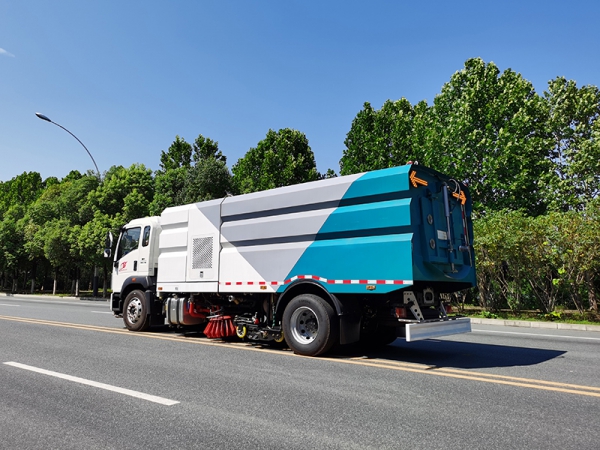

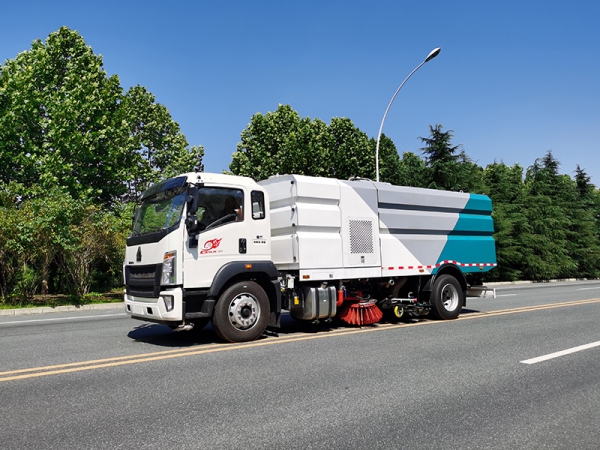

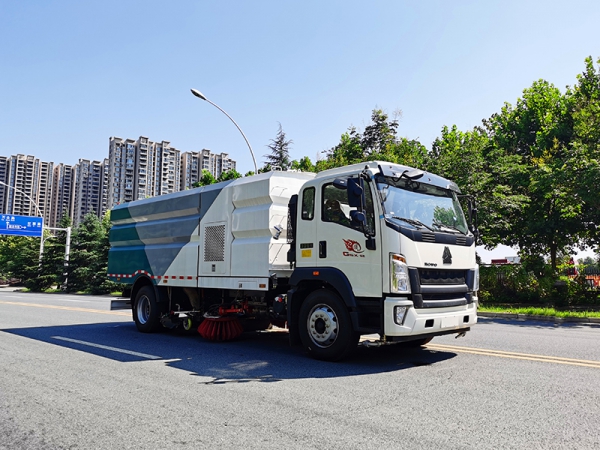

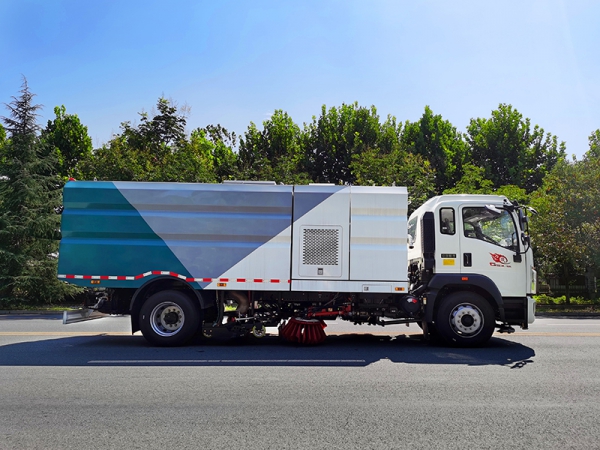

Overall
information of SINOTRUK sweeper truck |
Main functions of the cleaning and
sweeping vehicle | Ø The
sweeper truck has the functions of road cleaning, pavement cleaning, curb
cleaning, curb and curb facade washing, low-pressure washing, spray dust
removal and other functions. There are various operating modes to choose
from, such as "full sweep", "left sweep", "right
sweep", "full sweep", "left sweep" and "right
sweep". Select the "full cleaning and sweeping" mode to clean
squares and roads. The cleaning efficiency is high and the effect is good,
with a cleaning rate of more than 90%. Select the "Left Sweeping"
or "Right Sweeping" mode to clean the road surface, curbs, and curb
stone facades. When you need to carry out road sweeping or road cleaning
operations, you can select the road sweeping mode. When spray dust removal is
required, the spray device can be turned on to carry out spray dust removal
operations. It can perform low-pressure washing operations on the road like a
sprinkler truck. |
scenes to be used | Ø CLW5180TXSZ6
sweeper truck is suitable for mechanized cleaning, sweeping, spray dust
reduction and other cleaning operations on urban roads, highways, squares,
airports, docks, tunnels, bridges, isolation walls, curbs and curb stone
facades. |
Components | Ø of
the SINOTRUK ZZ1187K561DF1Z National VI Category II vehicle is modified, and
an auxiliary engine, a fan, a high-pressure water pump, a clean water tank, a
garbage bin, a left and right vertical sweeper , a wide suction nozzle with a
water spray rod, a low-pressure flushing system, and a sweeping dust
reduction system are installed . , hydraulic system, special device
electronic control system and sub-frame are modified. |
Auxiliary engine configuration | Ø The
auxiliary engine drives the fan and high-pressure water pump and adopts
Cummins 170-horsepower auxiliary engine. The fan uses an 8.0 high-pressure
centrifugal fan, which has high efficiency and large air volume. The maximum
air volume reaches 23500m 3 /h. The high-pressure water pump
adopts the internationally renowned GTM-GF36 plunger pump, which has suitable
flow rate and high pressure, and the maximum allowed pressure is up to 10MPa.
|
Clean water tank information | The clean water tank makes full use
of the vehicle space and has a large volume of 9m 3 . The garbage
bin adopts a single-layer 304 stainless steel structure, with tipping and
unloading features and a high-pressure self-cleaning device. The
self-cleaning device can help unload the trash bin and clean the inside of
the trash bin when unloading. |
Scan information left and right | The left and right vertical sweeps
are single scanning disks, which reduces the number of sweeps and brush
consumption, and can reduce the cost of use. The left and right vertical
scans are controlled separately, enabling different operating modes such as
left scan, right scan and full scan. The suction width of the wide suction
nozzle reaches 2418mm, ensuring that the total working width is greater than
3.5mm. 4 height-adjustable suction nozzle wheels can adjust and ensure a
reasonable gap between the suction nozzle and the road surface in various
aspects. The suction nozzle has a built-in high-pressure water spray rod, and
as many high-pressure washing nozzles are arranged inside the suction nozzle
as possible, which not only has a good cleaning effect, but also minimizes
secondary pollution caused by high-pressure water airflow flushing up dirt. |
Flush
information left and right | The left and right water spray rods
are installed on the suction cups and rise and fall with the suction cups.
The structure is simple and compact, ensuring that the height of the water
spray rods from the ground is fixed to achieve the best cleaning effect. The
open hydraulic system drives mechanical actions such as lifting and lowering
the left and right vertical sweepers , rotating the left and right sweep
disks, lifting and lowering the suction nozzles, opening and closing the rear
door of the garbage bin, and tipping and resetting the garbage bin. |
low pressure flushing | Ø The
power take-off on the chassis gearbox side drives the low-pressure water pump
to realize the low-pressure flushing function of the sprinkler truck and
one-touch start and stop operations.
|
