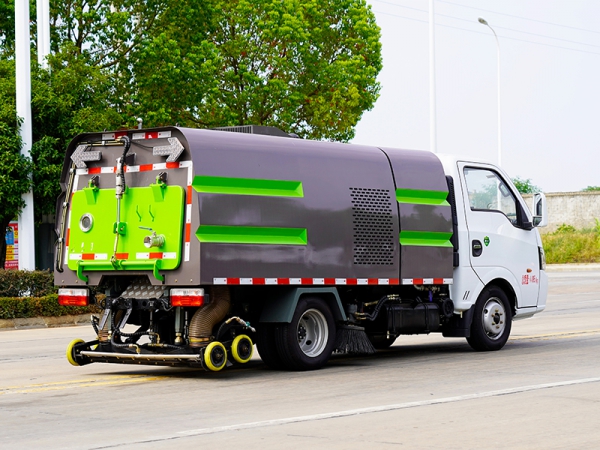

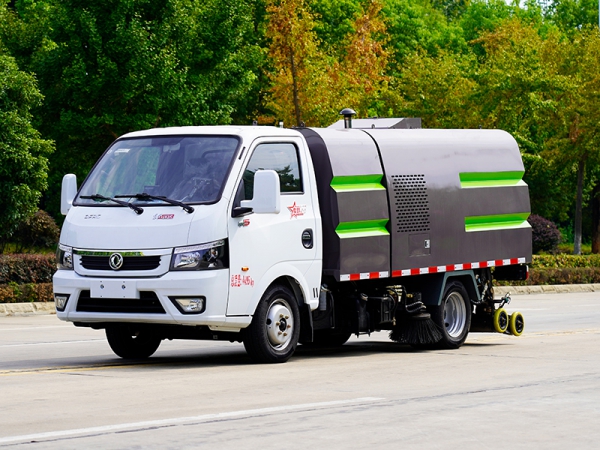

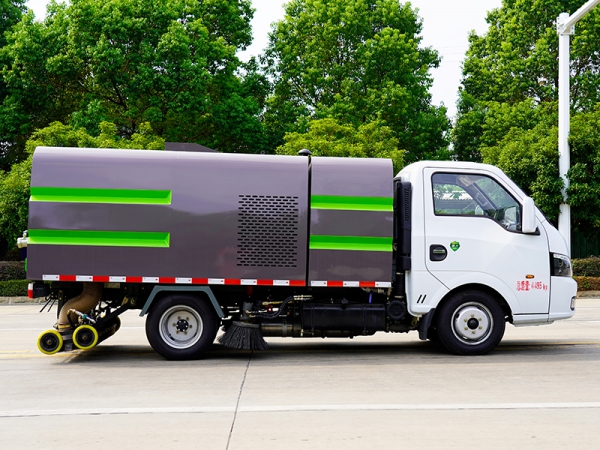

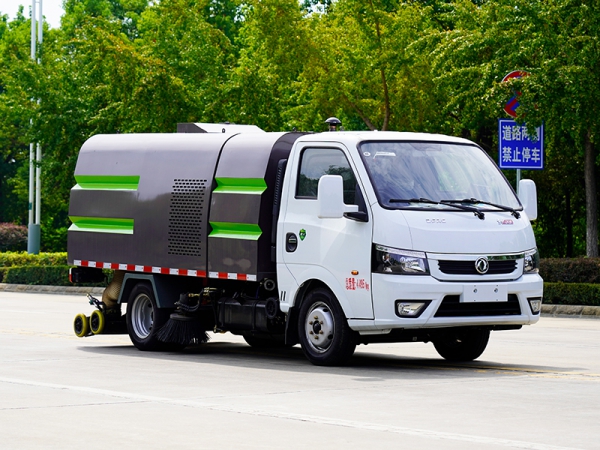

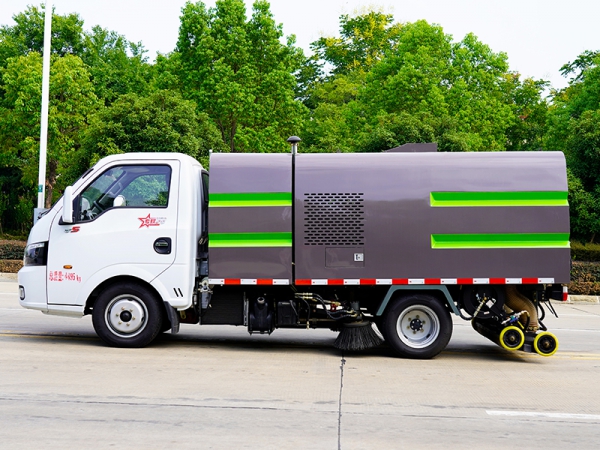

Dongfeng Tuyi cleaning and sweeping truck
【Vehicle Technical Parameters】 |
Product trademark | 5040TXS6QZ | product name | Dongfeng Tuyi cleaning and sweeping truck |
cab | 1650/Single row cab | Front seat passenger (person) | 2 |
gearbox | 5 speed gearbox | Overall dimensions (mm) | 5620X1700X2300 |
tire | 185R14 tubeless tire | Front suspension/rear suspension (mm) | 1190/1630 |
Axle load (kg) | 1650/2845 | Maximum speed (km/h) | 110 |
[Chassis technical parameters] |
Base model | EQ1045SJ16DC | Chassis name | Truck chassis |
Product trademark | Dongfeng brand | Company Name | Dongfeng Motor Co., Ltd. |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2800 |
Number of spring leaves | 3/5 | Front track | 1369, 1387 |
Fuel type | diesel fuel | rear wheelbase | 1242, 1342 |
engine model | Engine manufacturer | Displacement (ml) | Power (kw)/horsepower ( ps ) |
Q23-95E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 70/95 |
other | Standard
features include power steering, front disc brakes, central door locks,
electric doors and windows, cruise control, Bluetooth phone , LED daytime
running lights, ABS, and air conditioning; |
【Technical parameters of upper body】 |
host want Technique Technique match Place | project | Standard
configuration | Remark |
Water tank capacity | 1.5 cubic | Stainless steel |
Trash bin capacity | 1.8 cubic | Stainless steel
material |
Auxiliary engine
model | Yunnei | 57 HP |
Fan model | 5.0 | High pressure
centrifugal fan |
Water pump model | GPV-2821 |
|
Maximum pressure (
mpa ) | 15 |
|
High pressure pump
displacement | 50L/min |
|
do Industry ginseng number | Working speed
(km/h) | 3.5~15kw/h | Depends on road
conditions |
Working width (mm) | 2050 |
|
Working area (m2) | 7175~30750 | Depends on working
speed |
Single operation
time | 35 to 45 minutes | Maximum operating
time with full water and full load |
Maximum inhaled
particles | 50mm |
|
Assignment style | Suction and sweep
combination |
|
Trash bin dumping
angle | >42 |
|
Product information
introduction |
Features | A small road sweeping vehicle that has the dual
functions of a road sweeping vehicle and a road cleaning vehicle. There is no
secondary dust emission during cleaning operations. When cleaning roads, road
sewage can also be recycled to prevent secondary pollution of the road by
sewage. The vehicle is miniaturized, the control system is simple
(single-button operation) and the threshold for use is low, making it
convenient for female drivers or drivers with a C driver's license to operate
the vehicle. |
The main function | Daily cleaning of inner city streets, property
communities, factories, and squares. This sweeping vehicle has a short
wheelbase, a small turning radius, a narrow body width , a low height, and a
light weight. It can penetrate narrow roads inside the street. At the same
time, the vehicle is equipped with a high-pressure cleaning function and is
equipped with a high-pressure cleaning gun. The high-pressure cleaning gun
can also be used to wash roadside flower beds, guardrails, railings, and roadside
billboards. |
working principle | The auxiliary engine drives the fan and
high-pressure pump to start working, and high-pressure water spraying,
suction and sweeping are combined. Maximum cleaning width: 2050mm. |
Cleaning system | The cleaning system consists of left and right
vertical sweeps , cycloidal motors, and sweeping disks. Two operating modes
for the entire vehicle (full scan and right scan). |
High pressure water spray system | The entire vehicle water spray system consists of a
high-pressure gun, suction cup water spray, and suction cup left and right
water spray systems. The high-pressure gun pipeline is equipped with a
1.5-meter rotating swing arm. The left and right water spray systems of the
suction cups use a single nozzle for flushing, which can be manually opened
and operated at the same time, or individually controlled or completely
closed to extend the vehicle's operating time. |
High pressure gun rotating swing arm | A 1.5-meter rotating swing wall is installed on the
top of the garbage bin. The rotating swing arm can reduce the friction
between the pipeline and the ground, reduce the wear of the pipeline and
extend the service life of the pipeline. It can also easily cross large
obstacles. And increase the use radius of the high-pressure gun |
