Shaanqi Xander Wing 6 Sweeper Zhisheng

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

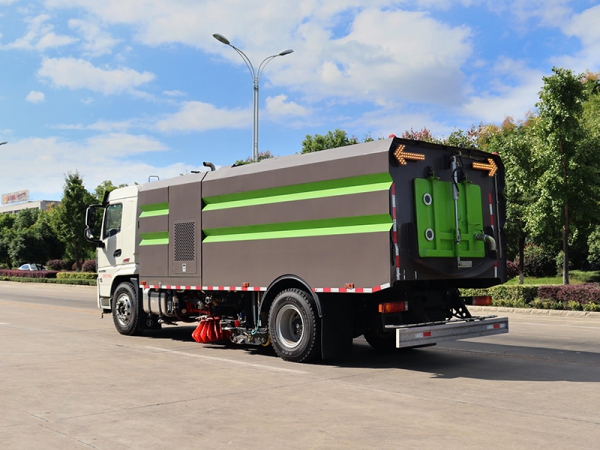

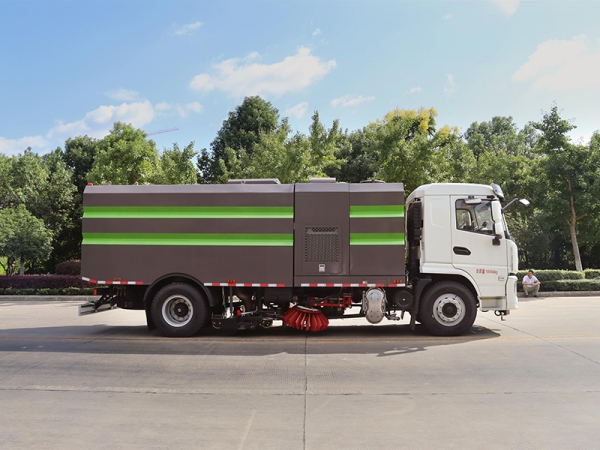

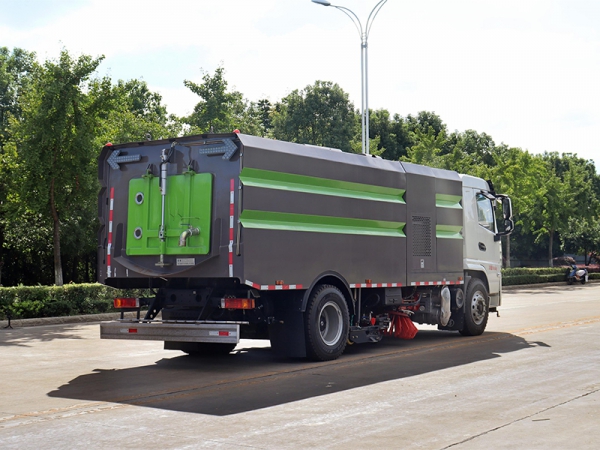

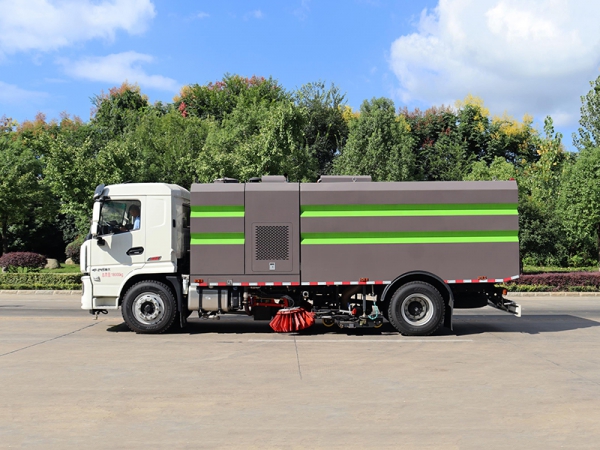

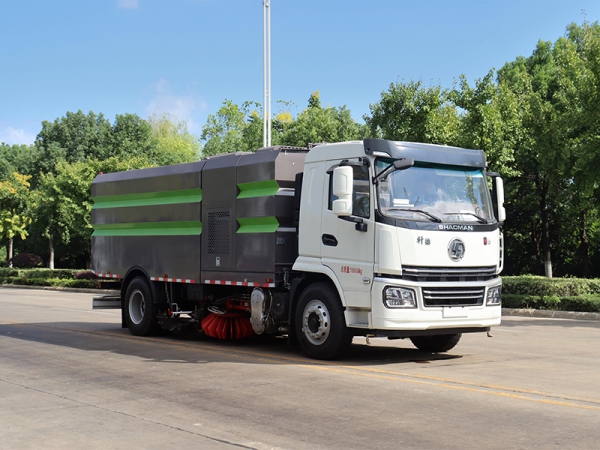

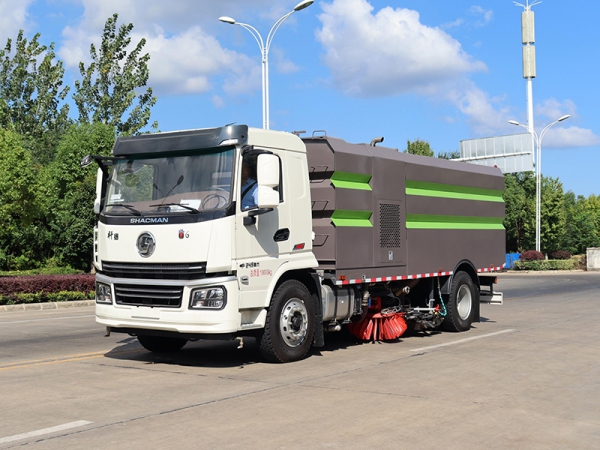

Shaanqi Xander Wing 6 Sweeper Zhisheng-Product Pictures

Shaanqi Xander Wing 6 Sweeper Zhisheng Shaanqi Xander Wing 6 Sweeper Zhisheng Shaanqi Xander Wing 6 Sweeper Zhisheng Shaanqi Xander Wing 6 Sweeper Zhisheng Shaanqi Xander Wing 6 Sweeper Zhisheng Shaanqi Xander Wing 6 Sweeper Zhisheng

Shaanqi Xander Wing 6 Sweeper Zhisheng-Product Parameters

Shaanxi Automobile Washing and Sweeping Truck Parameters

project

Main  performance parameters

car  model

Shaanxi  Automobile

Emission  Standards

GB3847-2005,  GB17691-2018 Country VI

hair

move

machine

Host

Chassis  engine model and manufacturer

B6.2NS6B210

Cummins  Engine Co., Ltd.

Power(kw)

154

Horsepower(  ps )

210

Displacement(ml)

6200

Auxiliary  engine

Cleaning  engine models and manufacturers

B170

Cummins  170 HP supercharged auxiliary engine

Power(kw)

125

Horsepower(  ps )

170

Displacement(ml)

5900

Fuel  type

No.  0 light diesel oil (shares diesel tank with chassis)

vehicle

basic

parameter

Overall  dimensions (length x width x height) mm

★ 8550*2480*3130

Wheelbase(mm)

5000

tire

275/80R22.5  18PR

tire  quantity

7(including  1 spare tire)

Wheelbase

Front  wheel(mm)

1876

Rear  wheel(mm)

1820

Rated  occupants

3  people

Front  suspension/rear suspension (mm)

1430/2220

approach  angle

17°

departure  angle

25°

Height  from the ground (mm)

320

Rated  load mass (kg)

5410

Curb  weight (kg)

12460

Maximum  total mass (kg)

18000





Dedicated  performance parameters

Bin  volume (m 3 )

7  (stainless steel material)

Clean  water tank volume (m 3 )

9  (stainless steel material)

Cleaning  width (mm)

2800-3200

Cleaning  operation speed (km/h)

3-15

Cleaning  operation speed (km/h)

15-20

Maximum  cleaning capacity (m 2 /h)

48000

suction  capacity

Density  (g/cm 3 )

2.0

Mass(kg)

1.5

Suction  particle size (mm)

≥100

Garbage bin dumping angle

≥45°

Cleaning efficiency

≥96%

Operation noise ( db )

< 88 Comply with GB7258 regulations

Driving  performance parameters

Drive type

4×2 rear axle drive

Suspension type

leaf spring

Number  of leaf springs (front/rear)

8/10+7

Braking  type

Dual  circuit pneumatic brake, drum type

Braking distance (full load 30km/h)

≤10m

Maximum speed (km/h)

99

Minimum turning radius (m)

8

Maximum grade

≥30%

clutch system

Single-plate dry diaphragm spring clutch,  hydraulically operated

transmission system

Mechanical 5-speed transmission with  synchronizer, manual

Engine fuel consumption

Travel (L/100km)

Homework(L/h)

Operation(L/10000m 2 )

≤14

≤8

≤5

Dust  reduction system

water  spray form

low  pressure mist

Main  components

Imported  high-pressure pumps, water filters, pipelines, stainless steel spray racks,  high-pressure nozzles, etc.

High  pressure pumps

GTM

Installation  location

Cleaning  and dust reduction

Scan the disk left and right

Vacuuming  and dust reduction

Inside the suction cup suction port

Control  type

Electronic control, one-button operation










Hydraulic  system

Type

Open,  centrally operated with electric control

Main  components

Gear  pumps, cycloidal motors, hydraulic cylinders, solenoid valves, manifolds,  high-pressure pumps , etc.

cycloid  motor

Sanyo  motor

gear  pumps

Changyuan  Machinery

Hydraulic  cylinder

Hyperius

Hydraulic  cylinder seals

Dingji

Hydraulic oil pipe

Tianhe

Solenoid  valve group

Hyperius

Shockproof  pressure gauge

IMT

Return  oil filter

Sophie  Ma

System  relief pressure

MPa

10-12

Hydraulic  tank volume

L

≥60

Electrical  system

System composition

It is composed of chassis circuit, auxiliary  engine electrical part and special working device operation control circuit.

Chassis vehicle system voltage (V)

twenty four
