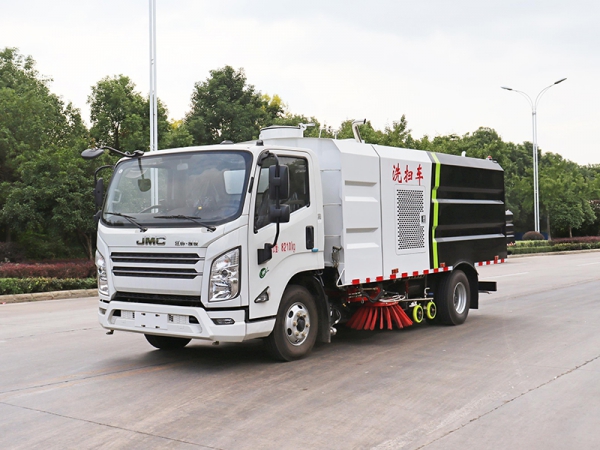

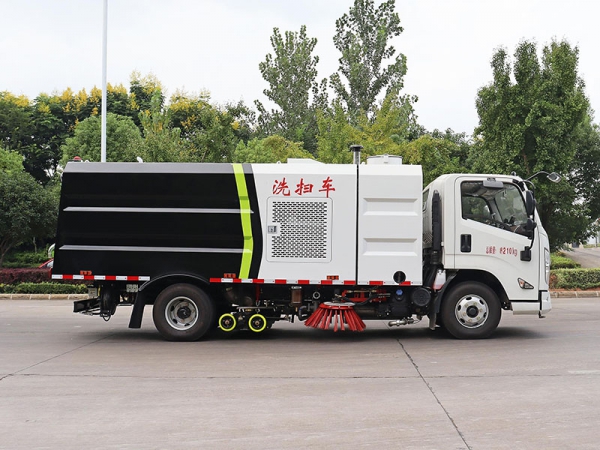

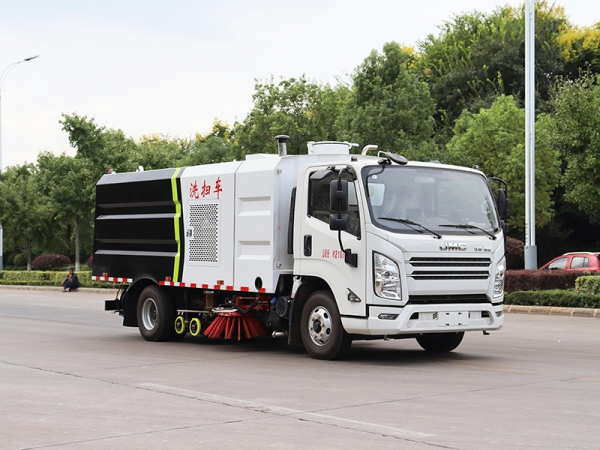

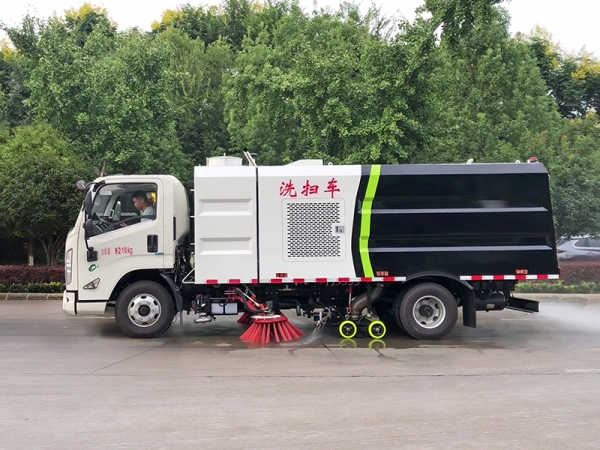

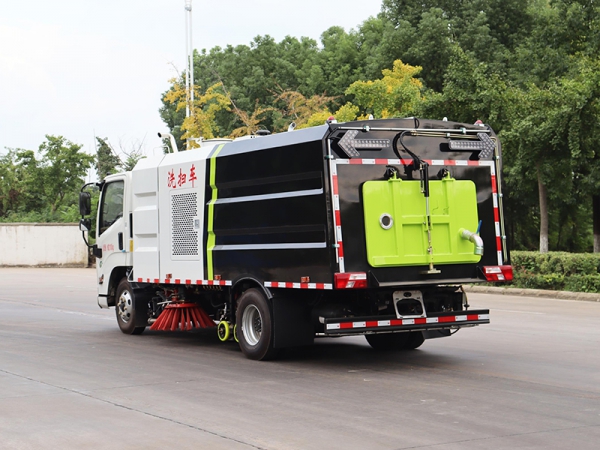

JIANGLING Sweeper

car model

Jiangling

Emission Standards

GB17691-2018 Country VI

hair

move

machine

Host

Chassis engine model

Yunnei D30TCIF2

Power(kw)

120

Horsepower(ps)

164

Displacement(ml)

2977

Auxiliary engine

Cleaning engine models  and manufacturers

B140 33

Dongfeng  Cummins Co., Ltd.

Power(kw)

102

Horsepower(ps)

140

Displacement(ml)

3200

Fuel type

No. 0 light diesel oil  (shares diesel tank with chassis)

vehicle

basic

parameter

Overall dimensions  (length x width x height) mm

★6930*2300*2700

Wheelbase(mm)

3845

tire

245/70R19.5 16PR

tire quantity

7(including 1 spare  tire)

Wheelbase

Front wheel(mm)

1705

Rear wheel(mm)

1785

Rated occupants

3 people

Front suspension/rear  suspension (mm)

1075/2010

approach angle

20°

departure angle

12°

Height from the ground  (mm)

400

Rated load mass (kg)

5395

Curb weight (kg)

6330

Maximum total mass  (kg)

11920

Bin volume (m ³ )

5 (stainless steel  material)

Cleaning width (mm)

2800-3200

Cleaning operation  speed (km/h)

3-15

Cleaning operation  speed (km/h)

15-20

Maximum cleaning  capacity (m ² /h)

38000

suction capacity

Density (g/cm ³ )

2.0

Mass(kg)

1.5

Suction particle size  (mm)

≥100

Garbage bin dumping angle

≥45°

Cleaning efficiency

≥96%

Operation noise (db)

< 88  Comply with GB7258 regulations

Driving performance  parameters

Drive type

4×2 rear axle drive

Suspension type

leaf spring

Number of leaf springs  (front/rear)

8/10+7

Braking type

Dual circuit pneumatic  brake, drum type

Braking distance (full load 30km/h)

≤10m

Maximum speed (km/h)

99

Minimum turning radius (m)

8

Maximum grade

≥30%

clutch system

Single-plate dry diaphragm spring clutch,  hydraulically operated

transmission system

Mechanical 5-speed transmission with  synchronizer, manual

Engine fuel consumption

Travel (L/100km)

Homework(L/h)

Operation(L/10000m ² )

≤14

≤6

≤3

Dust reduction system

water spray form

low pressure mist

Main components

High-pressure pump,  water filter, pipeline, stainless steel spray rack, high-pressure nozzle,  etc.

High pressure pumps

GTM

Vacuuming and dust  reduction

Inside the suction cup suction port

Control type

Electronic control, one-button operation

Main components

Gear pumps, cycloidal  motors, hydraulic cylinders, solenoid valves, manifolds, high-pressure pumps , etc.

cycloid motor

Sanyo motor

gear pumps

Changyuan Machinery

Hydraulic cylinder

Hyperius

Hydraulic cylinder  seals

Taiwan Dingji

Hydraulic oil pipe

Dahang

Solenoid valve group

Hyperius

Shockproof pressure  gauge

red flag

Return oil filter

Shanghai Sofima

System relief pressure

MPa

10-12

Hydraulic tank volume

L

≥50

Electrical system

System composition

It is composed  of chassis circuit, auxiliary engine electrical part and special working  device operation control circuit.

Chassis vehicle system voltage (V)

twenty four

Work device system voltage (V)

12

Electric control box panel composition

Auxiliary engine tachometer, auxiliary engine  water temperature meter, oil temperature alarm device, various operation  control switches

control switch

Shanghai Schneider

programmable logic controller

Billionaires

breaker

Hagrid
