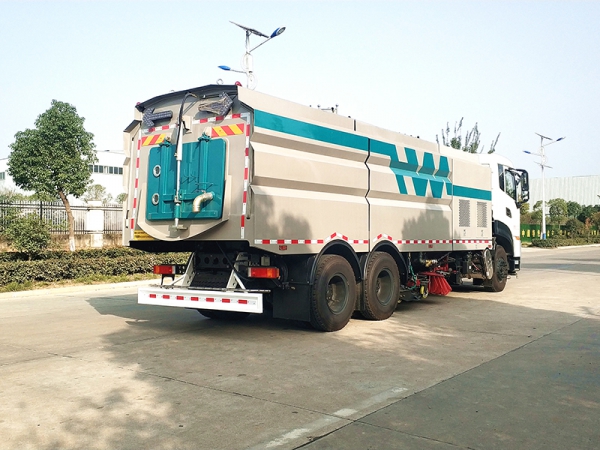

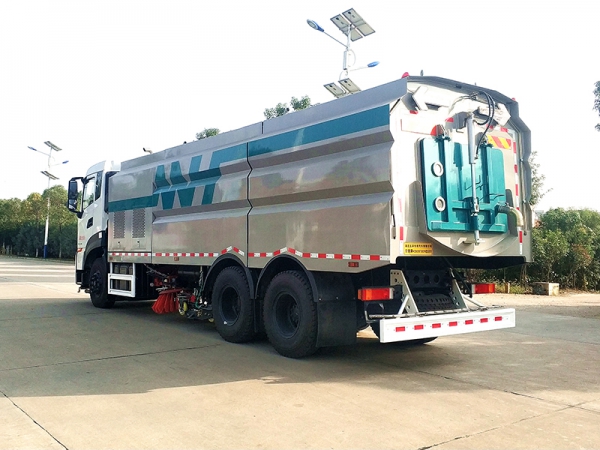

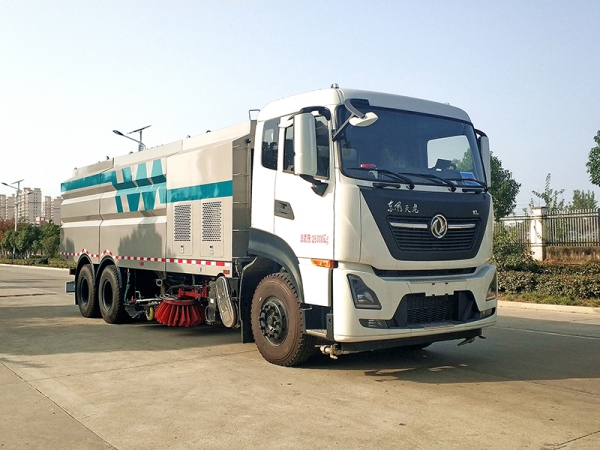

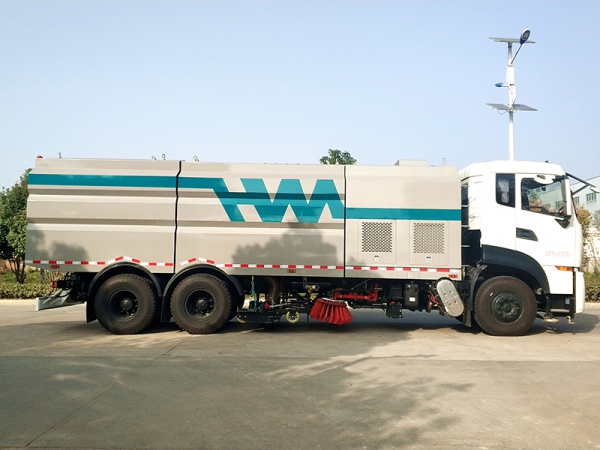

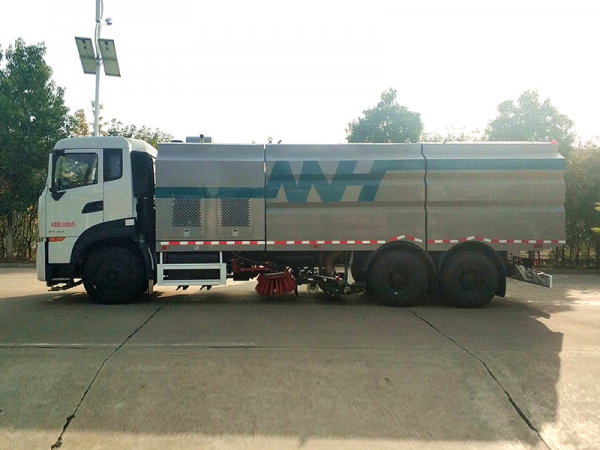

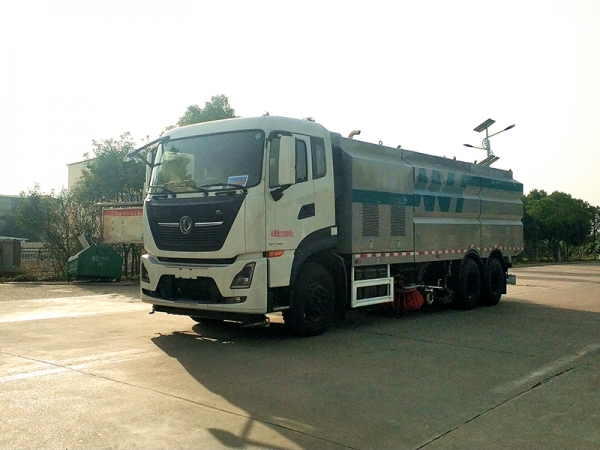

Vehicle performance and structural
parameter table
project | unit | HCQ5250TXSDF6 |
do Industry sex able | wash sweep do Industry | Maximum sweeping width (
including curb cleaning width) | m | 4.1 |
Road cleaning width ( excluding curb cleaning width) | m | 3.5 |
Sweeping speed | Km/h | 3∽10 |
Rated pressure of cleaning
water | MPa | 10 |
Rated flow rate of cleaning
water | L/min | 122 |
clear sweep do Industry | Cleaning width | m | 3.5 |
Cleaning speed | Km/h | 3∽15 |
Cleaning speed | Km/h | 3∽20 |
Maximum cleaning capacity | M 2 /h | 70000 |
discharge angle | ° | ≥45 |
Low pressure flushing width | m | twenty four |
Total volume of clean water
tank | L | 12000 |
Total volume of trash can | L | 10000 |
driving performance | Maximum speed (full load) | km/h | 90 |
Maximum climbing angle | ° | 30 |
Braking distance (full load
30Km/h) | m | ≤10 |
Minimum turning diameter | m | 19 |
fuel consumption | Fuel consumption per 100
kilometers under limited operating conditions | L/100km | 18 |
Full cleaning operation Working speed 7km/h (2nd gear idle speed ) | Auxiliary engine speed
2000r/min | L/h | 13.7 |
L/10000m 2 | 5.64 |
Auxiliary engine speed
1700r/min | L/h | 8.9 |
L/10000m 2 | 3.76 |
Full scanning operation Working speed 7km/h (2nd gear idle speed ) | Secondary engine speed
2000r/min | L/h | 11.1 |
L/10000m 2 | 4.59 |
Secondary engine speed
1700r/min | L/h | 7.2 |
L/10000m 2 | 3.12 |
Quality parameters | Vehicle quality | Kg | 16600 |
Maximum total mass | kg | 25000 |
structure size | Overall dimensions (length x
width x height) | mm | 10100×2500×3405 |
Wheelbase | mm | 4350+1350 |
Wheelbase | front wheel | mm | 2010 |
rear wheel | mm | 1860 |
approach angle | ° | 20 |
departure angle | ° | 13 |
minimum ground clearance | mm | 230 |
|
|
|
|
|
|
|
Main component types and parameters
project | HCQ5250TXSDF6 |
steam car end plate | Chassis model, category,
manufacturer | DFH1250D4 |
Engine model, manufacturer | D6.7NS6B290 |
Engine rated power | 213KW |
Gearbox model | DF6S900 |
drive shaft | Single-stage hyperbolic gear main reducer Speed ratio i =5.143 |
tire | 11.00R20 |
Fuel type | For diesel fuel that meets the sixth stage emission
requirements, select the appropriate diesel grade according to the
temperature. |
vice hair move machine | Standard configuration | Model, manufacturer | B170 33 Dongfeng Cummins Engine Co., Ltd. |
power | 125kw/2500r/min |
clutch | Automobile clutch, pneumatic drive, electrical automatic
control |
heat sink | Effective size 783*714*70 |
wind machine | Type | Special high-pressure centrifugal fan model No7.1#C, maximum
air volume 23500M 3 /h |
Rated speed | 2400r/min |
Transmission type | Narrow V-belt drive (model 15N-2690, 5 pieces) |
liquid press Tie system | Type | Open type , electro-hydraulic control and centralized
operation |
Main components | Gear pump/1 piece, hand pump/1 piece, Cycloidal motor/2 pieces, hydraulic cylinder Integrated blocks, etc.? |
Relief pressure | 15MPa |
Hydraulic oil capacity | 60L |
electricity gas Tie system | control method | PLC control + manual control, electromechanical and hydraulic
interlocking, etc. |
Chassis vehicle system voltage | 24V |
Work equipment system voltage | 24V |
Battery model | 12V-140A.H (2 in series) |
