Chang'an 3-party road sweeper

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

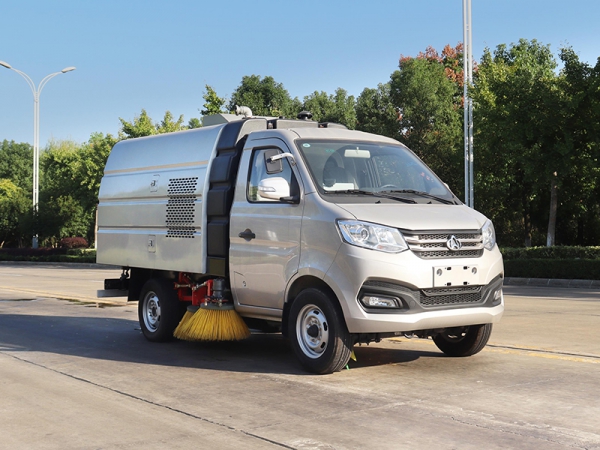

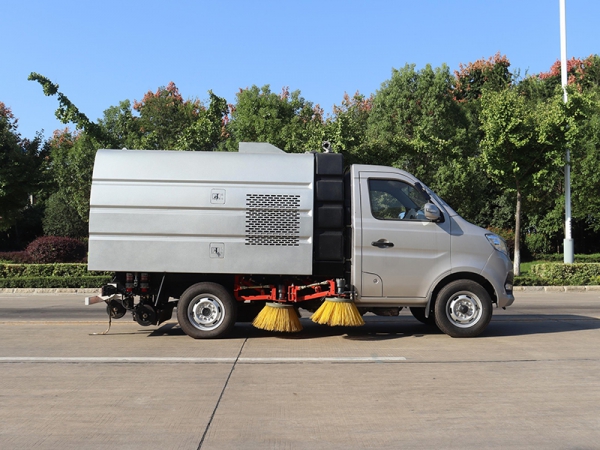

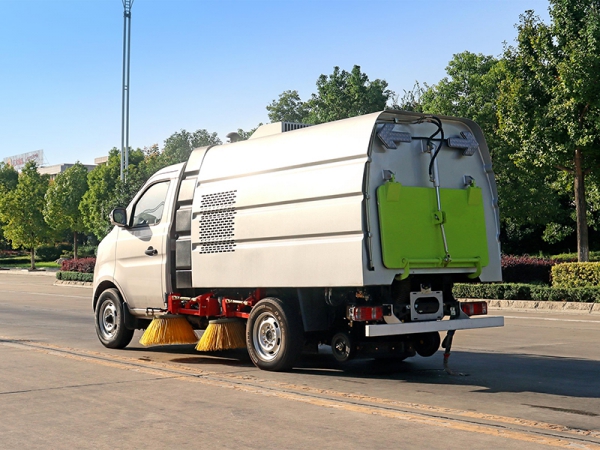

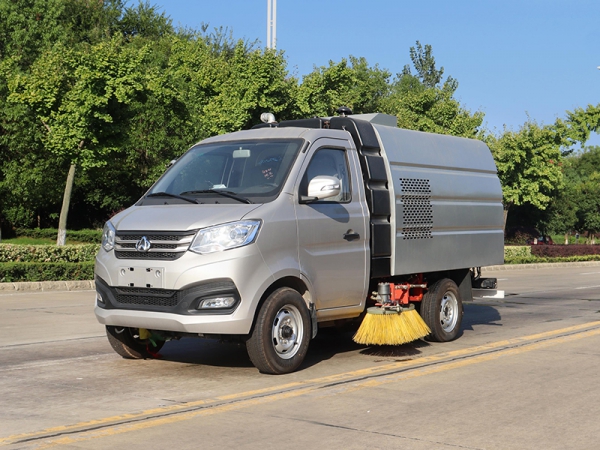

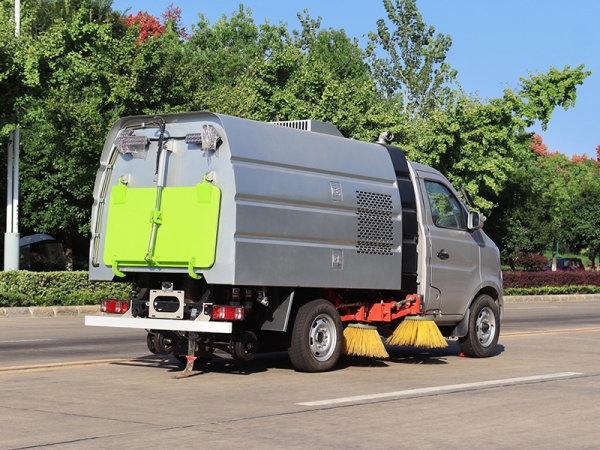

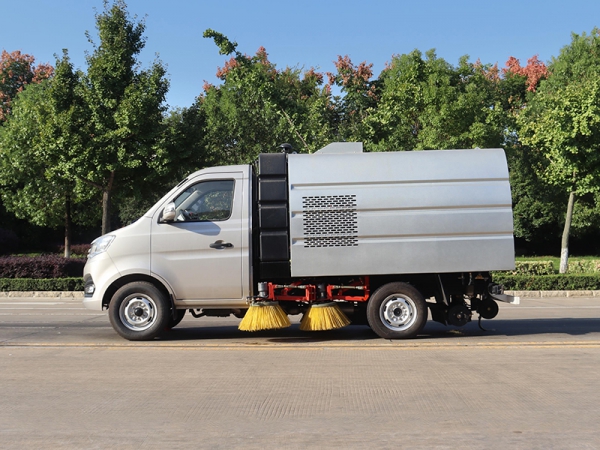

Chang'an 3-party road sweeper-Product Pictures

Chang'an 3-party road sweeper Chang'an 3-party road sweeper Chang'an 3-party road sweeper Chang'an 3-party road sweeper Chang'an 3-party road sweeper Chang'an 3-party road sweeper

Chang'an 3-party road sweeper-Product Parameters

product name

5030TSLSC6 road sweeper

Total mass(kg)

2840

Wheelbase(mm)

2 700

Rated mass (kg)

160

Overall dimensions (mm)

481 0X 1850 X 215 0

Curb weight (kg)

2550

Tank volume

1.5 m³ water / 1.5 m³ dust

engine model

DAM16KR

Engine horsepower (PS)

1 22

Number of permitted passengers in the cab (person)

2

Tire specifications

175R14LT 8PR

Maximum speed (km/h)

100



Remark:

This vehicle is used to remove /collect road garbage and other dirt; the special device is the box and cleaning device assembly; ABS control system model/manufacturer/control method: YF8/Wuhan Yuanfeng Automobile Electronic Control System Co., Ltd./four-channel type . Optional rim structure, optional air deflector

Control switch:

Integrated superposition design, electro-hydraulic centralized control in the cab, convenient operation.

fan

It adopts high-power wear-resistant centrifugal maintenance-free fan with strong suction, low noise and simple maintenance. The impeller is welded with high-strength steel plate and has been corrected by static and dynamic balance. It has good aerodynamic performance, stable operation and high strength. And long service life, simple maintenance, reliable performance

Solenoid valve group

The core component of the vehicle hydraulic system controls the hydraulic drive of the entire vehicle and the two-way operation button, including a series of mechanical operations such as sweeping plate lifting, suction cup lifting, garbage bin lifting, rear door opening and closing, etc. The vehicle is equipped with a solenoid valve control box cover. Effectively prevent dust and garbage from entering the box.

Electromagnetic water pump

12V/24V, control the water spray bracket above the sweeping brush, effectively suppressing the secondary dust generated by the sweeping brush

cycloid motor

It can drive the sweep brush to rotate at high speed, has a long service life, is stable and reliable, and has a low failure rate!

Sweep

Use an inclined sweep brush to sweep the garbage in front of the suction cup. Under the negative pressure generated by the fan, the air flow will suck the garbage into the garbage bin for storage in a closed circuit.

suction cup

It adopts a fully floating suction nozzle that can automatically level with the road surface, which has good dust collection effect and long service life.

Chang'an 3-party road sweeper-Details
