Central China regional sanitation vehicle base, boutique sanitation
——More than 500 sanitation trucks in stock

Dongfeng 6 cubic meters cleaning truck

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

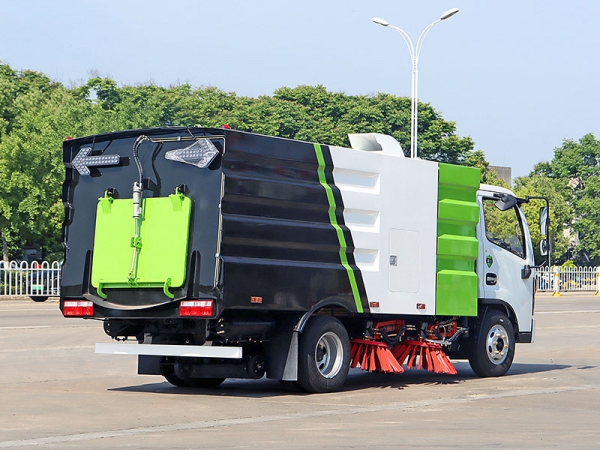

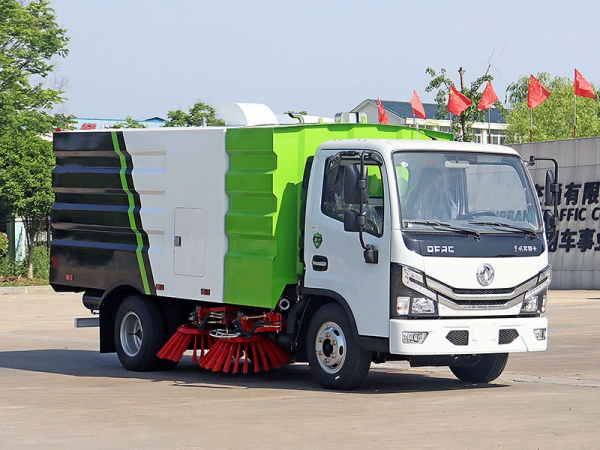

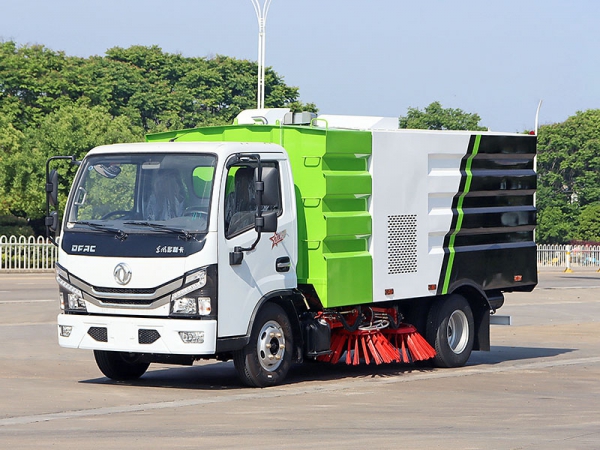

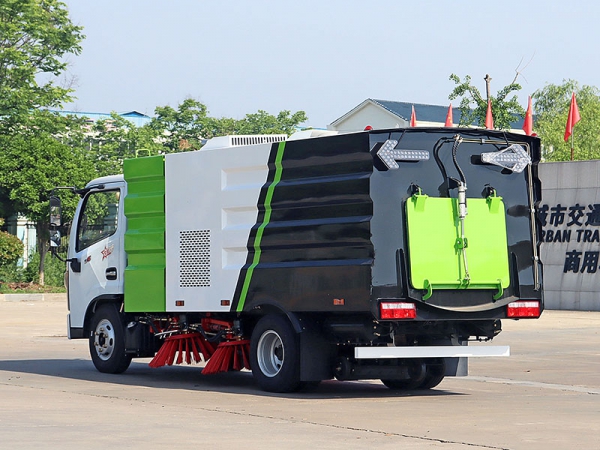

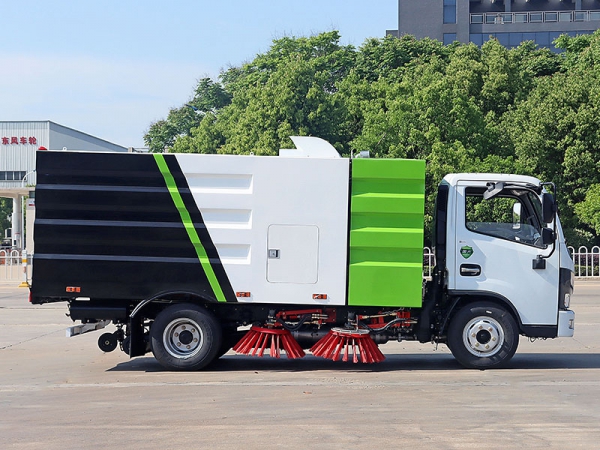

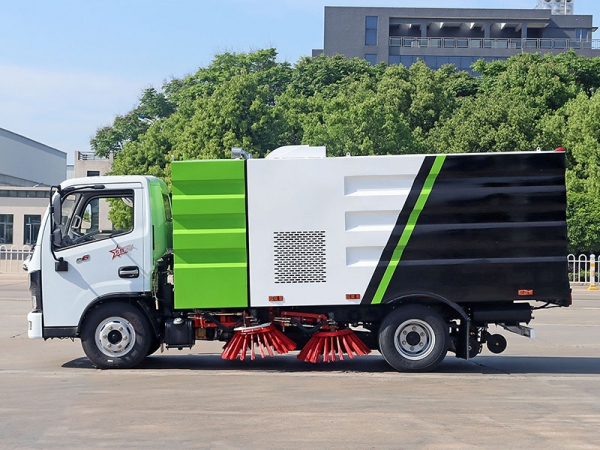

Dongfeng 6 cubic meters cleaning truck-Product Pictures

Dongfeng 6 cubic meters cleaning truck Dongfeng 6 cubic meters cleaning truck Dongfeng 6 cubic meters cleaning truck Dongfeng 6 cubic meters cleaning truck Dongfeng 6 cubic meters cleaning truck Dongfeng 6 cubic meters cleaning truck

Dongfeng 6 cubic meters cleaning truck-Product Parameters

product name

CL5070TSLE6 road sweeper

Total mass(kg)

7360

Total mass(kg)

7360

Rated mass (kg)

2130

Rated mass (kg)

2130

Curb weight (kg)

5100

Curb weight (kg)

5100

engine model

YCY24140-60 / Q23-136E60

engine model

YCY24140-60 / Q23-136E60

Number of permitted passengers in the cab (person)

2

Number of permitted passengers in the cab (person)

2

Maximum speed (km/h)

110

Maximum speed (km/h)

110

Remark:

Remarks: 1. The corresponding relationship between vehicle length/front overhang/rear overhang/wheelbase (mm) is: 6200/1055/1837/3308,5905/1055/1900/2950,5505/1055/1750/2700.

2. The rear protection material is Q235, the connection method is bolted connection, the cross-sectional size of the rear protection device (width × height) is 50 × 120 (mm), and the rear protection height from the ground is: 475mm.

3. Optional front mask, front bumper and front combination lamps.

4. This vehicle is mainly used for mechanized road cleaning operations; the special device is a sweeping brush.

5.ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd.

Control switch:

Integrated superposition design, electro-hydraulic centralized control in the cab, convenient operation.

fan

It adopts high-power wear-resistant centrifugal maintenance-free fan with strong suction, low noise and simple maintenance. The impeller is welded with high-strength steel plate and has been corrected by static and dynamic balance. It has good aerodynamic performance, stable operation and high strength. And long service life, simple maintenance, reliable performance

Solenoid valve group

The core component of the vehicle hydraulic system controls the hydraulic drive of the entire vehicle and the two-way operation button, including a series of mechanical operations such as sweeping plate lifting, suction cup lifting, garbage bin lifting, rear door opening and closing, etc. The vehicle is equipped with a solenoid valve control box cover. Effectively prevent dust and garbage from entering the box.

Electromagnetic water pump

12V/24V, control the water spray bracket above the sweeping brush, effectively suppressing the secondary dust generated by the sweeping brush

cycloid motor

It can drive the sweep brush to rotate at high speed, has a long service life, is stable and reliable, and has a low failure rate!

Sweep

Use an inclined sweep brush to sweep the garbage in front of the suction cup. Under the negative pressure generated by the fan, the air flow will suck the garbage into the garbage bin for storage in a closed circuit.

suction cup

It adopts a fully floating suction nozzle that can automatically level with the road surface, which has good dust collection effect and long service life.

Dongfeng 6 cubic meters cleaning truck-Details
