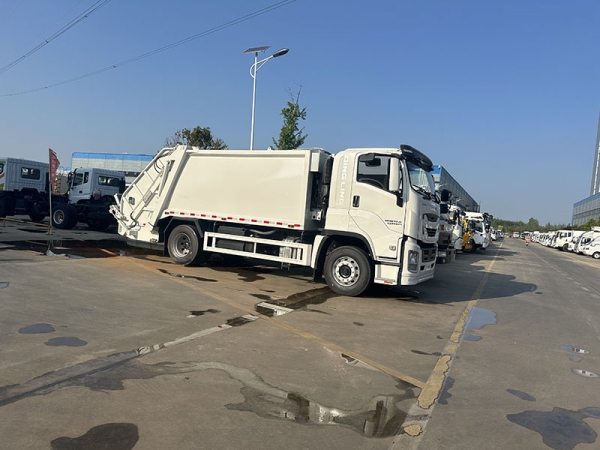

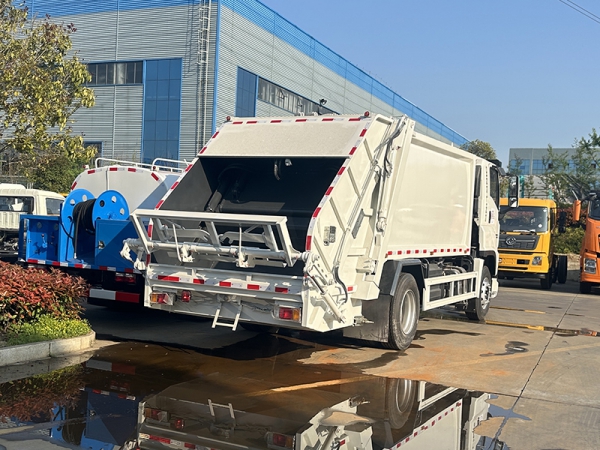

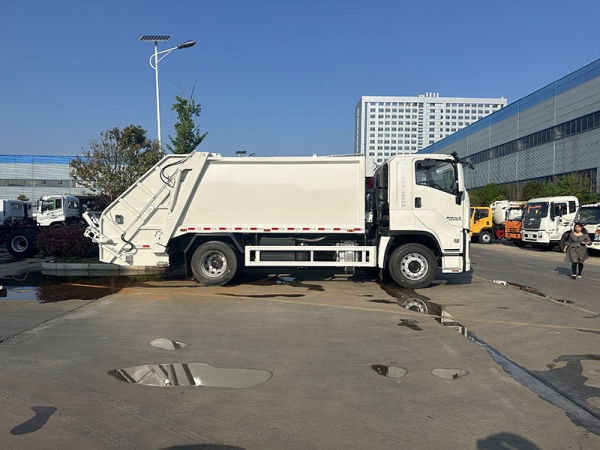

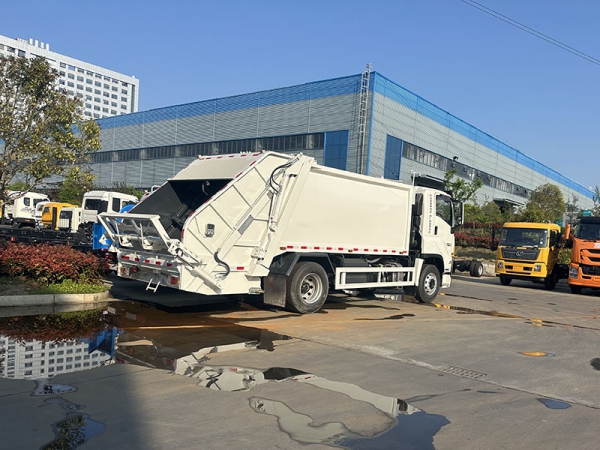

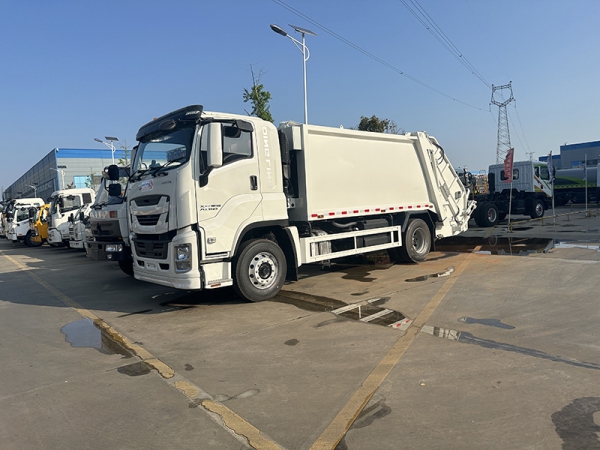

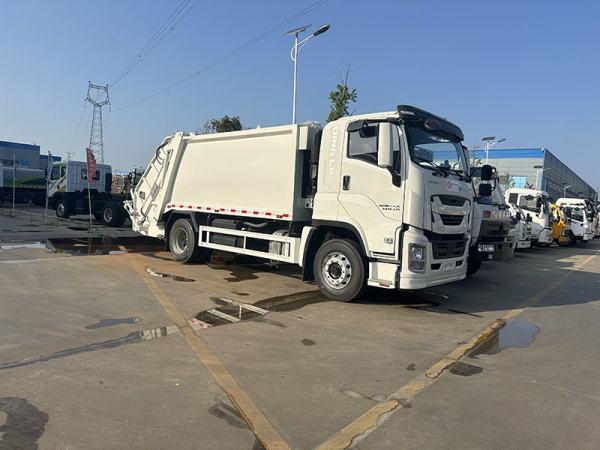

Isuzu 12 cubic meters compressed garbage truck

product name

Isuzu 12 cubic meter compression garbage  truck

Overall vehicle dimensions (length × width ×  height)

9000 ×2 5500 × 36 50

total mass

18000kg

Rated contained mass

8170kg

curb weight

9200kg

Chassis configuration parameters:

Chassis model

QL1258BUKACY

Drive form

4× 2

Wheelbase

4500mm

engine model

4KH1N6MD

Engine power

157kw

Engine horsepower

210 HP

gearbox

8 gears

Emission Standards

GB3847-2005, GB17691-2018 Country VI

tire

1000R16LT 14PR

other

Air-cut brake, ABS air conditioner, standard  equipment on other Dongfeng chassis.

Dedicated configuration parameters:

Effective volume of the box

Approximately 12 m³

Box shape

New arc shape

Box material

Q345 manganese steel (side 4, bottom 5)

Compression ratio

≥2.5

Filler effective volume

≥1m³

Loading cycle time

≤25s

Loading cycle time

≤15s

shirk garbage time

≤35s

control method

automatic / manual

Hydraulic system pressure

18MPa

Multi-way directional valve

Jiangsu 2+3

Hydraulic oil pump

Duplex gear pump

Hydraulic cylinder

Jiangsu oil cylinder

Conversion power take-off

Jiashan, Zhejiang

Electronic control system (PLC one-key  cycle)

Siemens
