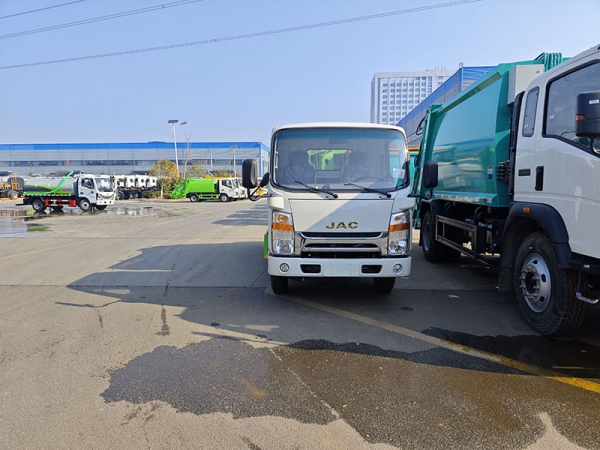

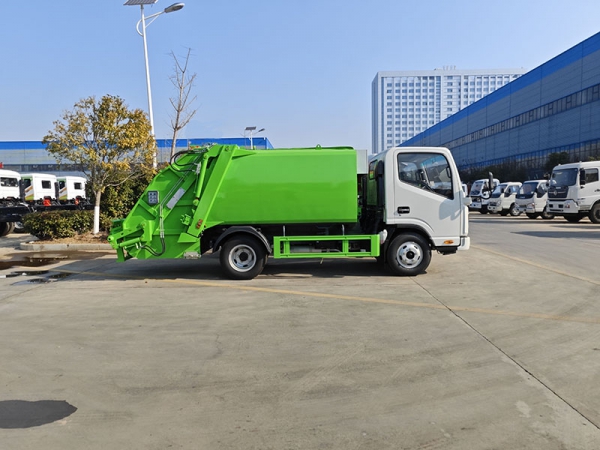

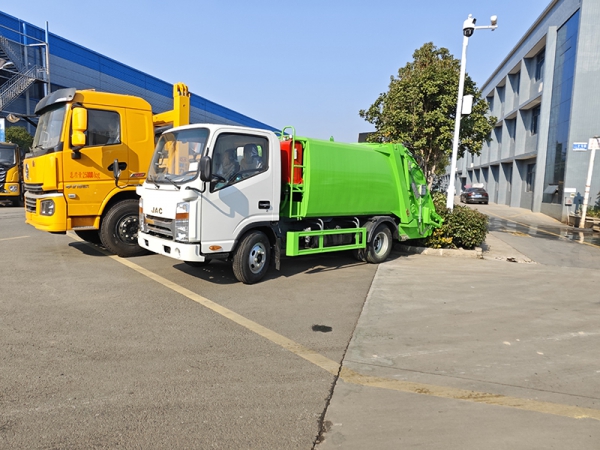

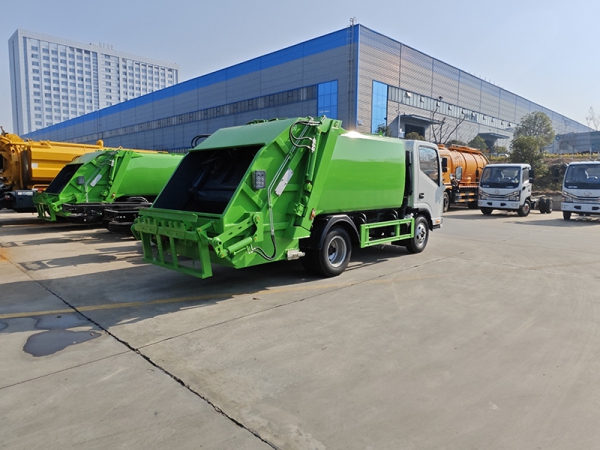

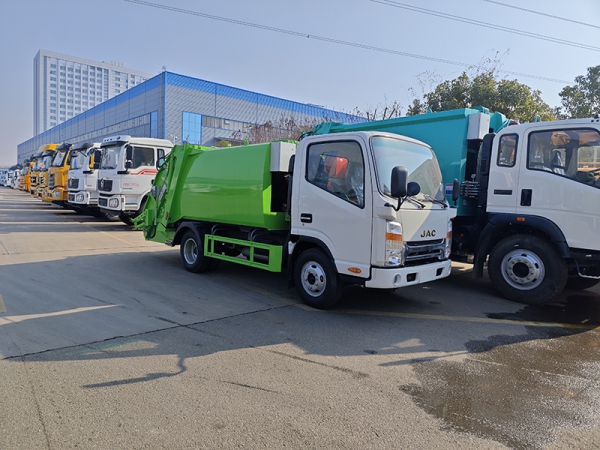

JAC 5-party compressed garbage truck

product name

JAC 5 cubic meter compression garbage truck

Overall vehicle dimensions (length × width ×  height)

5995×2060×2450

total mass

4495kg

Rated contained mass

500kg

curb weight

3865kg

Chassis configuration parameters:

Chassis model

HFC 1045 P23K1B4QZS

Drive form

4× 2

Wheelbase

2850 mm

engine model

D20TCIF15

Engine power

90kW (Cummins)

Engine horsepower

126 HP (Cummins)

gearbox

Shaanxi gear 5th gear

Emission Standards

GB3847-2005, GB17691-2018 Country VI

tire

6.50R16

other

Air-cut brake, ABS air conditioner, standard  equipment on other Dongfeng chassis.

Dedicated configuration parameters:

Effective volume of the box

about 5 m³

Box shape

New arc shape

Box material

Q345 manganese steel (side 4, bottom 5)

Compression ratio

≥2.5

Filler effective volume

≥1m³

Loading cycle time

≤25s

Loading cycle time

≤15s

shirk garbage time

≤35s

control method

automatic / manual

Hydraulic system pressure

18MPa

Multi-way directional valve

Jiangsu 2+3

Hydraulic oil pump

Duplex gear pump

Hydraulic cylinder

Jiangsu oil cylinder

Conversion power take-off

Jiashan, Zhejiang

Electronic control system (PLC one-key  cycle)

Siemens
