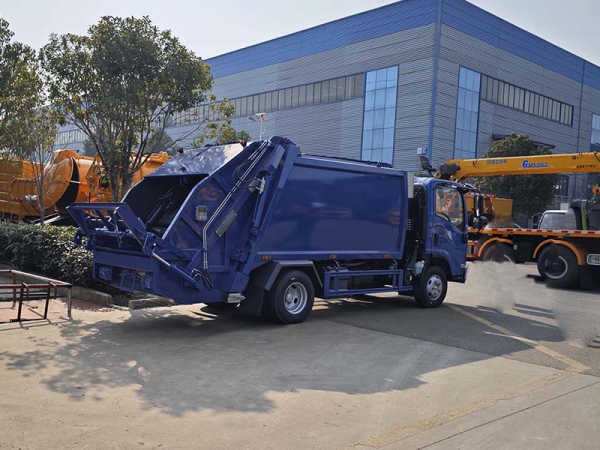

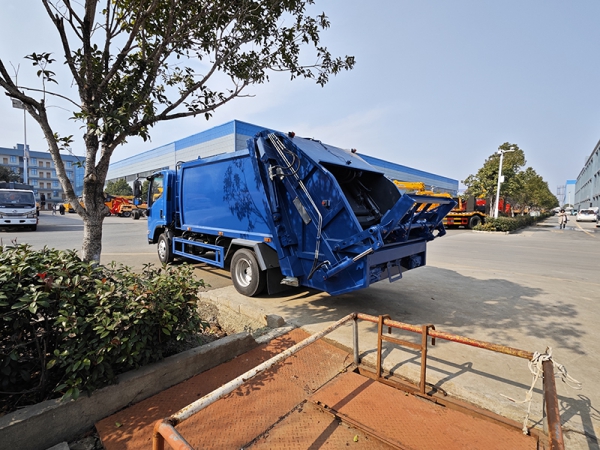

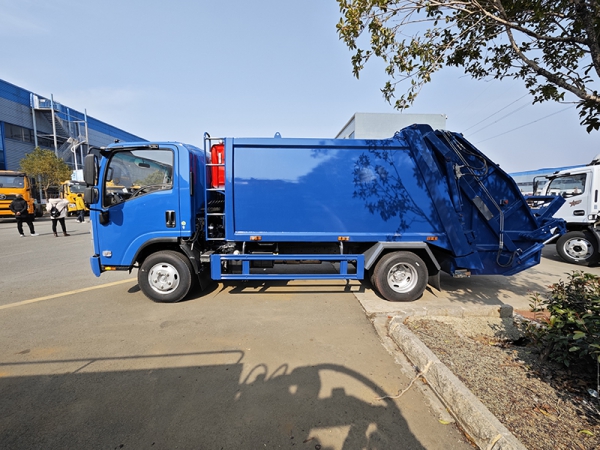

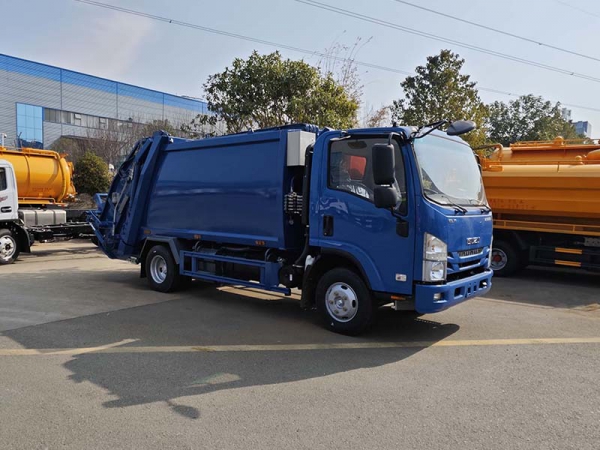

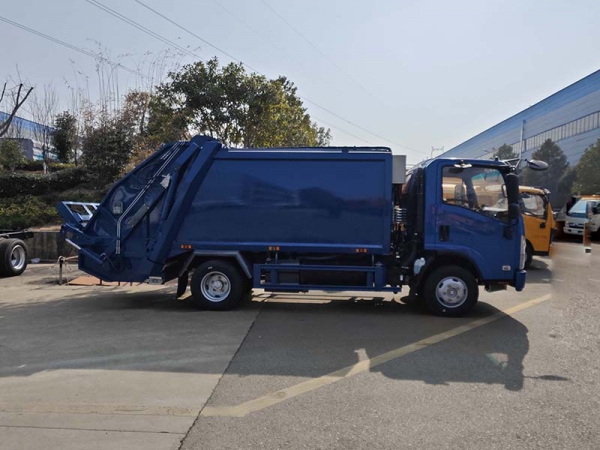

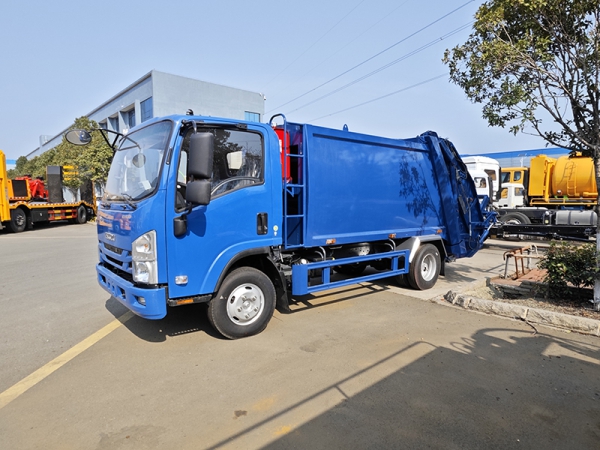

Isuzu 8-party compressed garbage truck

product name

Isuzu 8 cubic compression garbage truck

Overall vehicle dimensions (length × width ×  height)

7355 ×2 320 ×2 7 50

total mass

8280kg

Rated contained mass

2135kg

curb weight

5950kg

Chassis configuration parameters:

Chassis model

QL1080BUKACY

Drive form

4× 2

Wheelbase

3815 mm

engine model

4KH1N6MD

Engine power

103kW (Cummins)

Engine horsepower

140 HP (Cummins)

gearbox

6th gear

Emission Standards

GB3847-2005, GB17691-2018 Country VI

tire

7.50R16LT 14PR

other

Air-cut brake, ABS air conditioner, standard  equipment on other Dongfeng chassis.

Dedicated configuration parameters:

Effective volume of the box

About 8 m³

Box shape

New arc shape

Box material

Q345 manganese steel (side 4, bottom 5)

Compression ratio

≥2.5

Filler effective volume

≥1m³

Loading cycle time

≤25s

Loading cycle time

≤15s

shirk garbage time

≤35s

control method

automatic / manual

Hydraulic system pressure

18MPa

Multi-way directional valve

Jiangsu 2+3

Hydraulic oil pump

Duplex gear pump

Hydraulic cylinder

Jiangsu oil cylinder

Conversion power take-off

Jiashan, Zhejiang

Electronic control system (PLC one-key  cycle)

Siemens
