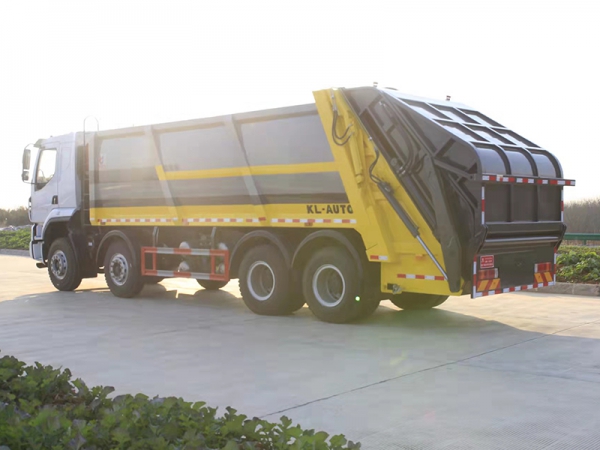

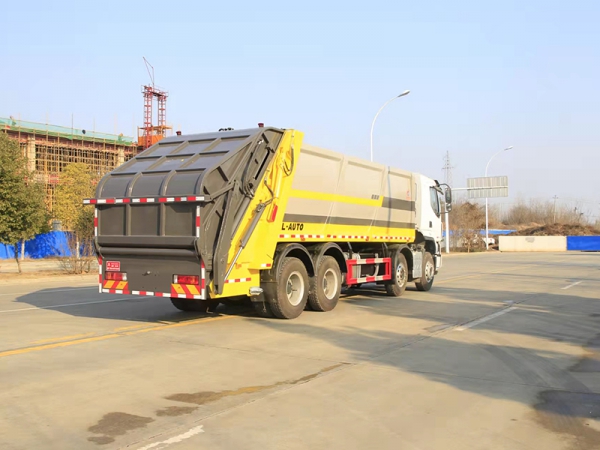

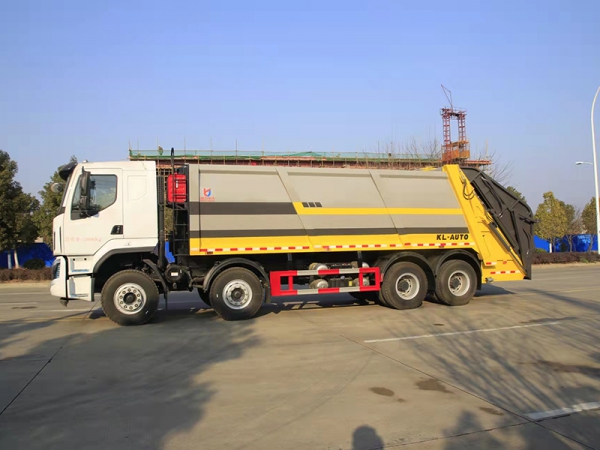

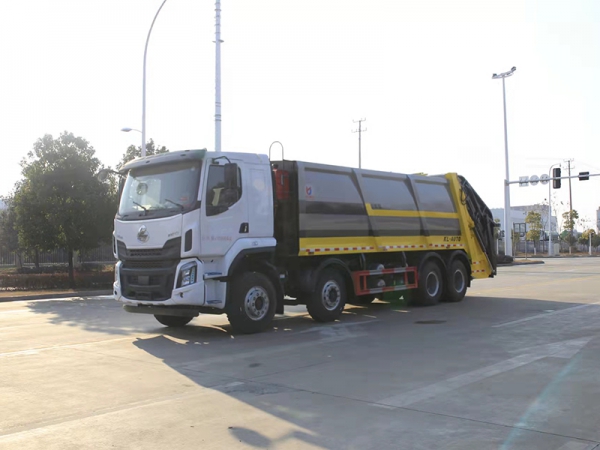

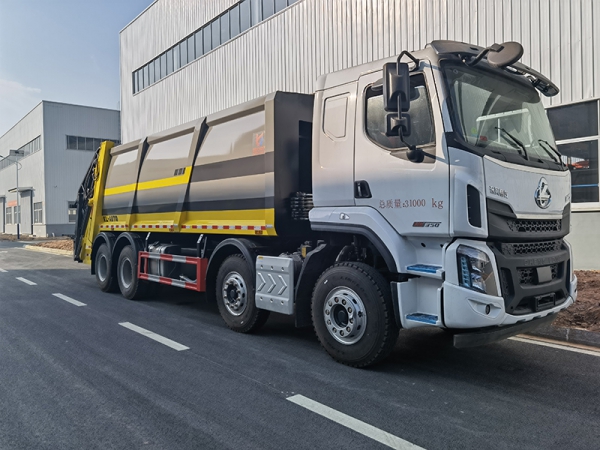

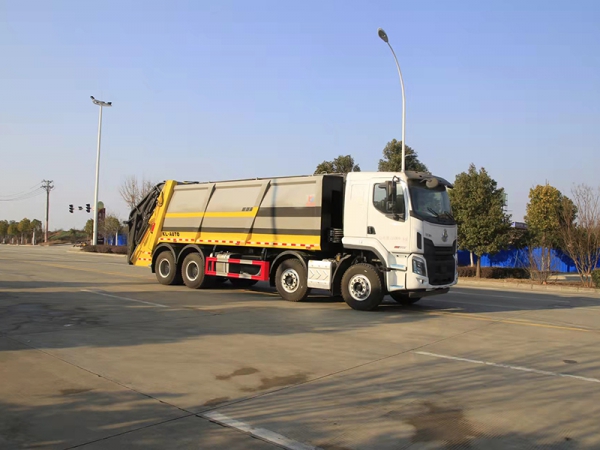

Liuqi front four rear eight compressed garbage truck

product name

Liuqi compression garbage  truck

Overall vehicle dimensions  (length × width × height)

1 1030 × 2 550 ×  3 450

          total mass

31,000kg

Rated contained mass

13490kg

curb weight

17380kg

Chassis configuration  parameters:

Chassis model

LZ1316H5FCT

Cab color

jade white

Drive form

10×4

Wheelbase

2050+4400+1350 mm

engine model

YCK08350-60 ( Yuchai  )

Engine power

257 kW (Yuchai)

Engine horsepower

350 horsepower  (Yuchai)

gearbox

10 gears

Emission Standards

GB3847-2005, GB17691-2018  Country VI

tire

11.00R20 16PR (1 3 pieces  including spare tire)

other

Air-cut brake, ABS air  conditioner, standard equipment on other Dongfeng chassis.

Dedicated configuration  parameters:

Effective volume of the box

Approximately 2 5 m³

Box shape

New arc shape

Box material

Q345 manganese steel (5 sides  and 5 bottoms)

Compression ratio

≥2.5

Filler effective volume

≥1m³

Loading cycle time

≤25s

Loading cycle time

≤15s

shirk garbage time

≤35s

control method

automatic / manual

Hydraulic system pressure

18MPa

Multi-way directional valve

Jiangsu 2+3

Hydraulic oil pump

Duplex gear pump

Hydraulic cylinder

Jiangsu oil cylinder

Conversion power take-off

Jiashan, Zhejiang

Electronic control system  (PLC one-key cycle)

Siemens
