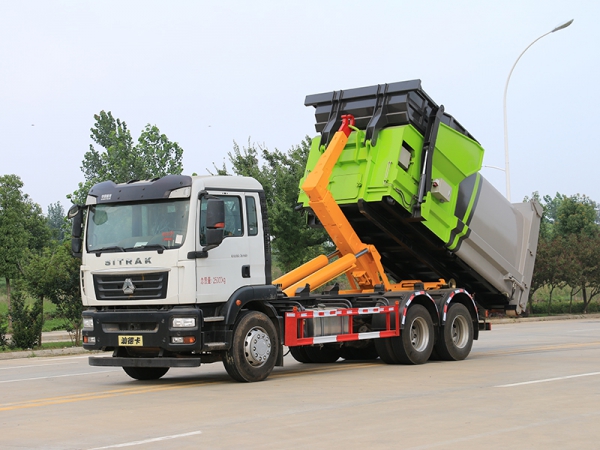

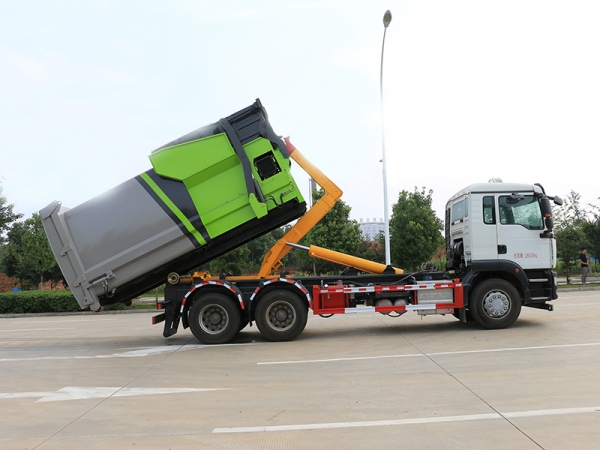

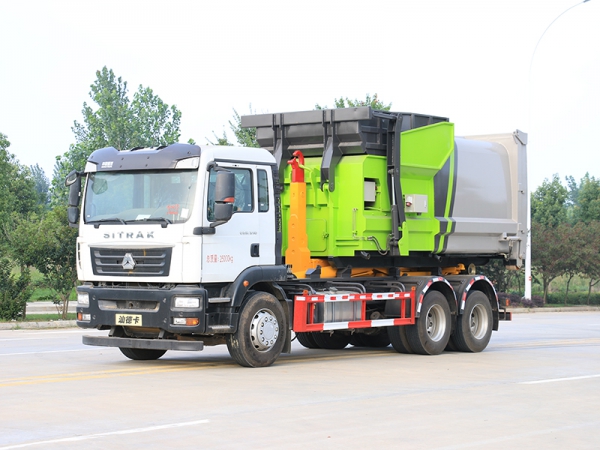

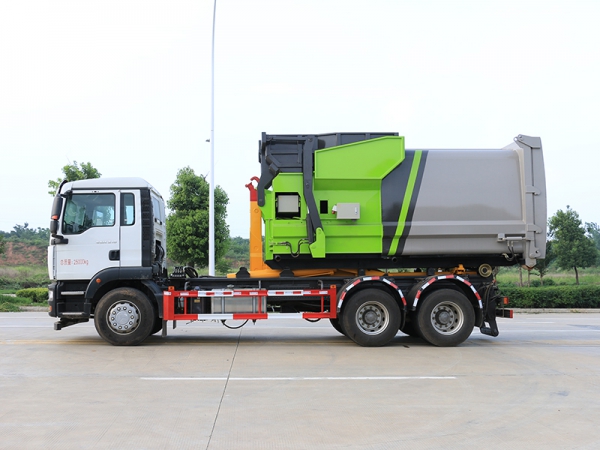

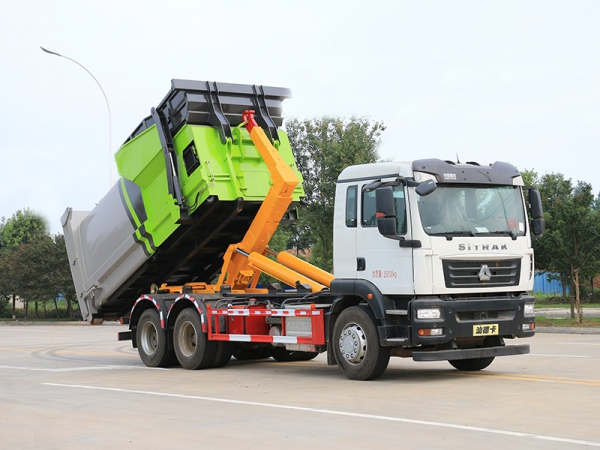

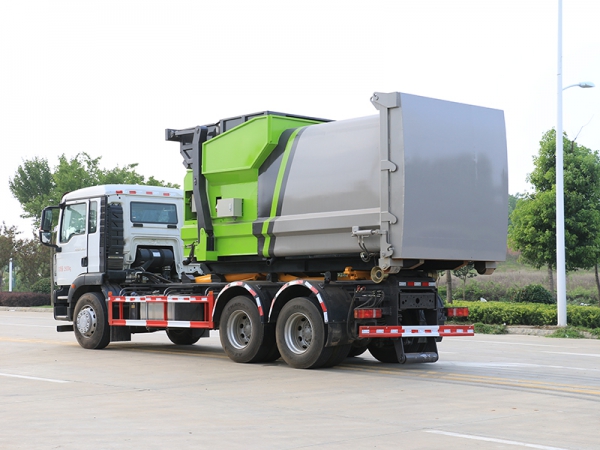

Shanteka 25-ton Hook-arm Garbage Truck

Vehicle parameters

Rated occupants

3 people

Overall vehicle size (mm)

8320×2550×3180

Total mass (kg)

25000

Curb weight (kg)

11600

Rated mass (kg)

13270

ABS anti-lock braking system

have

Chassis parameters

Chassis brand/series

Sinotruk Shandeka

model

ZZ5256XXYN504GF1

Wheelbase (mm)

4275+1400

Tire specifications

11.00R20 18PR steel tire

Fuel type

diesel fuel

Emission Standards

GB17691-2018 Country VI

engine

MC07H.35-60

gearbox

8 gears

Hydraulic system

Type

Electric--Gas--Liquid

Main  components

Hydraulic oil pump, operating valve, balance  valve, hydraulic lock, hook arm main operating cylinder, sleeve arm inner  sliding

Cylinder, hydraulic oil pipe, hydraulic oil tank

System  rated pressure

22MPa

Hydraulic  tank capacity

120L

Job performance parameters

Regular  hook up

T

16T

Maximum horizontal sliding distance of hook arm

mm

800/1000mm

Oil  pump displacement

Ml/r

80ml/r

Hook  box time

s

≤50

Unpacking  time

s

≤50

tipping  angle

.

≥50

Hook  center height of arm hook

mm

1570

Rail  width

mm

1060

control  voltage

V

24V
