Dongfeng special bottom D3 hook arm garbage truck plus mobile station

Get a quote and program for this model

reserve

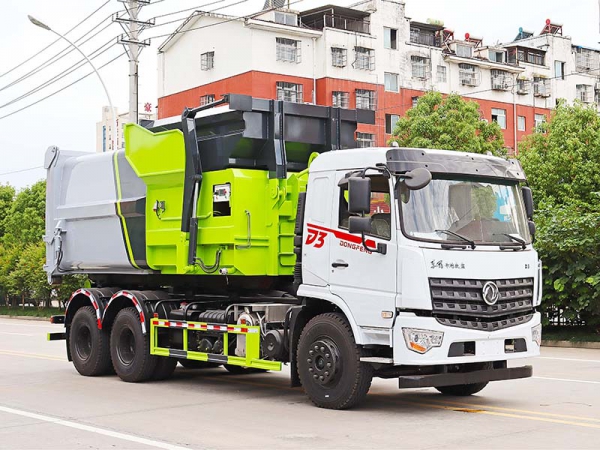

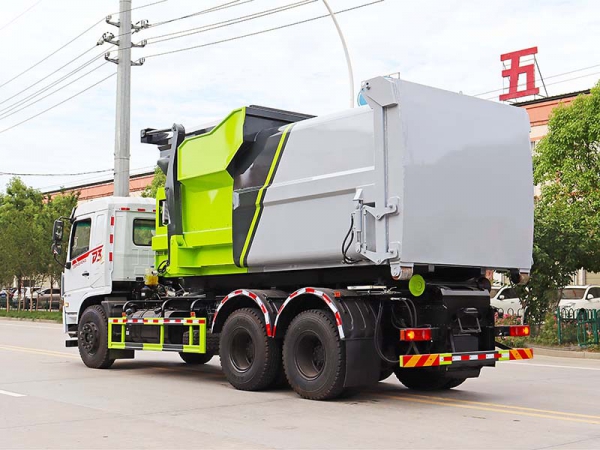

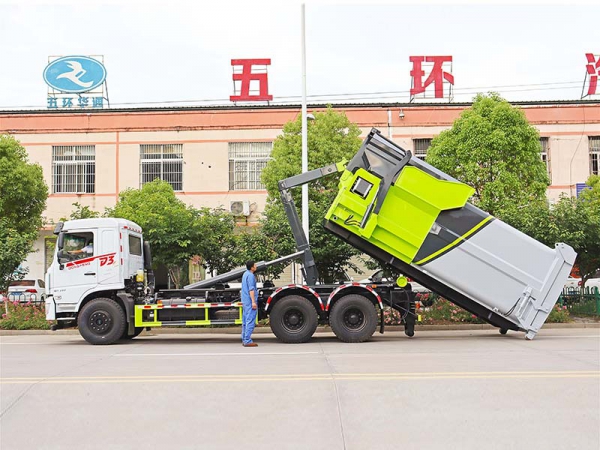

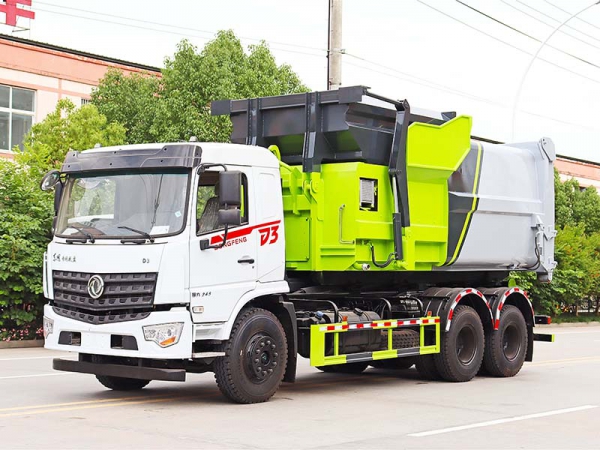

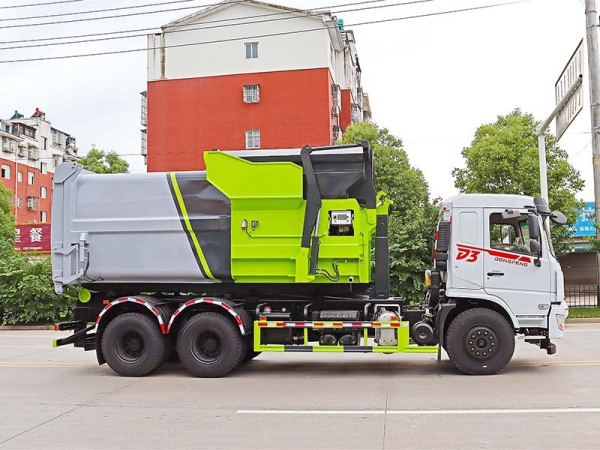

Dongfeng special bottom D3 hook arm garbage truck plus mobile station-Product Pictures

Technical Parameters

【Vehicle Technical Parameters】
product name	Removable compartment garbage truck	Product number	CL5181ZXXE6
Total mass (Kg)	18000	Number of permitted passengers in the cab (person)	3
Rated load mass (Kg)	10855,10355	Overall dimensions (mm)	7890 × 2500 × 3120
Curb weight (Kg)	6950,7450	Cargo compartment size (mm)	× ×
Approach angle /departure angle (°)	21/19	Front suspension /rear suspension (mm)	1440/1350
Axle load (Kg)	6500/11500	Maximum speed (Km/h)	89
[ Chassis technical parameters]
Chassis model	DFV1183GP6DJ	Chassis name	Truck chassis
Trade name	Dongfeng brand	manufacturer	Dongfeng Commercial Vehicle Xinjiang Co., Ltd.
Number of axes	2	Number of tires	6
Wheelbase(mm)	3950
Tire specifications	10.00R20 18PR
Number of leaf springs	8/10+8	Front wheelbase (mm)	1880,1940,1965,1910,1810
Fuel type	diesel fuel	Rear wheelbase (mm)	1820,1860,1800
Emission standards	GB17691-2018 Country VI
engine model	Engine manufacturer	Displacement (ml)	Power (Kw)
YCS06200-60	Guangxi Yuchai Machinery Co., Ltd.	6234	147

arm hook	Hook model	wilbur
Hydraulic system	Operation type	Remote control + manual
	Main components	Hydraulic oil pump, operating valve, balancing valve, hydraulic lock, main operating cylinder of hook arm, sliding cylinder in sleeve arm, hydraulic oil pipe, hydraulic oil tank
	System rated pressure	20MPa/30MPa
	Hydraulic tank capacity	120L
	Normal lifting force	T	14T
	Maximum horizontal sliding distance of hook arm	mm	900/1000mm
	Oil pump displacement	Ml/r	80ml/r
	Hook box time	s	≤45
	Unpacking time	s	≤50
	tipping angle	.	49/50
	Hook center height of arm hook	mm	1570
	Rail width	mm	1070
	control voltage	V	24V
	Equipment weight	kg	2000kg

Accessory parameters

serial number	name	Model/Material	factory
1	Pull arm hook structural parts	BS700MCK2 high strength steel	Shanghai
2	Hydraulic pump	Wanye high pressure hydraulic pump	hefei
3	Multi-way directional valve	Honghui	Hunan
5	Balance valve	Yangzhou Zhongmei ZM	Yangzhou, Jiangsu
8	sealing ring	HALLITE	U.K.
9	remote control	TELECRANE	Taiwan
10	Sliding arm cylinder	WILBER	Shanghai
11	Rear support cylinder	WILBER	Shanghai
