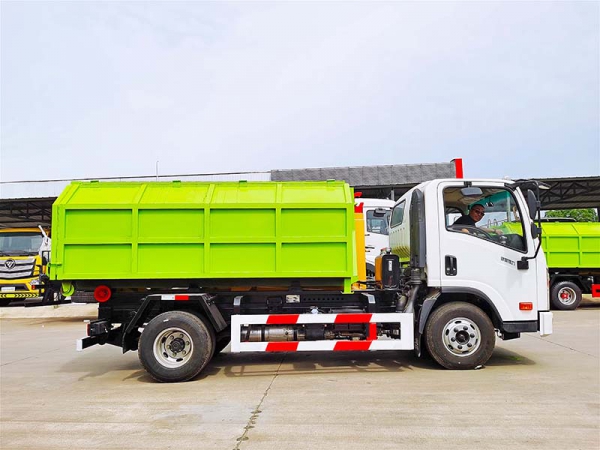

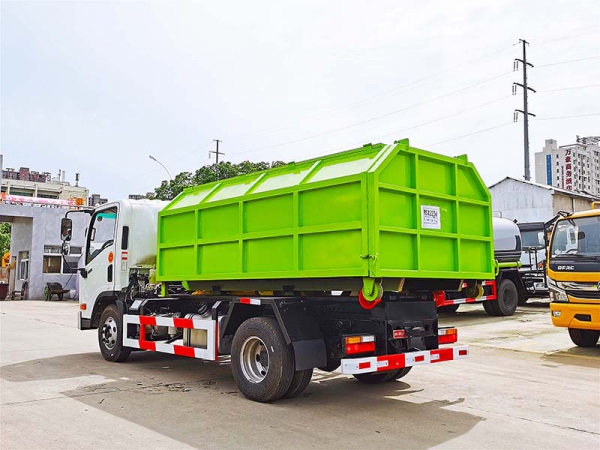

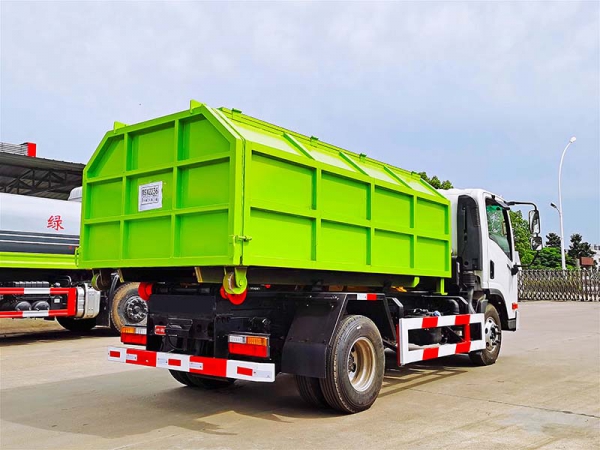

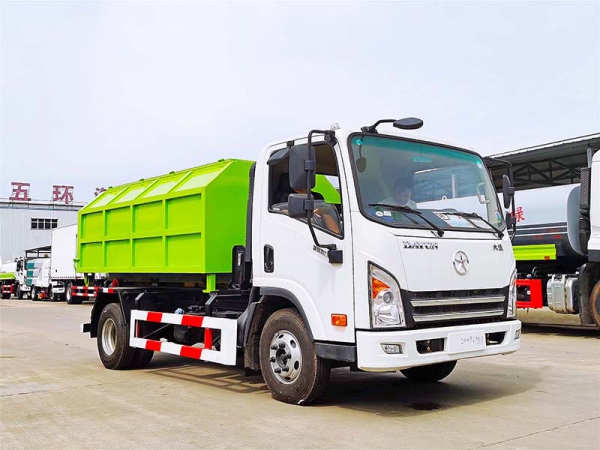

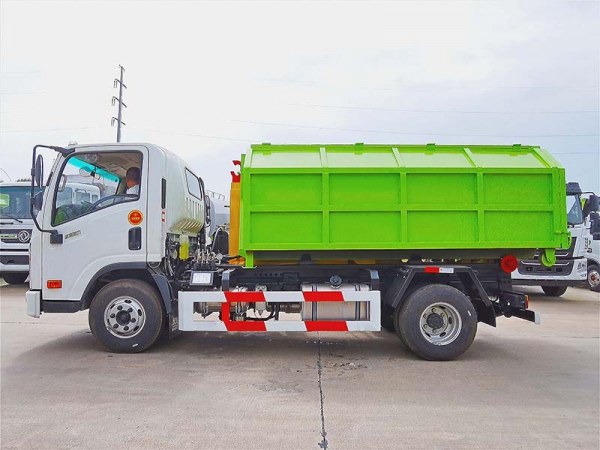

DAYUN hook arm garbage truck

Vehicle parameters

Rated occupants

3 people

Overall vehicle size (mm)

5460×2040×2190

Total mass (kg)

4495

Curb weight (kg)

3460

Rated mass (kg)

905

ABS anti-lock braking system

have

Chassis parameters

Chassis brand/series

Universiade

model

CGC1041HDD33F

Wheelbase (mm)

3300

Tire specifications

7.00R16LT 8PR steel tire

Fuel type

diesel fuel

Emission Standards

GB17691-2018 Country VI

engine

D20TCIF11

gearbox

5th gear

Hydraulic system

Type

Electric--Gas--Liquid

Main  components

Hydraulic oil pump, operating valve, balance  valve, hydraulic lock, hook arm main operating cylinder, sleeve arm inner  sliding

Cylinder, hydraulic oil pipe, hydraulic oil tank

System  rated pressure

22MPa

Hydraulic  tank capacity

120L

Job performance parameters

Regular  hook up

T

16T

Maximum horizontal sliding distance of hook arm

mm

800/1000mm

Oil  pump displacement

Ml/r

80ml/r

Hook  box time

s

≤50

Unpacking  time

s

≤50

tipping  angle

.

≥50

Hook  center height of arm hook

mm

1570

Rail  width

mm

1060

control  voltage

V

24V
