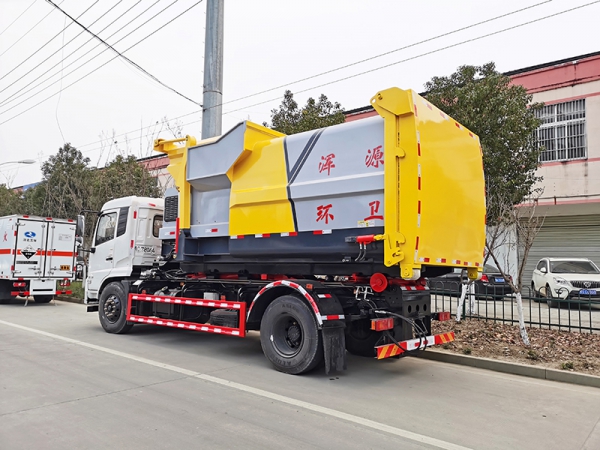

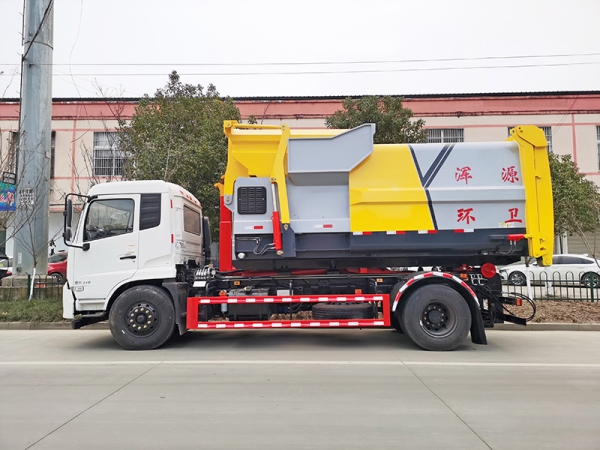

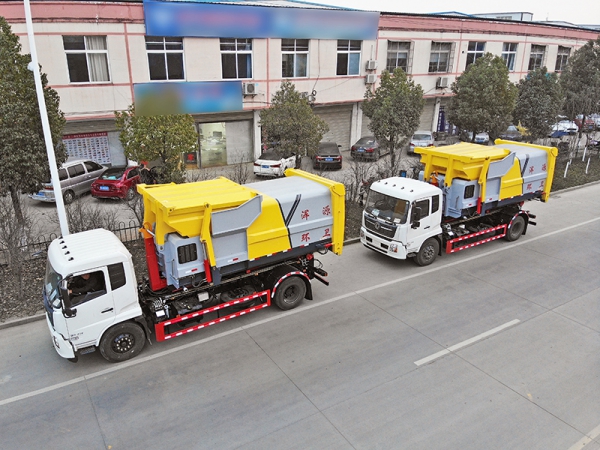

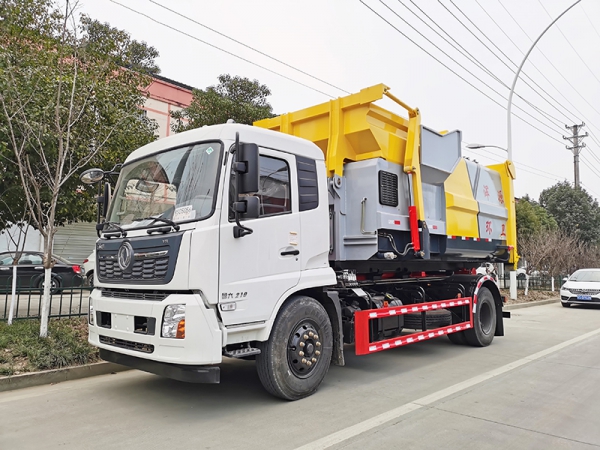

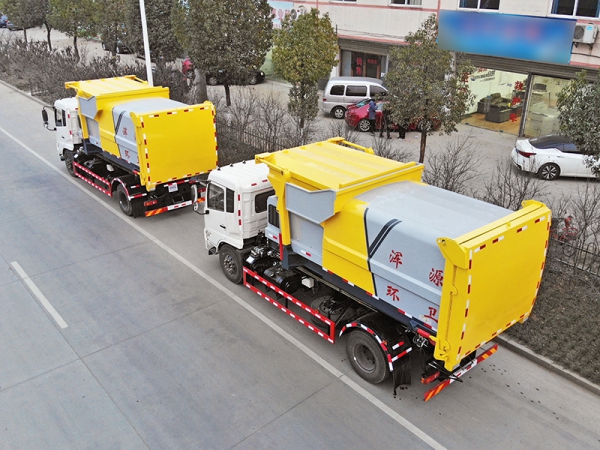

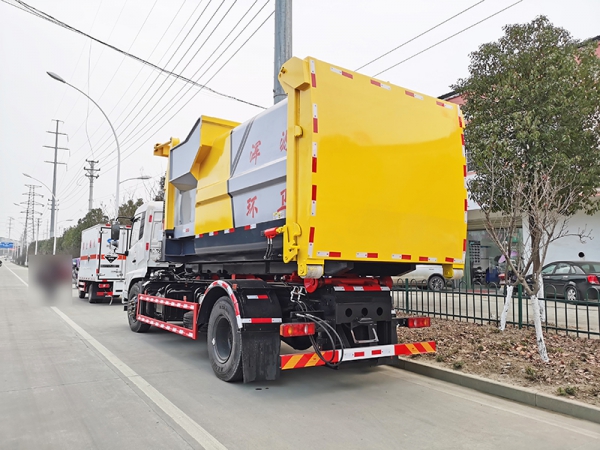

TIANJIN Hook-arm Garbage Truck

Vehicle parameters

Rated occupants

3 people

Overall vehicle size (mm)

7480×2520×3090

Total mass (kg)

18000

Curb weight (kg)

7300,7800

Rated mass (kg)

10505,10005

ABS anti-lock braking system

have

Chassis parameters

Chassis brand/series

Dongfeng/Tianjin

model

DFH1180EX8

Wheelbase (mm)

4500/4700

Tire specifications

10.00R20 steel tire

Fuel type

diesel fuel

Emission Standards

GB17691-2018 Country VI

engine

Dongfeng Cummins B6.2NS6B230

gearbox

Dongfeng 6th gear

Hydraulic system

Type

Electric--Gas--Liquid

Main  components

Hydraulic oil pump, operating valve, balance  valve, hydraulic lock, hook arm main operating cylinder, sleeve arm inner  sliding

Cylinder, hydraulic oil pipe, hydraulic oil tank

System  rated pressure

22MPa

Hydraulic  tank capacity

120L

Job performance parameters

Regular  hook up

T

16T

Maximum horizontal sliding distance of hook arm

mm

800/1000mm

Oil  pump displacement

Ml/r

80Ml/r

Hook  box time

s

≤50

Unloading  time

s

≤50

Dump  Angle

.

≥50

Hook  center height

mm

1570

Rail  width

mm

1060

Control  voltage

V

24V
