SINOTRUK Duty Truck

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

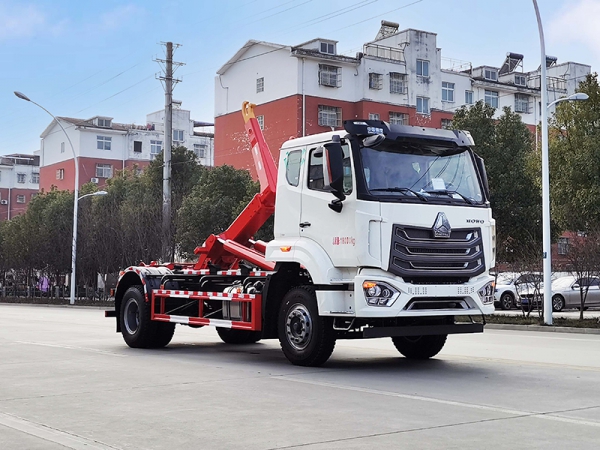

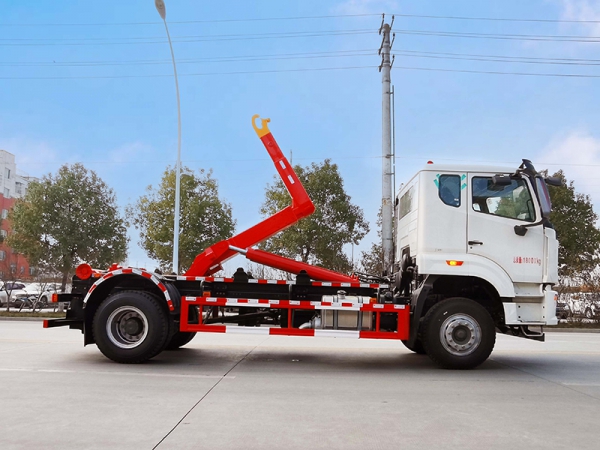

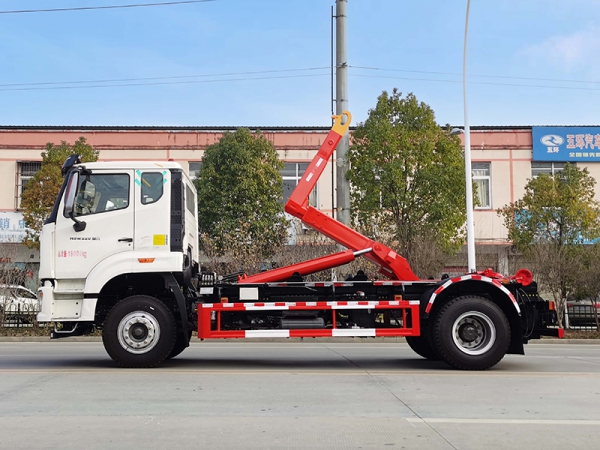

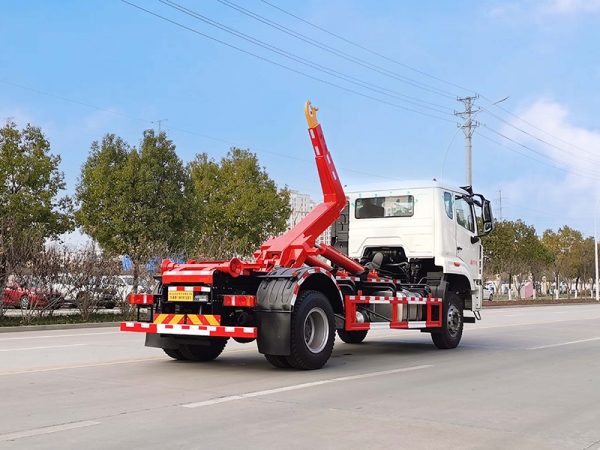

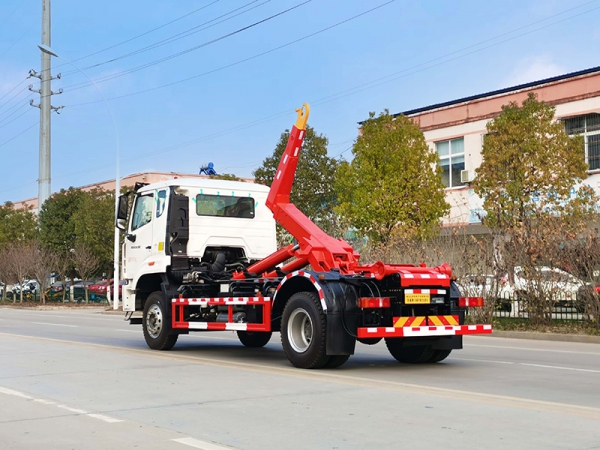

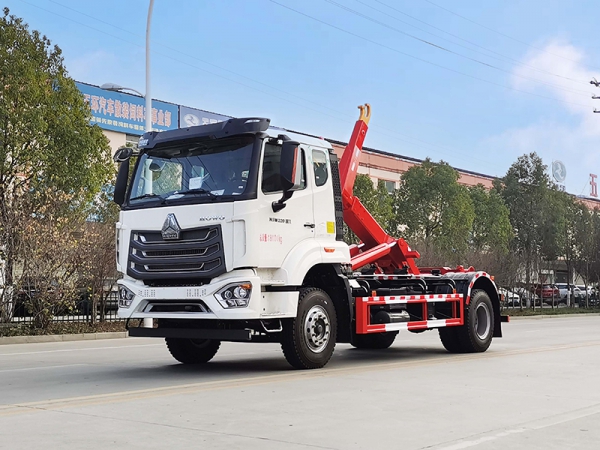

SINOTRUK Duty Truck-Product Pictures

SINOTRUK Duty Truck SINOTRUK Duty Truck SINOTRUK Duty Truck SINOTRUK Duty Truck SINOTRUK Duty Truck SINOTRUK Duty Truck

SINOTRUK Duty Truck-Product Parameters

product name

SINOTRUK H OWO compartment  detachable garbage truck



Vehicle parameters



Rated occupants

3 people

Overall vehicle size (mm)

7920×2550×3300

Total mass (kg)

18000

Curb weight (kg)

7950

Rated mass (kg)

9920

ABS anti-lock braking system

have



Chassis parameters

Chassis brand/series

SINOTRUK H OWO

model

ZZ1187K511JF1

Wheelbase (mm)

4500

Tire specifications

10.00R20 steel tire

Fuel type

diesel fuel

Emission Standards

GB17691-2018 Country VI

engine

WP4.6NQ220E61

gearbox

8 gears





pull  arm

Hook  manufacturer

Jiafeng Co., Ltd.

Hydraulic system

Type

Electric--Gas--Liquid



Main  components

Hydraulic oil pump, operating valve, balance  valve, hydraulic lock, hook arm main operating cylinder, sleeve arm inner  sliding

Cylinder, hydraulic oil pipe, hydraulic oil tank

System  rated pressure

22MPa

Hydraulic  tank capacity

120L



Job performance parameters

Regular  hook up

T

16T

Maximum horizontal sliding distance of hook arm

mm

800/1000mm

Oil  pump displacement

Ml/r

80ml/r

Hook  box time

s

≤50

Unpacking  time

s

≤50

tipping  angle

.

≥50

Hook  center height of arm hook

mm

1570

Rail  width

mm

1060

control  voltage

V

24V



SINOTRUK Duty Truck-Details
