一、Introduction to garbage trucks with removable
compartments

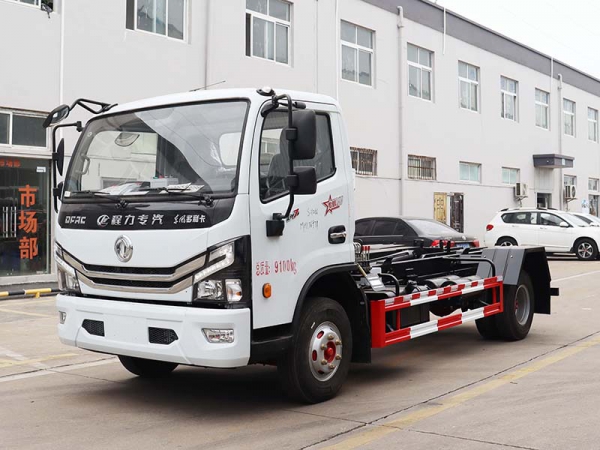

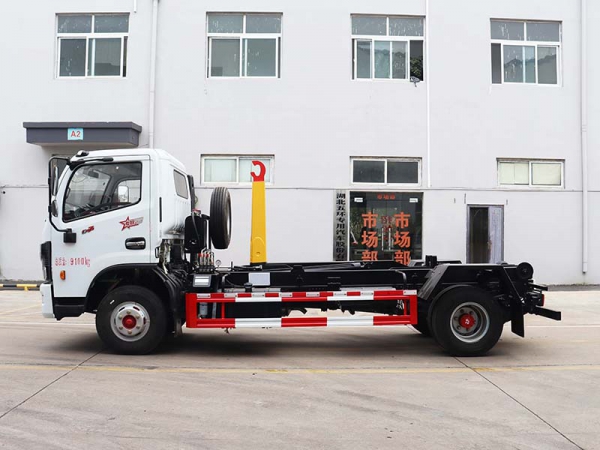

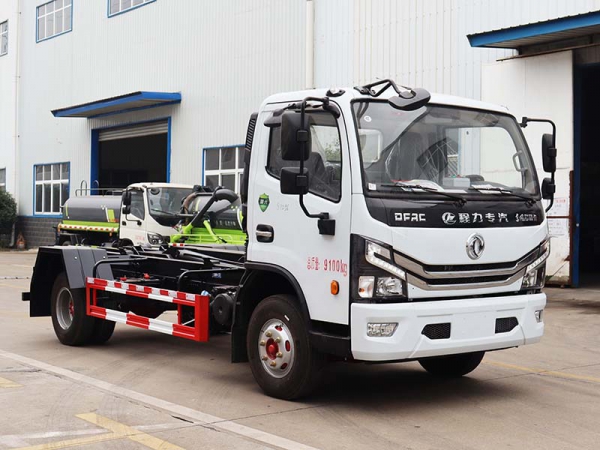

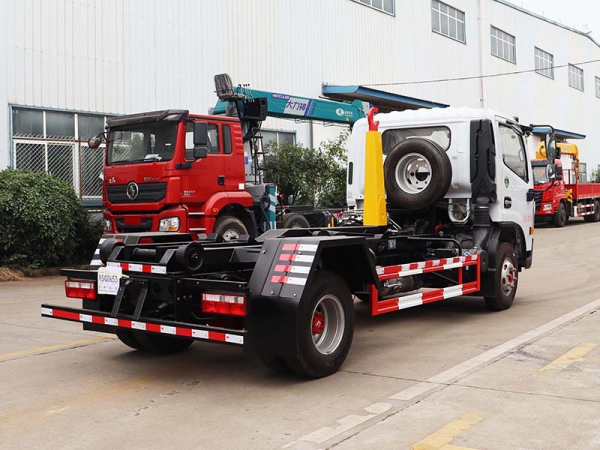

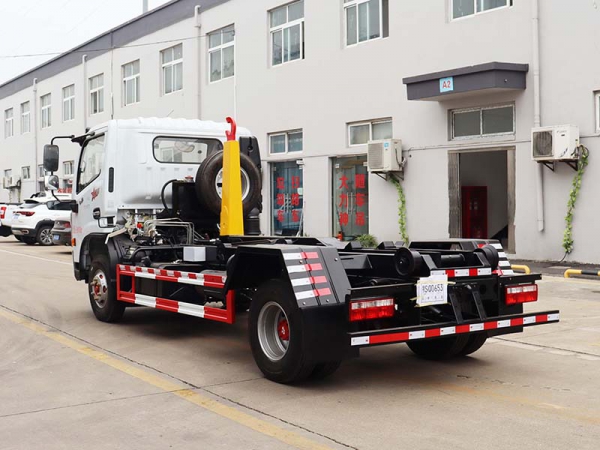

The hook arm garbage truck is also called a detachable
compartment garbage truck. It is a retractable hook arm with a high-tech
design, which can realize the secondary hoisting of the garbage compartment. It
can be lifted up and lowered by itself, and the garbage can be dumped by
itself. The vehicle has a simple structure, stable and convenient operation,
high loading and unloading efficiency, high degree of mechanization, and saves
manpower. One vehicle can carry multiple large compartments, which can effectively
avoid secondary pollution during loading and unloading.
The hydraulic cylinder is produced by Chengli original
factory, has a long service life, guaranteed after-sales service, and requires
no maintenance. The rollers at the bottom of the box are cast in one go and
have high strength and are not easily damaged. The self-unloading of garbage in
the box can be completed through the hydraulic mechanism, which is convenient
and reliable. The vehicle comes with the vehicle certificate, chassis certificate,
national unified motor vehicle home invoice, vehicle tools, vehicle warranty
manual, and national service station contact book.
Main advantages: The garbage collection method is
simple, efficient, environmentally friendly (no secondary pollution), reliable
quality, low failure rate, easy maintenance, and low operating costs. It is
widely used in municipal sanitation, municipal administration, factories and
mining enterprises, property communities, residential areas with large amounts
of garbage and concentrated garbage, and urban street garbage disposal.
二、Configuration instructions
Vehicle model | 5185ZXXEQ6 |
Chassis model | EQ1185LJ9CDE |
Wheelbase | 4500mm |
engine model | D4.0NS6B195 |
Engine power | Cummins 195 HP |
Dimensions | 7160/4500/1260/1400 |
curb weight | 7100,7400 |
Maximum total mass | 18000kg |
Rated contained mass | 10770,10705,10470,10405 |
Operation method | Electronic control/manual |
Chassis configuration: Cummins 195 horsepower, Fast
8-speed gearbox, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 tubeless tires,
250 beam, air brake, air conditioning, electric doors and windows, central
locking. Upper body configuration: Made of high-quality
high-strength carbon steel plates, the hook arm system is a telescopic arm
with hydraulic outriggers, manual and autonomous operation, and remote
control operation. The pulling arm force is not less than 15 tons, and the
rear outriggers are 8cm above the ground. |
[Body configuration] |
Control System | Remote control + manual operation, fast and safe,
proprietary technology, industry leading |
Hydraulic system | The cylinders, pumps and valves are specially
designed by our company and produced by well-known domestic factories. They
are reasonably matched and cost-effective; imported seals are used in key
parts, with stable performance and reliable quality. |
safety protection | (1) The main cylinder is specially equipped with a
built-in two-way unloading valve, which effectively reduces the system
pressure at the end of the stroke and protects the entire hydraulic system
and the pull arm for durability. |
(2) The lifting system is equipped with a balancing
device, which can move at a constant speed regardless of no-load or heavy
load, to avoid damage to vehicles or equipment caused by strong impacts; |
(3) The hydraulic system and each branch oil circuit
are equipped with two-way overload protection, and the rated pressure is
adjusted according to the actual working conditions of each moving part to
effectively avoid abnormal vehicle damage caused by system overload or
improper use; |
(4) The hydraulic
system is equipped with an oil line explosion-proof locking device to prevent
potential safety hazards due to oil pipe bursts and ensure the safety of
personnel and vehicles; |
(5) The upper part
of the pulling arm is equipped with a reinforced hydraulic box locking
device, which can be used correctly to ensure transportation safety. |
interlock protection | Each action is associated with interlocking
protection to prevent hydraulic or mechanical failures caused by
misoperation, eliminate potential safety hazards, and extend the service life
of the vehicle. |
Pull arm structure | The tensioning arm structural parts are made of
high-strength steel, with special partial treatment, which has strong bearing
capacity and is not easy to deform. |
arm tops | The upper arm tops
have been polished and rust-removed, and painted through multiple processes
to ensure that the appearance and color meet the requirements; the upper arm
top assemblies have undergone special bench tests and heavy-duty load tests
to ensure quality. |
