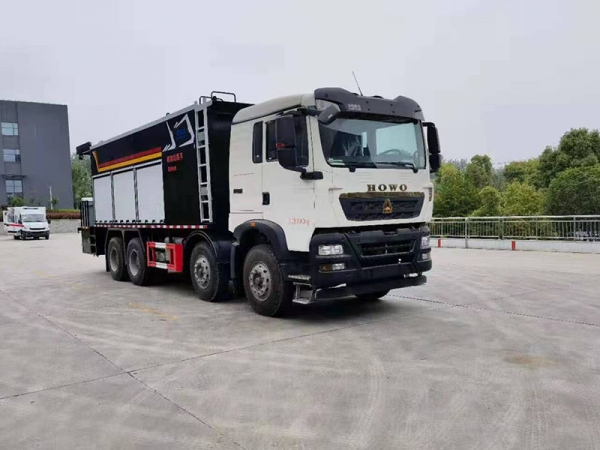

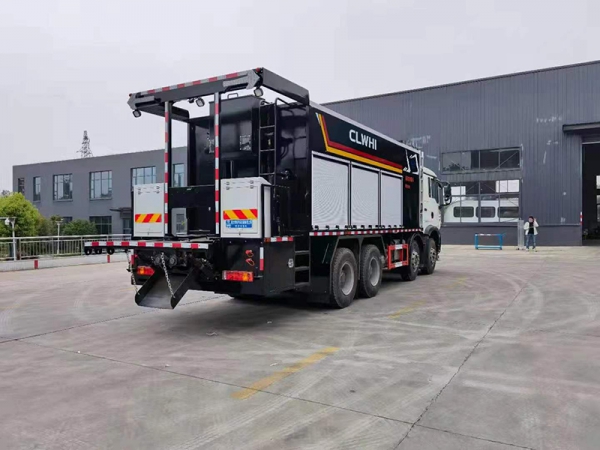

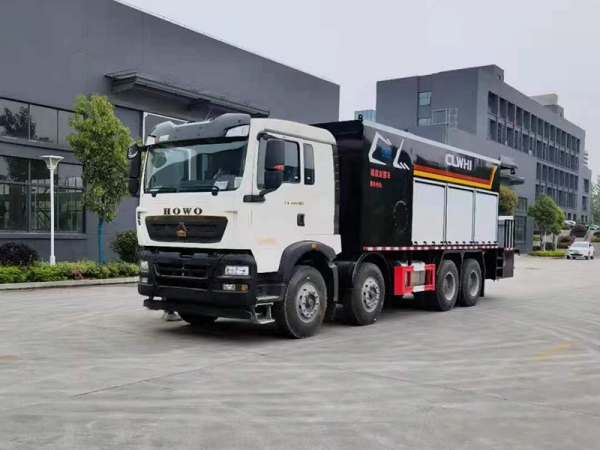

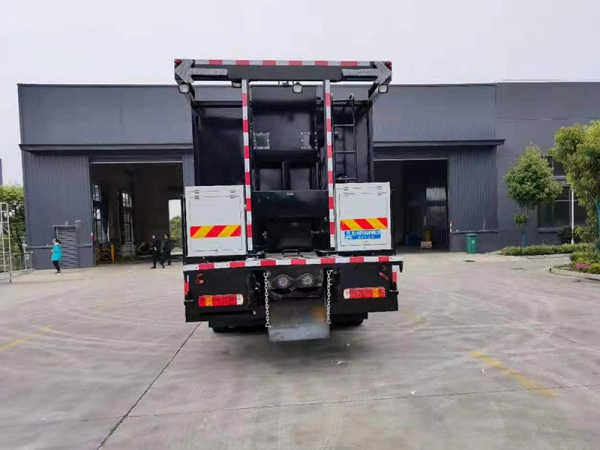

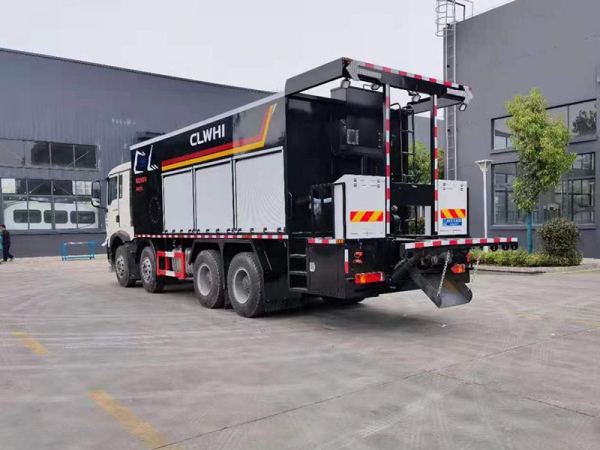

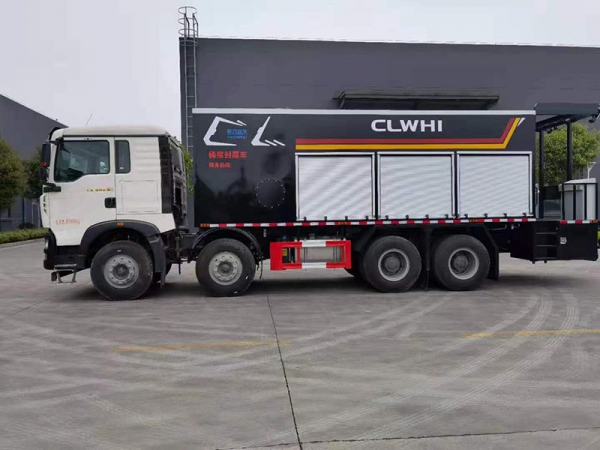

SINOTRUK Duty Vehicle Front Four Rear Eight Thin Slurry Sealer Trucks

1

Car chassis

1

Sinotruk Howo

2

Auxiliary engine

1

Cummins 140 HP

3

Hydraulic pump

2

pike

4

Cement box motor

1

Eaton/Danfoss

5

Belt conveyor reduction motor

1

Han Bamboo

6

Paving box/asphalt pump motor

3

Eaton/Danfoss

7

Asphalt, water level gauge

2

Vidias

8

Stirring motor

1

Eaton/Danfoss

9

Control Valve

Germany Rexroth

10

Hydraulic accessories

1

Germany Rexroth/Taiwan Northern Precision Machinery

11

asphalt pump

1

American Weeknd

12

water flow meter

1

Shanghai

13

water pump

1

Cheng Liwei

14

High pressure pumps

1

Shanghai

15

Vibration motor

1

Wolong

16

Control System

1

Chengliwei special controller

17

stir pot

1

Cheng Liwei

18

paving box

1

Cheng Liwei

19

sensor

1

Turk, Germany

Auxiliary power system

factory

/

Cummins

Output Power

kw/(r/min)

/

Drive mode

/

Fully hydraulic drive

emulsified asphalt system

emulsified asphalt tank

l

4200

Maximum asphalt flow

l/min

270

Measurement method

/

Hall sensor/pump speed adjustment

Asphalt pump insulation method

/

Hot water insulation

water system

water tank

L

4200

maximum water flow

L/min

350

Measurement method

/

Flowmeter display/pump speed adjustment/valve  adjustment

stone

system

Stone warehouse (full warehouse)

M³

14

Conveyor belt bandwidth

mm

550

Stone conveying capacity

kg/min

2200

Adjustment method

/

Speed adjustment

Anti-clogging device

/

DC vibration motor

cement

system

cement silo

M³

0.5

Cement delivery volume

kg/min

10-60

SINOTRUK Duty Vehicle Front Four Rear Eight Thin Slurry Sealer Trucks-Details
