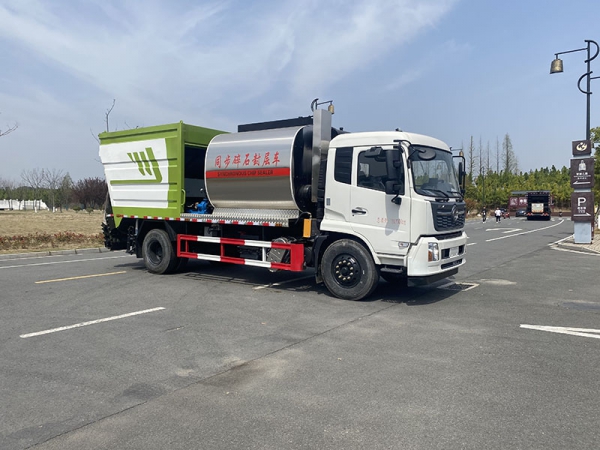

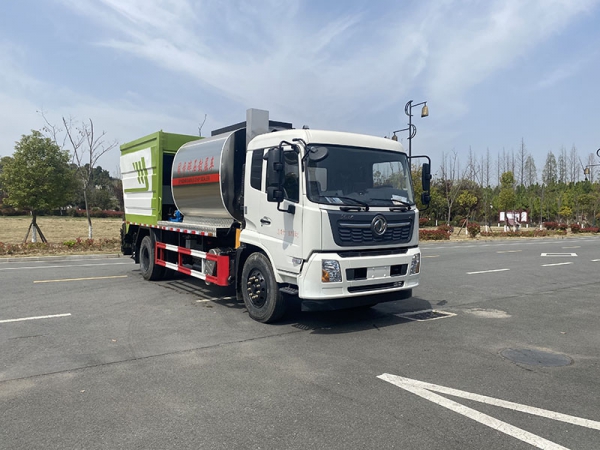

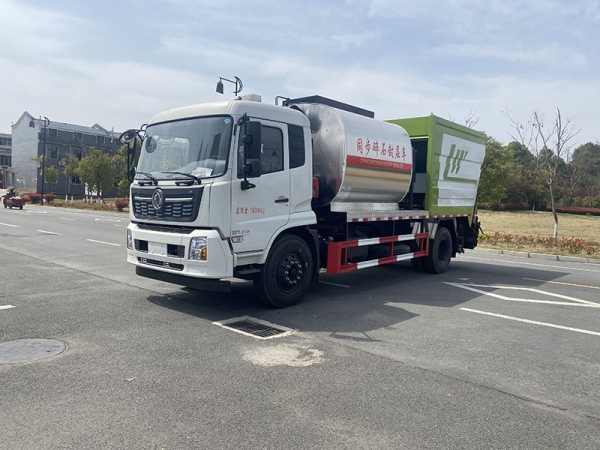

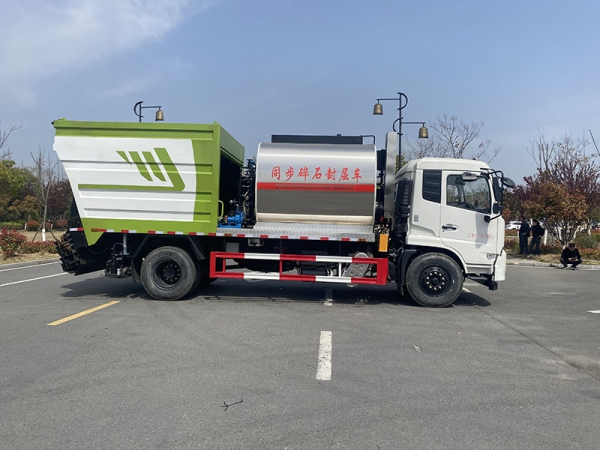

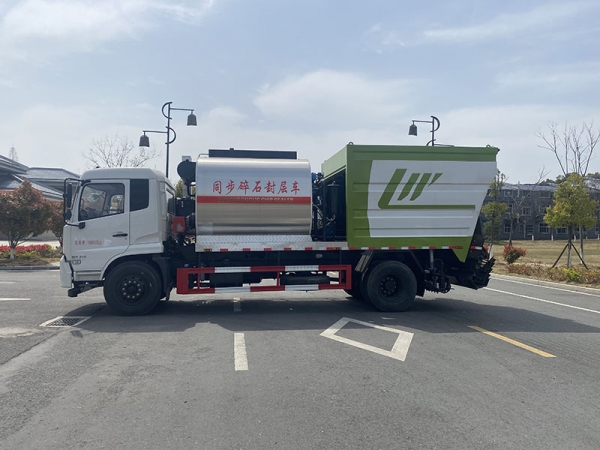

TIANJIN Synchronized Gravel Sealer

1

Car  chassis

DFH1180EX8

Chassis

Dongfeng Tianjin 4×2

2

engine

B6.2NS6B2 10

Cummins 210 horsepower,  National VI

3

Wheelbase

5000mm

4

Asphalt  tank capacity

6 cubic meters

Inner tank volume

stone silo

8 cubic meters

V- shaped hopper ( gravity  gravity flow )

5

Thickness  of insulation layer

50mm

Rock  wool insulation

6

Covered  in stainless steel

1m

1.2 thick stainless steel plates

7

PTO

Full power take-off

Fully hydraulic power  take-off drive, no auxiliary power required

8

Duplex gear pump

GPC4-50-TJHD

Hydraulic  system

Tianjin Tianji

9

Proportional  valve

EF RD - G 03-160-5-31

Northern Seiki

10

Asphalt  pump motor

HZH 05- 110- BD 40

Ningbo Han Bamboo

Hydraulic pump motor

GM5-10

Tianjin Tianji

11

asphalt  pump

QGB 680

Asphalt  Spraying System

Shanggui,  950 L/min

12

Number  of nozzles

30 pieces

The  control method is: 1 control 1

13

burner

G20 (200,000 kcal/hour)

Heating  system

Riyadh

14

Thermal  oil pump

RY32-32-160

Hebei

15

Control  system method

Cab touch screen computer  control

Control System

The control system adopts:  American Salinjo control module, which runs faster and smoother and has a low failure  rate.

16

speed  sensor

Ni5-G12

Turk,  Germany

17

Temperature Controller

Pt100

Shanghai Xinghui
