Vehicle configuration parameters: |

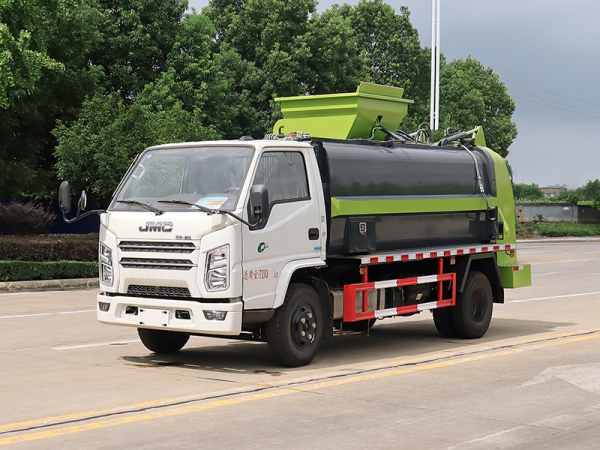

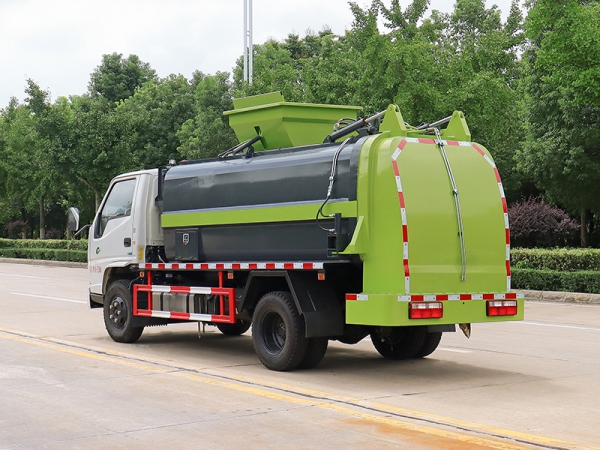

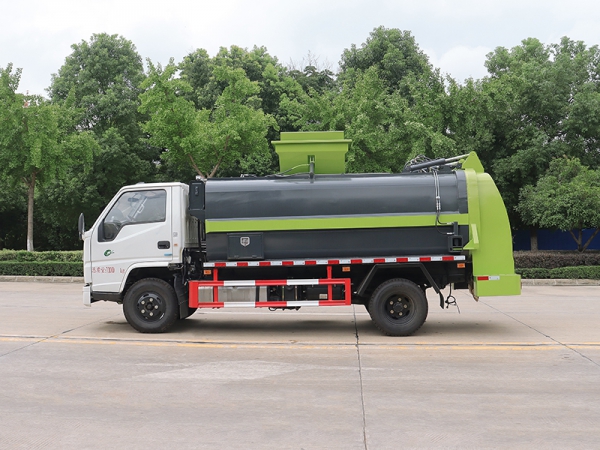

product name | Jiangling kitchen garbage truck |
Overall vehicle dimensions (length × width ×
height) | 6100×2030×273 0 |
total mass | 7300kg |
curb weight | 462 0Kg |
Wheelbase | 33 60mm |
Approach / departure angle | 20/15 ° |
Chassis configuration parameters: |
Chassis model | JX1071TG26 |
Cab color | jade white |
Drive form | 4 × 2 |
engine model | JX493ZLQ6C |
Engine power | 90kw |
Engine horsepower | 1 23 HP |
gearbox | Wanliyang fifth gear |
Emission Standards | GB3847-2005, GB17691-2018 Country VI |
Front axle/rear axle | 1.8T / 3.5T |
tire | 7.00R16 steel wire tires (7 pieces) |
other | 188 double-layer frame, power steering, air
brakes, ABS, electric glass, central locking, remote control key, original
air conditioner, multi-function steering wheel, front LED daytime running
lights, and other Dongfeng chassis standard features. |
Dedicated configuration parameters: |
Effective volume of the box | About 5m³ |
Effective volume of sewage tank | About 300L |
Effective volume of clean water tank | About 230L |
Box shape | New square |
Box material | Q345 manganese steel (side 3 and bottom 4) |
Compression ratio | ≥1.5 |
Loading cycle time | ≤30s |
shirk garbage time | ≤35s |
control method | automatic / manual |
Hydraulic system pressure | 18MPa |
Multi-way directional valve | Jiangsu valve |
Hydraulic oil pump | Hefei pump |
Hydraulic cylinder | Hubei cylinder |
Conversion power take-off | Jiashan, Zhejiang |
Electronic control system (PLC one-key
cycle) | Imported from Taiwan |
engine power control | Fully automatic control |
Other dedicated functions | 1. Push shovel unloading (with one-way
compression function, dry and wet separation function, without lifting
function) 2. Optional self-unloading (with lifting
function, without compression and dry and wet separation functions) 3. The push shovel slider and skateboard
slider are made of high-quality MC nylon, which is self-lubricating and has
high wear resistance. 4. The hydraulic rear cover has a sealing
strip (to prevent leakage and secondary pollution), the rear door is
hydraulically locked (the rear door locking and rear cover switch operations
prevent misoperation), and the tailgate lift cylinder is equipped with a
balance valve (safety protection) 5. Comes with a central self-cleaning device
(clean water tank, hydraulic motor, high-pressure water pump, high-pressure
water gun) 6. Centralized electronic control inside the
cab and outside the body (programmable PLC electronic control system) 7. Car body high profile lights/side
lights/working lights |

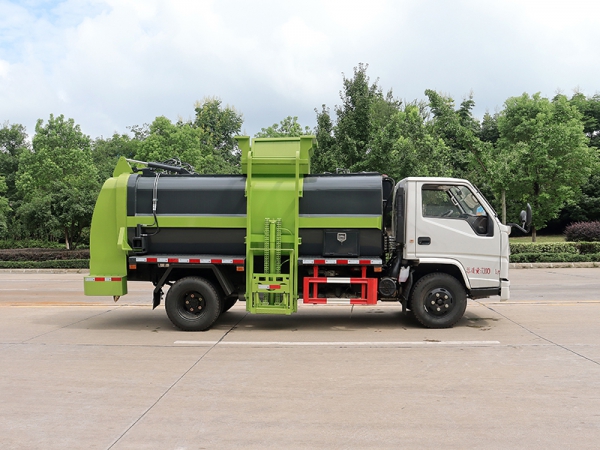

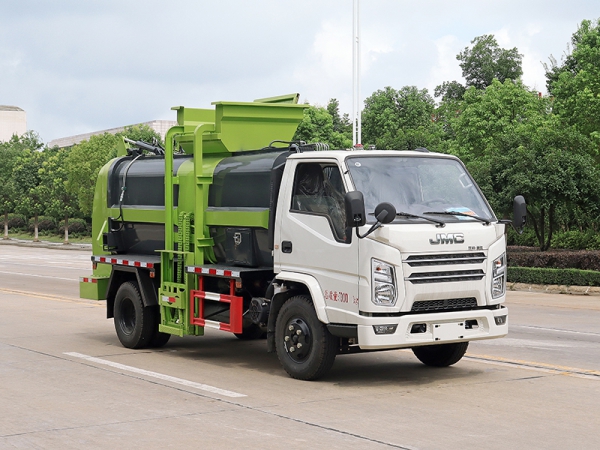

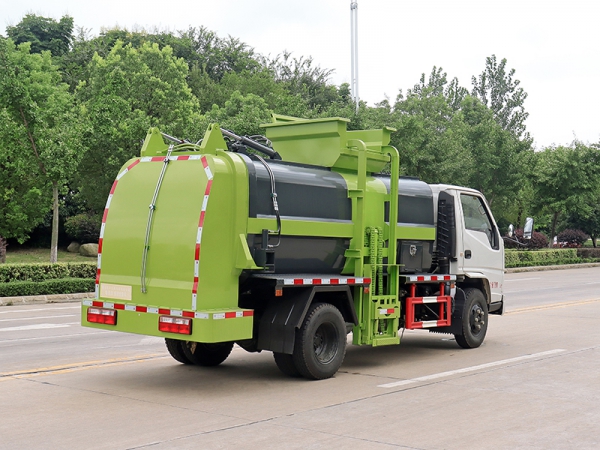

Loading mechanism (see picture below for details) | 1. New hydraulic chain-type lifting
mechanism (more stable than simple pull-rod type, which is easy to deform) 2. Hydraulic switch of feed port cover (with
anti-misoperation) 3. Side-mounted standard 120L/240L square
plastic trash can |
Optional equipment (see picture below for details) | 1. 304 stainless steel plate 2. Sealed discharge (auger device) 3. Heating system (fuel system circulation
heating) 4. Electronic meter (with machine for
printing receipts) 5. Oil filter (with electronic induction
blockage alarm) 6. Wireless remote control (100 meters remote control
distance) 7. Operation monitoring and reversing images
(safe operation) |
|
|
|
