serial number | project name | The main technical parameters |

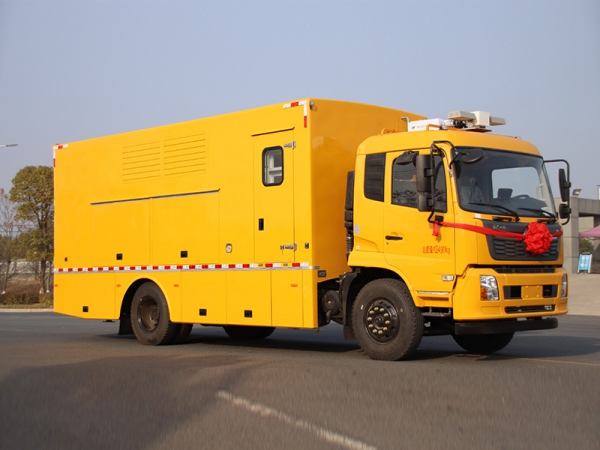

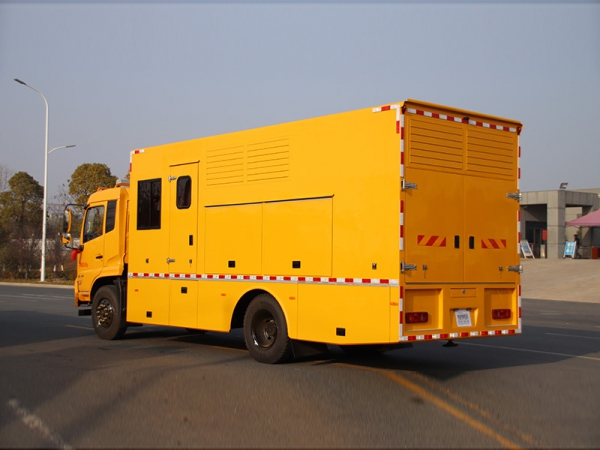

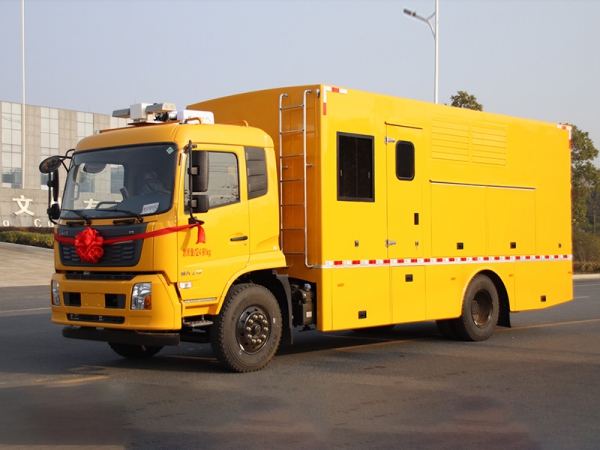

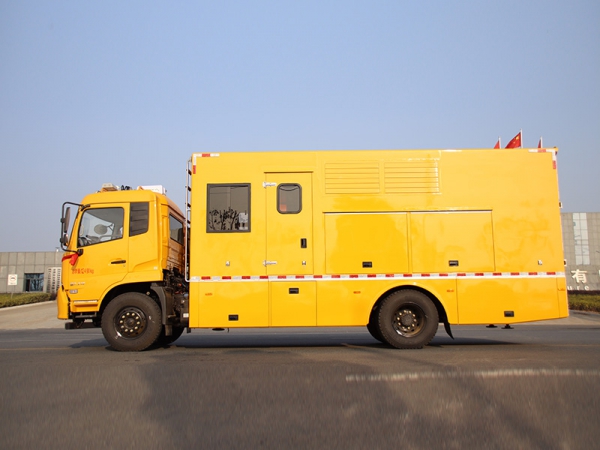

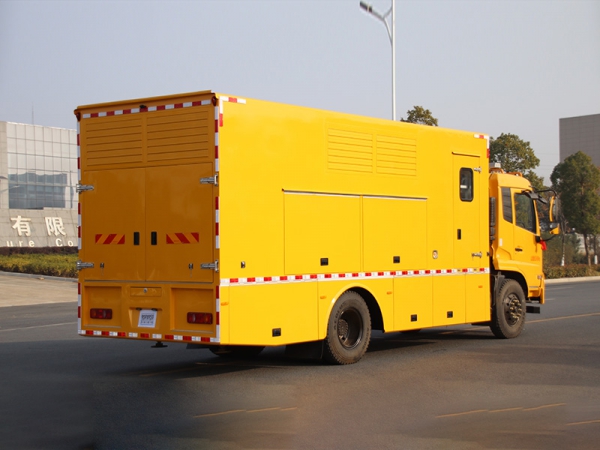

1 | vehicle | 1. The chassis adopts Dongfeng Tianjin: DFH1120E1 , engine model: B6.2NS6B230 , engine power 169kw, fuel type: diesel. Emission Standards: GB17691-2018 Country VI. 2. Total vehicle mass: 12490 KG, wheelbase 4700mm, vehicle length: 8840mm, width: 2500mm, height 3530mm. 3. The cab is equipped with air conditioning, power steering and reversing image. 4. Emergency lighting is installed on the top of the cab, with a lifting height of 1.8m and 360-degree rotation. 5. A ladder is installed in the carriage to facilitate roof inspection. 6. Equipped with standard storage shelves 7. The color of the vehicle is engineering yellow. 8. The vehicle has been announced by the Ministry of Public Information and can be legally registered at the place of purchase. |
2 | car | 1、Car body dimensions: 6300×2500×2470 mm. 2、Car body: It has transportation, rain-proof, fire-proof, flame-retardant, dust-proof, rust-proof, dry-reducing, shock-isolating and long-term earthquake-resistant structure. The outer steel material is high-quality cold-rolled steel plate with smooth surface treatment, and is lined with high-quality cold-rolled steel plate bent frame, which has strong strength and reasonable weight. 3. The car body is designed with an integrated steel structure and a flat top. The car body adopts the form of a skeleton sandwich. The outer skin is made of 1.5mm thick high-quality anti-rust treated automobile-specific cold-rolled steel plates. The middle frame is welded with anti-rust treated steel pipes. The top layer, the inner and outer layers of the side panels are filled with long Time uses fire-retardant and environmentally friendly sound-absorbing cotton that is harmless to the human body. The outer layer is covered with a layer of flame-retardant metal cloth, and the interior uses 0.8mm thick mesh panels. The bottom plate adopts a steel structure bottom frame, and the upper surface is paved with a 2mm thick pattern steel plate. 4. The vehicle body adopts an overall covering type. The lower parts of both sides of the car body are equipped with skirts and a fully enclosed structure. The top is arc-shaped. The tail has turn signals, brake lights, tail lights, and fog lights. The surface of the car body is smooth and flat. . The front part of the carriage is the lounge, and the rear is the crew room. The left and right sides of the crew room are equipped with air intake and exhaust louvers, a unit access door, a boarding step ladder below, and a rear double door at the rear end of the carriage. The lower part of the exhaust louver on the right side is the maintenance observation hatch. The left lower wall is equipped with tool boxes and functional hatches. The lower right side is equipped with a car fuel tank cabin, a hydraulic control cabin, etc. 5. Standard storage shelves are installed at the rear of the carriage so that water hoses, extension cables and other accessories can be stored in an orderly manner without interfering with each other, making emergency drainage and rescue operations faster and more effective. 6. Car body spray paint: engineering yellow, the same color as the front of the car; 7. The service life of the car body is more than 10 years. |
3 | Mobile power system | 1. The generator set adopts Dongfeng Yuchai, with a rated output power of 180KW, which can meet the power needs of water pumps and vehicle equipment. 2. The system has a three-phase four-wire system, rated line voltage 380V±10%, phase voltage 220V±10%; speed regulation/level: electronic/G2 level, high-precision electronic speed regulation system. 3. The fuel tank of the unit can meet the continuous use of the generator set for 8-10 hours. 4. Rated output interfaces equal to the number of water pump control cabinets (rated voltage and current match the water pump) 5. Adopt intelligent control system, centralized control, with unit control screen, Chinese interface, which can display water temperature, oil pressure, speed, current, voltage, etc., with automatic obstacle protection function, high-quality electrical components, stable performance, and rear configuration of the box Ground protection device, safe and reliable 6. There is a special place for storing grounding wires and grounding stakes on the vehicle; there are matching copper noses at both ends, length ≥ 10 meters, diameter 25mm 2 1 grounding wire; length ≥ 600mm, diameter ≥ 16mm, one end is sharp and one end has a fishtail screw 1 grounding stake. 7. When the generator set is not suitable, the portable axial flow submersible pump can use mains power and be equipped with a mains power input interface. At the same time, the unit has reserved AC220V and AC380V output interfaces to facilitate construction power consumption. |

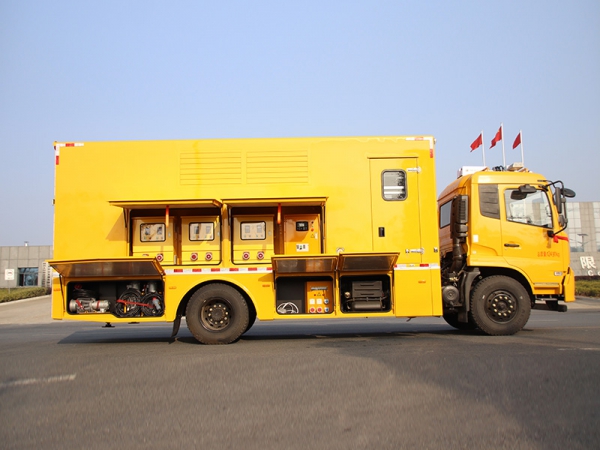

4 | Portable axial flow submersible pump | Portable axial flow submersible pump | 1、Equipped with 6 portable axial flow submersible pumps, each with a displacement of 500m³/h per hour to ensure the overall pumping capacity. 2. The pump body is made of lightweight aluminum alloy, with a dry composite motor. The impeller is made of corrosion-resistant materials and is equipped with a stainless steel filter to prevent garbage clogging. The weight of a single pump is 33 kg. 3. A single portable submersible pump has a flow rate of 500m³/h, a power of 22kw, and a minimum horizontal conveying distance of 100 meters when the head is 10m. 4. The pump body is equipped with a handle for easy transportation by a single person. 5. The pump is equipped with a 20m submersible cable and an additional 20m extension cable. Use IP67 or above waterproof connectors between cables (total length 40 meters, with quick-connect waterproof plug) 6. Equipped with 12 20-meter-long DN200 drainage hoses and equipped with special quick hose connectors and clamps matching the hoses for easy operation. |
Axial flow submersible pump control cabinet | 1、Each water pump is equipped with an independent control system. The control system has a visual operation interface, real-time monitoring of operating parameters, and protections such as leakage, current overload, phase loss, overvoltage, undervoltage, overfrequency, underfrequency, and motor overheating; it can Control each pump individually. 2、Each electrical control cabinet is equipped with 2 quick-plug output ports with a waterproof rating of IP67 or above. 3、Each electrical control cabinet is equipped with a visual observation window and is equipped with a lock 4、The control cabinet adopts waterproof brim, 4-corner sliding universal wheels, portable handle and embedded quick installation design. |
Water outlet hose | Each portable submersible pump is equipped with a 40m drainage pipe (20m/2 drainage pipes, pressure resistance value 0.9MPA). The material is synthetic fiber long-axis braiding, synthetic fiber, and is coated with wear-resistant and waterproof resin inside and outside. It must be wear-resistant and puncture-proof. Foldable and rolled up , all drain pipes are equipped with lightweight plastic quick-connect interfaces for easy operation; |
5 | supporting system | 1、The vehicle chassis is equipped with 4 hydraulic support legs (2 at the front and 2 at the rear). 2. The static load of a single cylinder is 6 tons, and a two-way hydraulic lock is installed. |
6 | Duty room | The front part of the box is the duty room, and the interior is made of luxurious wooden soft packages, equipped with upper and lower sleepers, flip tables, water dispensers, overhead heating and cooling air conditioners, etc. |
7 | Lamps and warning signs | 1. Internal lighting: DC and AC dual-circuit lighting power supply. Ensure that there are no blind spots in the light inside the car. 2. External lighting system: One set of lifting lights is installed on the top of the vehicle. The remote control operation distance is 25 meters. It can rotate and tilt to facilitate night construction. The lifting height is 1.8 meters. The searchlight can rotate up, down, left, and right. Horizontal rotation angle: 360° vertical rotation. Angle: 330°, horizontal and vertical rotation speed: 4r/min, protection grade IP66, can be operated by remote control and wire control, suitable for night working environment. 3. The lamp head power of the lamp is 150W*2, the working voltage is AC220V, the luminous flux is: 22000LM, and the working current of the lamp is 15A. Equipment working environment temperature: -30°~55, with wind resistance of 66km/h. 4. Signal devices should be installed on the outside of the vehicle in accordance with national standards: side marker lights, reflective signs, etc. |
8 | Firefighting | The vehicle is equipped with 2 portable MFZ/ABC4 ammonium phosphate dry powder fire extinguishers. Place it at the rear of the carriage, 300mm away from the rear door of the box to ensure the fastest access. |
9 | other request | Comes with unit tools and chassis tools |
