JIANGLING Teshun short-axle medium-roof diesel custodial ambulance

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

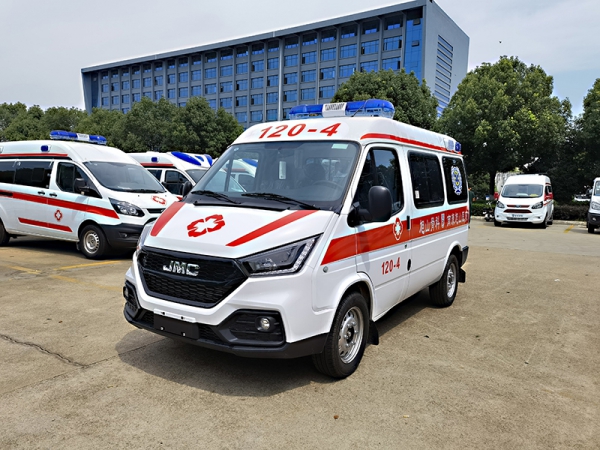

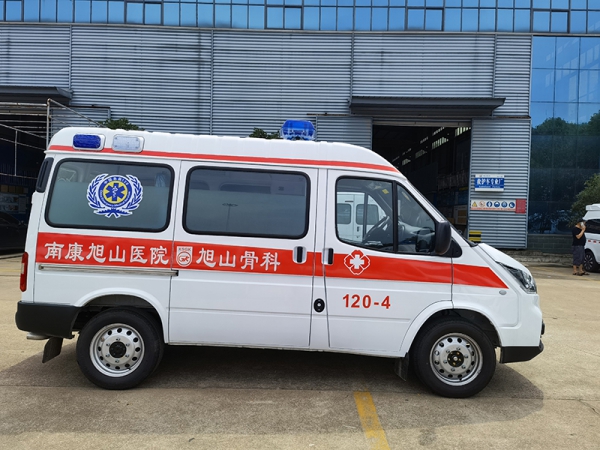

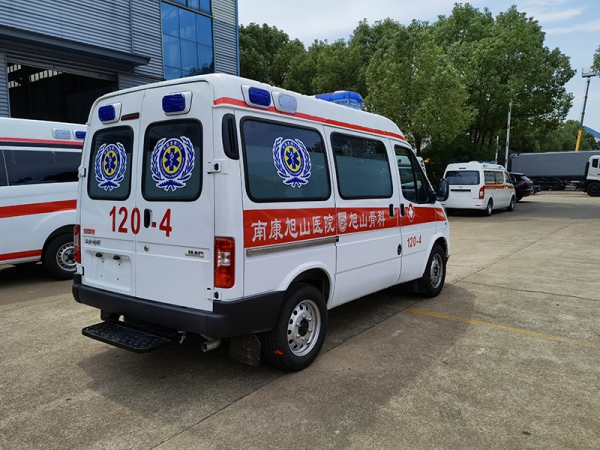

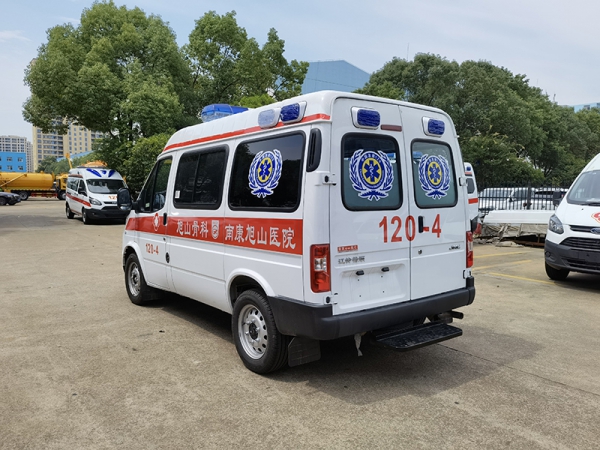

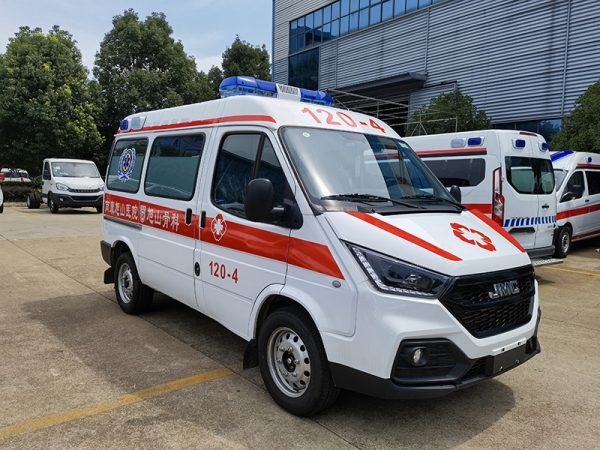

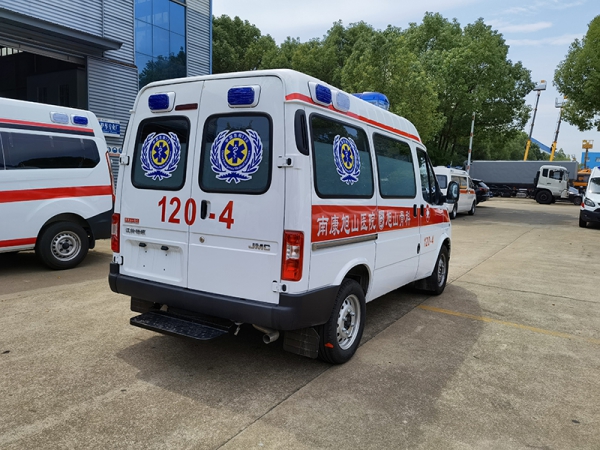

JIANGLING Teshun short-axle medium-roof diesel custodial ambulance-Product Pictures

JIANGLING Teshun short-axle medium-roof diesel custodial ambulance JIANGLING Teshun short-axle medium-roof diesel custodial ambulance JIANGLING Teshun short-axle medium-roof diesel custodial ambulance JIANGLING Teshun short-axle medium-roof diesel custodial ambulance JIANGLING Teshun short-axle medium-roof diesel custodial ambulance JIANGLING Teshun short-axle medium-roof diesel custodial ambulance

JIANGLING Teshun short-axle medium-roof diesel custodial ambulance-Product Parameters

JMC Teshun short shaft mid-top configuration parameters

【The main technical parameters】

Product trademark


Announcement batch

328

product name

ambulance

Product ID

ZPRZ46DK018

Total mass(Kg)

3510

Tank volume (m3)


Rated load mass (Kg)


Overall dimensions (mm)

4900×1972×2385

Curb weight (Kg)

2160

Cargo compartment size (mm)

××

Rated passenger capacity (person)

5-8

Total mass of quasi-trailer (Kg)


Number of permitted passengers in the cab


Load capacity utilization factor


Approach angle/departure angle (°)

22.1/23.5

Front suspension/rear suspension (mm)

982/883,982/1083

Number of leaf springs

-/3

Steering Type

steering wheel

Number of axes

2

Wheelbase(mm)

2835

Number of tires

4

Tire specifications

215/65R16C

Front wheelbase (mm)

1692

Rear wheelbase (mm)

1700

Axle load(Kg)

1570/1940

Maximum speed (Km/h)

120

other

1. Used for emergency rescue and transportation of  patients; 2. Vehicle configuration: medical equipment cabinets, stretchers,  oxygen bottles, medical blue identification lights, sterilization lamps,  ventilation fans, fire extinguishers and other special devices; 3. The  vehicle is optional with the chassis Wheel cover, blackened headlights,  center grille, rear step plate, tailgate style, the vehicle length is 4900mm  when the rear step plate is optional; 4. ABS controller model: APG3550500G;  ABS controller manufacturer: Zhejiang Asia Pacific Electromechanical Co.,  Ltd.; 5. The maximum net power of the engine is 83kW.

[Chassis technical parameters]

Chassis model

JX6490T-L6 vehicle Jiangling Motors Co., Ltd.

Fuel type

diesel fuel

Emission Standards

GB3847-2005, GB17691-2018 Country VI

engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

JX493ZLQ6

Jiangling Motors Co., Ltd.

2771

85

Internal and external  configuration of the medical cabin


Heating and cooling system

1

High-power direct air  conditioning and heating in the medical cabin


Circuits and electrical  appliances


Alarm and warning systems

1

Long row of police lights  installed on the front of the roof


2

100W siren and handheld  control


1

Strobe lights on left and  right sides


In-car power system

3

Medical cabin second power  supply system


4

Cockpit emergency start  system


5

1000W sine wave inverter  system


6

16A external charging system


7

Integrated circuit integrated  control and protection system


8

AC circuit protection system


9

Medical cabin integrated  rocker switch control panel


10

2 national standard 220V  power ports


1 1

2 national standard 12V power  sockets


12

4 top strip lights


13

1 rectangular disinfection  lamp


14

1 ventilation fan


Oxygen path and oxygen


oxygen supply system

1

2 10-liter medical oxygen  bottles and special shock-absorbing clamps


2

2 oxygen pressure reducing  valves


3

Hidden oxygen pipeline system


4

2 national standard oxygen  ports


5

1 humidification bottle


Medical cabin production


Inside the medical cabin

1

Original car interior  (original cab air conditioner, rear medical cabin air conditioner)


2

Polymer material  special-shaped middle partition wall


3

Sliding observation window in  the middle partition wall


4

Upper left PVC wall cabinet


5
