Foton G9 custodial ambulance

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

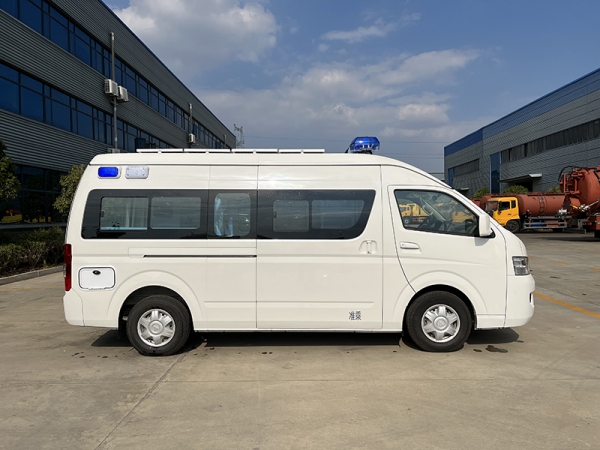

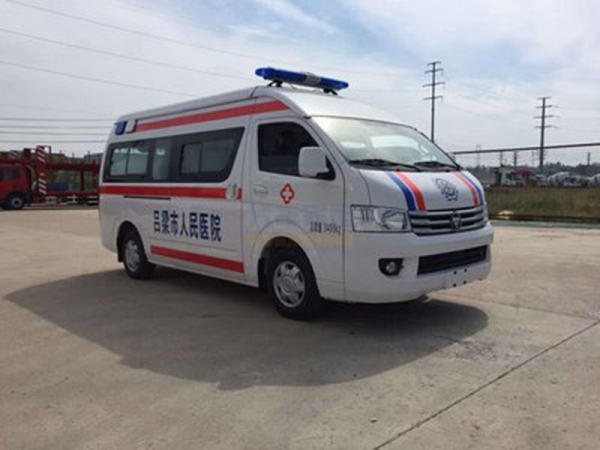

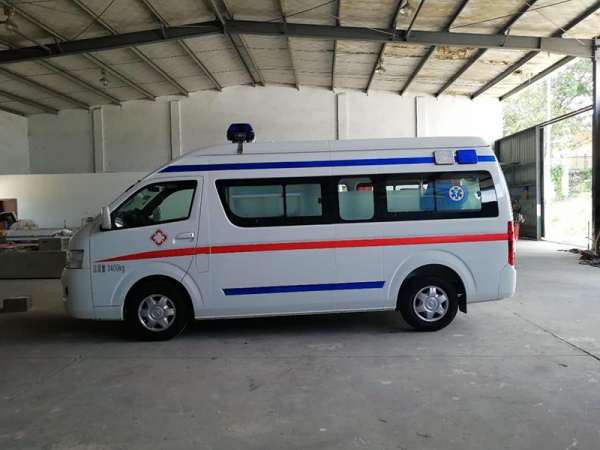

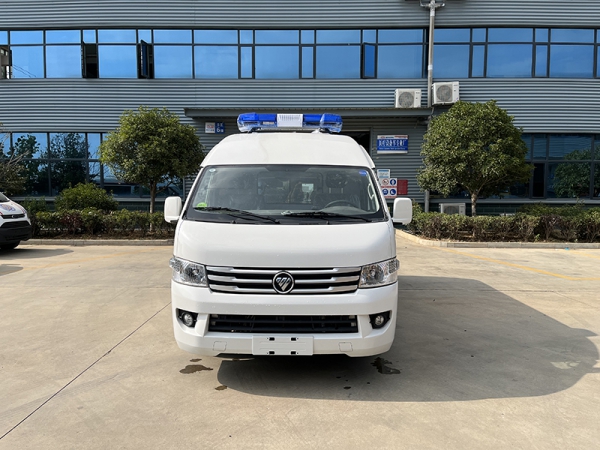

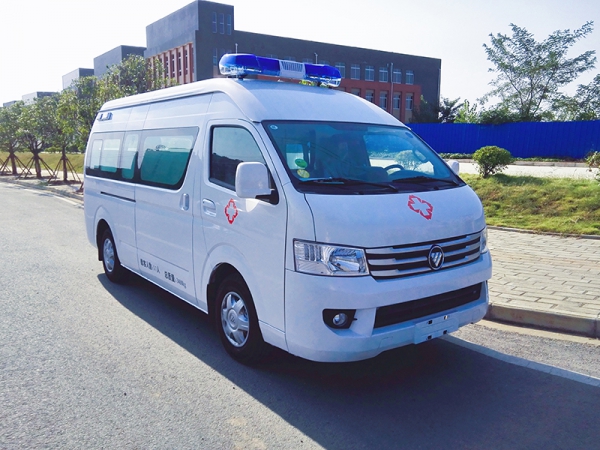

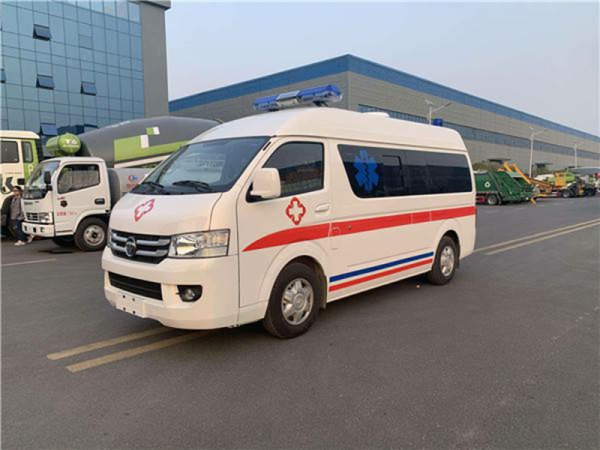

Foton G9 custodial ambulance-Product Pictures

Foton G9 custodial ambulance Foton G9 custodial ambulance Foton G9 custodial ambulance Foton G9 custodial ambulance Foton G9 custodial ambulance Foton G9 custodial ambulance

Foton G9 custodial ambulance-Product Parameters

Parameter configuration

vehicle size

Appearance size (mm)

5380×1920×2480 (length×width×height)

Rescue cabin size (mm)

××

Wheelbase (mm)

3110

vehicle quality

Vehicle curb weight (kg)

2330

Total mass of full load (kg)

2860

Engine parameters

Engine type

4k22D4M

Fuel type

gasoline

Displacement (T)

2.4

Power(Kw)

118 160 HP

Emission Standards

Country  VI

suspension system

front suspension

Front suspension MacPherson independent suspension

rear suspension

Anti-shock rear suspension leaf spring suspension

Braking System

front brake

Front ventilated disc

rear brake

Rear solid disc

gearbox

gearbox

5-speed  manual transmission

speed

Maximum  speed (km/h)

150

Drive System

Drive  mode

rear drive

seat

number  of seats

5-8 people


Monitoring ambulance configuration

name

Configuration

quantity

warning  system

Standard long row of LED blue  police lights on the front of the car

1 set

Hidden police light (including  police light alarm controller, handheld control handle with shouting  function)

1 set

100W loudspeaker (sound size  adjustable)

1 set

The LED flashing light at the  rear of the car will be determined based on the announcement picture.

1 set

Paste blue or red reflective film  and first aid signs around the body (can be designed according to customer  needs)

1 set

Medical  cabin modification

(Medical  monitoring type modified PVC interior)

Middle partition assembly  (including sliding window)

1 set

Medical non-slip, acid and alkali  resistant, wear-resistant PVC floor

1 set

The top of the medical cabin is  made of environmentally friendly PVC sheets

1 set

medicine cabinet

1 set

Wall cabinet (light and small  items)

1 set

Oxygen bottle cabinet (for oxygen  bottles)

1 set

Equipment cabinet

1 set

emergency cabinet

1 set

2/3 translucent frosted film on  the medical cabin window glass

1 set

oxygen  supply system

10L oxygen bottle

2 sticks

Oxygen bottle fixed bracket

2 sets

Double gauge pressure reducing  valve

2 sets

High pressure medical grade  oxygen tube

2 sets

Oxygen terminal interface

2 sets

Humidification bottle

2 sets

Stretcher  and seating system

Domestic automatic loading  stretchers (some models are equipped with car guide plates) and stretcher  guide rails

1 set

Doctor's chair and family chair  (bench or multiple independent seats) including seat belts and leather

1 set

Infusion  system

Fixed-point folding infusion  hanger (or slide rail infusion hanger)

2 sets

Lighting  system

Car 12V/LED lighting

4 lamps

door light

1 cup

Infusion spotlight

2 cups

Disinfection  system

Ultraviolet disinfection lamp:  12V vehicle-mounted ultraviolet disinfection lamp

1 cup

intercom  system

Front and rear cabin intercom  system: Hands-free intercom installed in cockpit medical cabin

1 set

Electronic  control system

Cockpit integrated host fuse box

1 set

Medical cabin integrated control  panel

1 set

Vehicle-mounted 12V/1000W pure  sine wave inverter power supply

1 set

5 hole socket

3

security  system

Medical cabin vehicle-mounted 1KG  fire extinguisher

1 set

safety handrail

1 set

Stainless steel waste bucket

1 set

Medical cabin anti-collision soft  bag

1 set

Air  conditioning ventilation system

Medical cabin air conditioner,  warm air

1 set

Vehicle-mounted anti-shock  ventilation fan

1 set



Foton G9 custodial ambulance-Details
