Isuzu 4-axle mixer

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

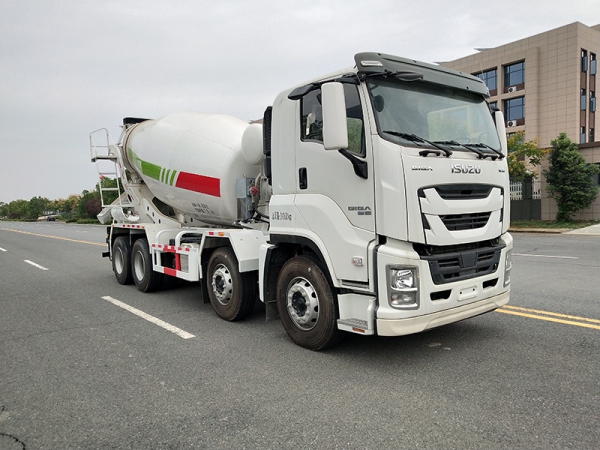

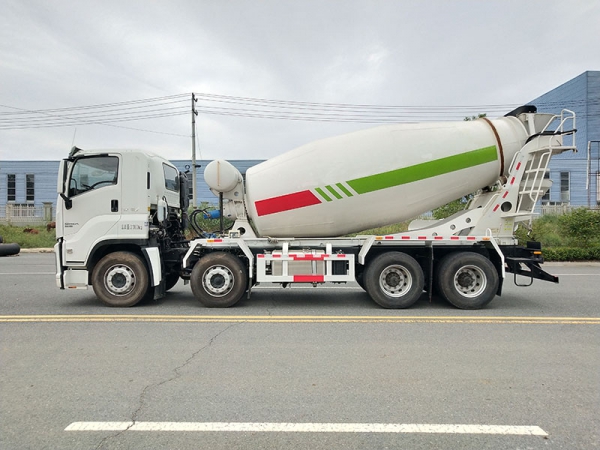

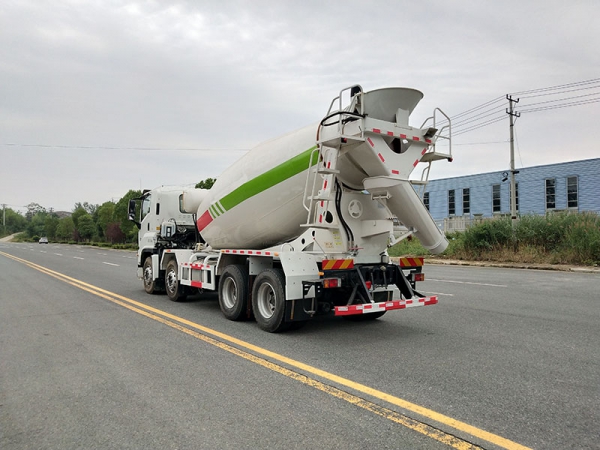

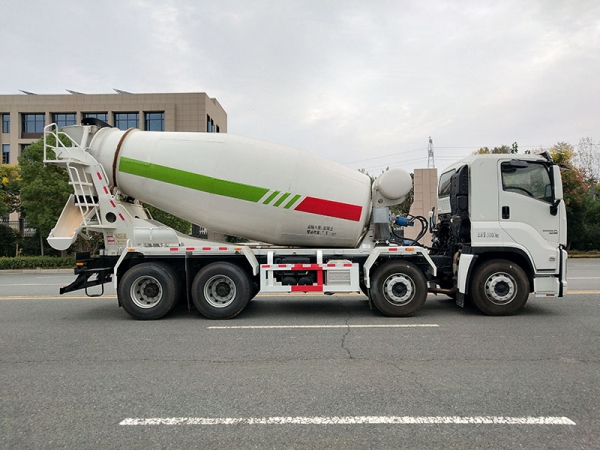

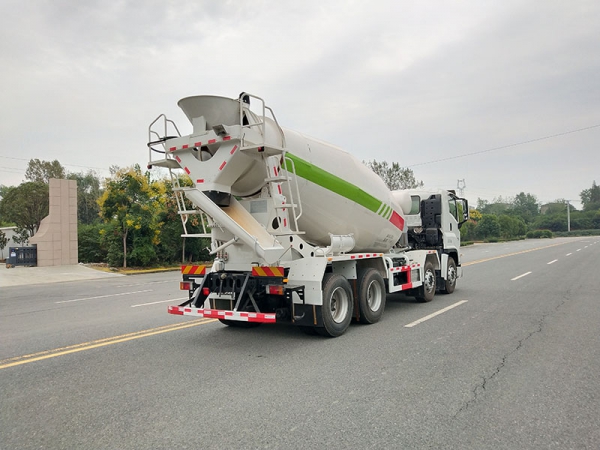

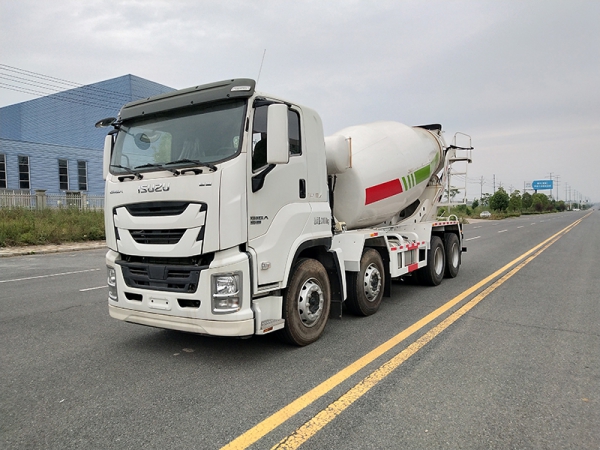

Isuzu 4-axle mixer-Product Pictures

Isuzu 4-axle mixer Isuzu 4-axle mixer Isuzu 4-axle mixer Isuzu 4-axle mixer Isuzu 4-axle mixer Isuzu 4-axle mixer

Isuzu 4-axle mixer-Product Parameters

Concrete mixer truck product configuration

Chassis configuration parameters

brand

ISUZU


model

6UZ1-TCG61


engine

6UZ1-TCG61 engine Euro III


gearbox

10 gears


Wheelbase

1850+2980+1370


Drive axle

MCX16ZG double bridge (drum)


Maebashi

VGD95 front axle (drum)


tire

11.00R20 18PR


bumper

high position


tank

400L


Drive form

8x4


Tank and body configuration parameters

Effective volume of tank (m³)

16


Tank material

Q355( 6 mm)


Header

Q355( 7mm )


blade

Double spiral curved surface + wear-resistant strip (3mm)


pumps, motors

CSIC90/INTPAP90


Reducer

PMP/Bonfiglioli


heat sink

Xinxiang Jiuhe 18L


Front and rear supports

Plate box structure


In and out of hopper

Q345 manganese plate production


Discharge chute

Equipped with an extended auxiliary chute that can rotate 180 degrees horizontally


water supply system

Large capacity air pressure water tank (300L)


Control method

Trinity (cab, rear sides)


Rotation speed (r/min)

0-14


Concrete slump (mm)

70-260


Tilt angle (°)

11.8


Discharge residual rate (%)

≤1


Top painting

Primer

Iron red acrylic


Medium coating

High gloss gray


Topcoat

polyurethane




Isuzu 4-axle mixer-Details
