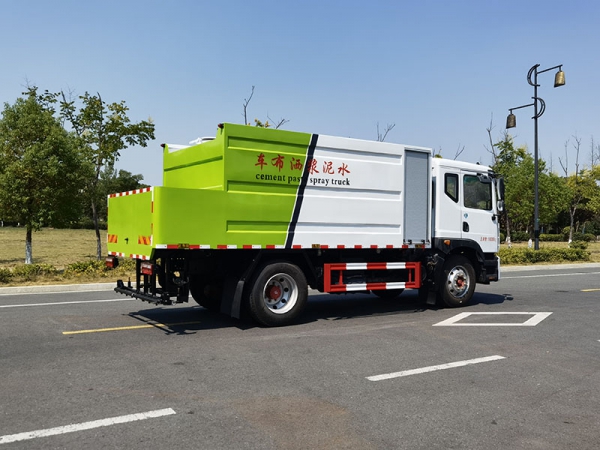

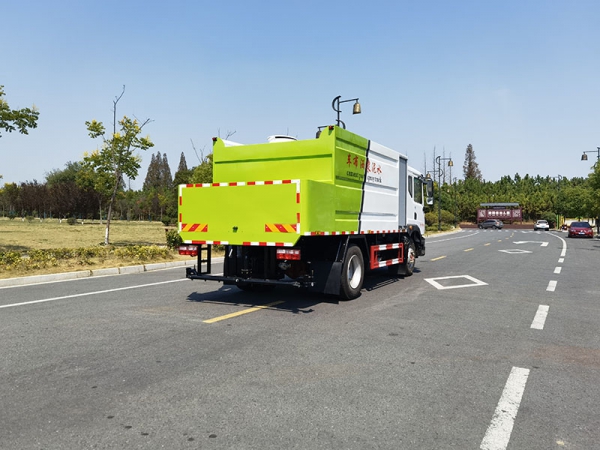

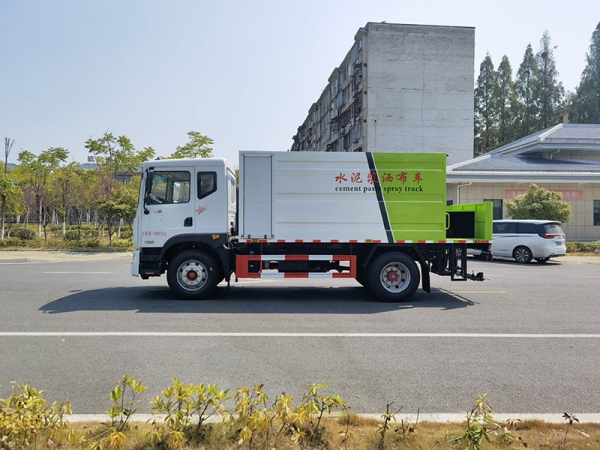

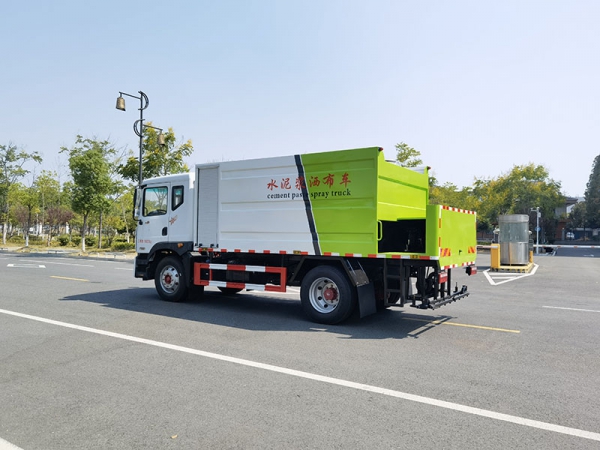

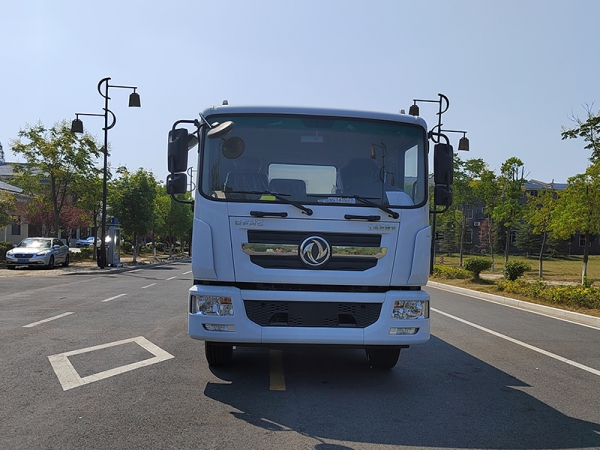

Dongfeng D9 Cement Slurry Sprinkler

1

Vehicle model

CLW5180TJS6

2

Chassis model

EQ1185LJ9CDE

3

engine model

Kangji 195 horsepower/ Kangji 230 horsepower

4

Wheelbase

3950mm

5

tire

275/80R 22.5

6

Dimensions

7200×2500×3150mm

7

curb weight

8240kg

8

total mass

18000kg

9

water tank

2800L

10

cement slurry mixing tank

6500L

11

High pressure cleaning water pump

Black cat high pressure water pump

12

High pressure cleaning water pump motor

CLH5-20

13

cement pump

CLHT-10010

14

cement pump hydraulic motor

CLH5-16

15

cement slurry mixer

CLHT-10018

16

cement slurry mixer motor

CLH-125

17

Hydraulic pump model

CLH4

18

Hydraulic valve model

CLH-L15F

19

regulating valve

40L

20

Cement slurry spreading width

Maximum 4.5 meters

twenty one

Cement slurry spreading amount

Maximum 1.5Kg/㎡
