Overall machine performance parameters

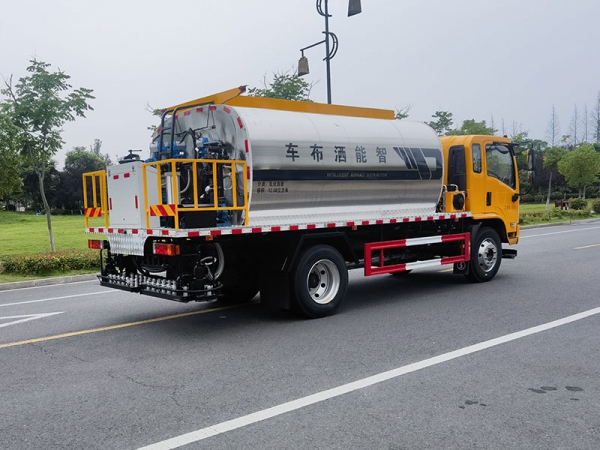

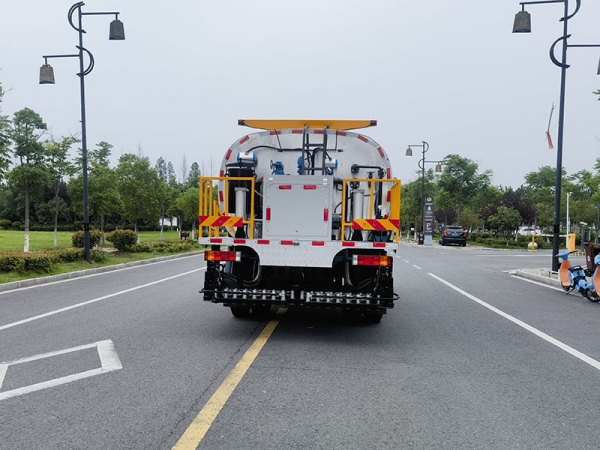

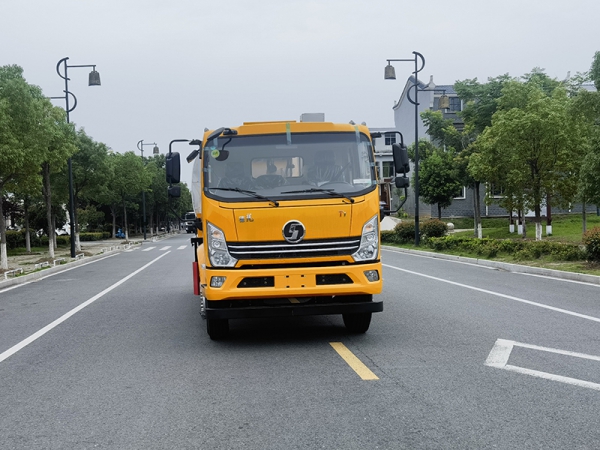

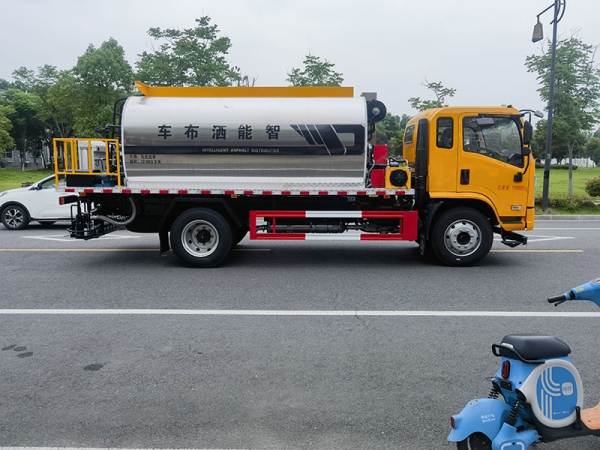

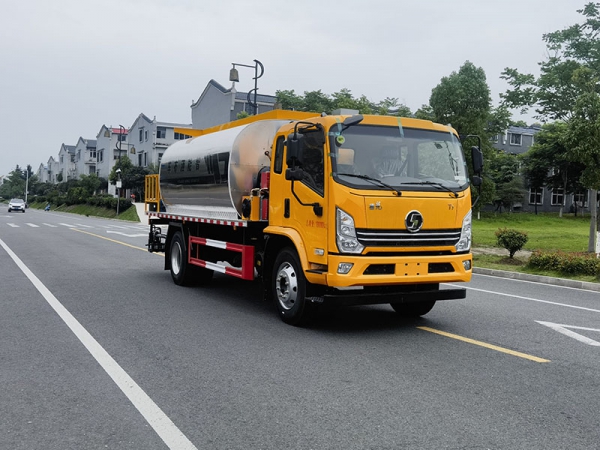

Product model: CLH5110GLQS6
Chassis brand and model: Shaanxi Automobile Delong K3000/YTQ1111KK422
Spreading width: 4500mm
Asphalt spreading amount: 0.2～1.5L/m 2
Heating method: Diesel burner heating in Riello, Italy (200,000 kcal/hour)
Spraying medium: hot asphalt, emulsified asphalt, SBS modified asphalt.
Spreading error: ±2%
Asphalt tank capacity: 8000L
Number of nozzles and control method: 34 intelligent nozzles, one controlled
Overall dimensions: 7400×2370×2680mm
Main configuration parameters:
serial number | name | Model, specifications | Belonging system | Remark |
1 | Car chassis | YTQ1111KK422 | Chassis | Shaanxi Automobile Delong K3000 |
2 | Engine ( optional) | WP3NQ160E61 | Weichai 160 HP National VI |
3 | Wheelbase | 3800mm |
|
4 | Asphalt tank capacity | 8 cubic meters | tank | High quality carbon steel |
5 | Thickness of insulation layer | 50mm | Rock wool insulation |
6 | Covered in stainless steel | 1mm | 1 thick stainless steel plate |
7 | PTO | Special for spreader truck | Source of work motivation |
|
8 | Hydraulic pump | CBQ5 4 0-L | Hydraulic system | Hefei Changyuan |
9 | Proportional valve | EF RD - G 03-160-5-31 | Northman |
10 | Solenoid directional valve | SWH-G03-D24-20 | Northman |
11 | heat sink | AH1012T | Guangzhou Hercules |
12 | Asphalt pump motor | 05- 110 BD 40 | Ningbo Han Bamboo |
13 | asphalt pump | QGB 680 | Asphalt Spraying System | Shanggui, 680 L/min |
14 | Number of nozzles | 34 | The control method is: 1 control 1 |
15 | hand spray gun | 5m hose + handheld spray boom | Corner touch-up spray |
16 | burner | G20 (100,000 kcal/hour) | Heating system | Riyadh |
17 | Thermal oil pump | RY32-32-160 | Hebei |
18 | Thermal oil pump motor | GM5-8-1FE13-20 | Tianjin Tianji |
19 | Control system method | Cab touch screen computer + rear working platform control (standby) | Control System | The control system adopts: Salinjo control module imported from the United States/Siemens from Germany, which runs faster and more smoothly and has a low failure rate. |
20 | speed sensor | Ni5-G12 | Turk, Germany |
twenty one | Temperature Controller | Pt100 | Shanghai |
