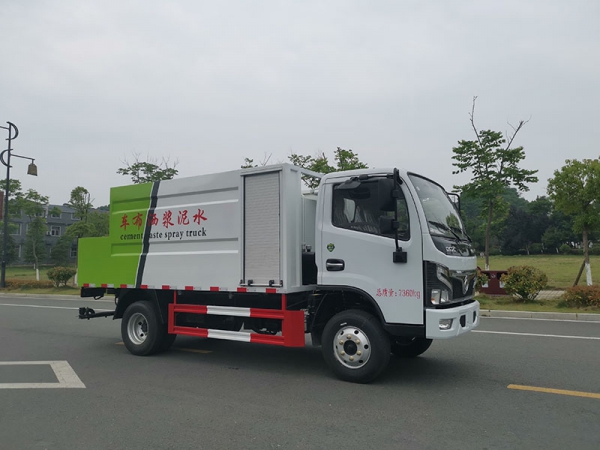

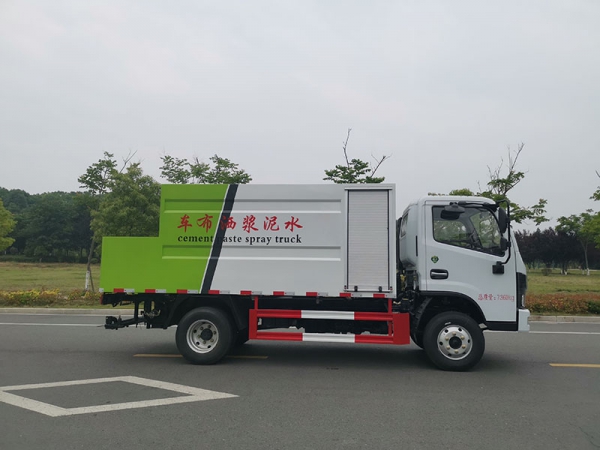

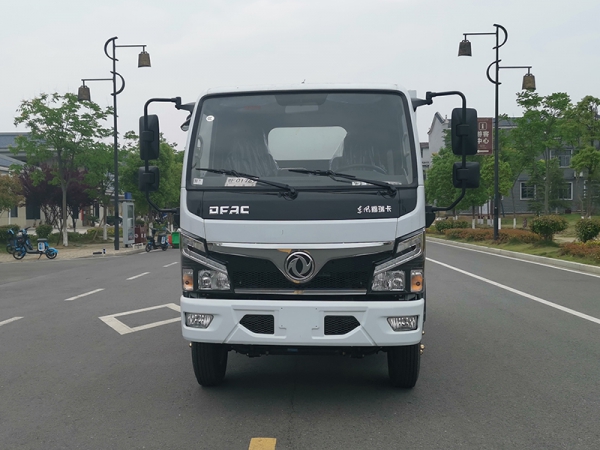

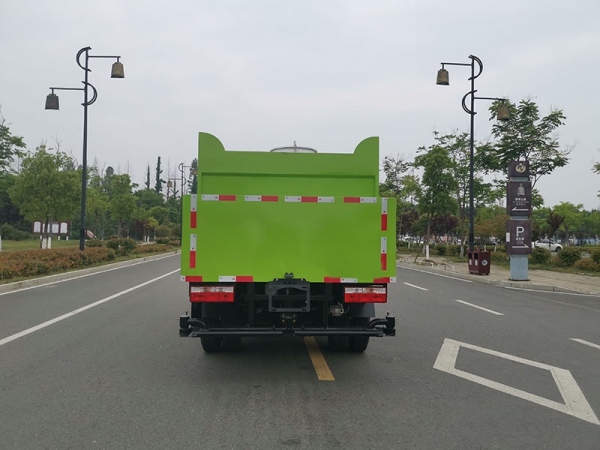

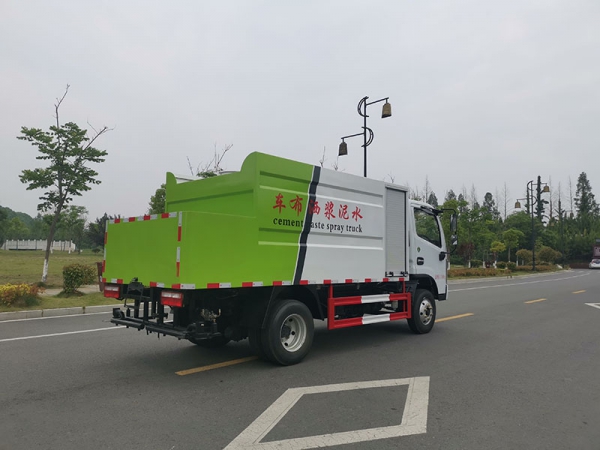

Dongfeng Cement Slurry Sprinkler

1

Vehicle model

CLW5070TJSE6

2

Chassis model

EQ1075SJ3CDF

3

engine model

Yuchai 140 horsepower

4

gearbox

Wanliyang 5-speed gearbox

5

Wheelbase

3308mm

6

tire

7.00R16 steel tire

7

Dimensions

5950×2020×2400mm

8

curb weight

4280kg

9

total mass

7360kg

7

water tank

1200L

8

cement slurry mixing tank

2500L

9

High pressure cleaning water pump

Black cat high pressure water pump

10

High pressure cleaning water pump motor

CLW5-20

11

cement pump

CLWT-10010-2

12

cement pump hydraulic motor

CLW5-16

13

cement slurry mixer

CLWT-10018-6

14

cement slurry mixer motor

CLW-125

15

Hydraulic pump model

CLW4-32-25

16

Hydraulic valve model

CLW-L15F

17

regulating valve

40L

18

Cement slurry spreading width

Maximum 4 meters

19

Cement slurry spreading amount

Maximum 1.5Kg/㎡
