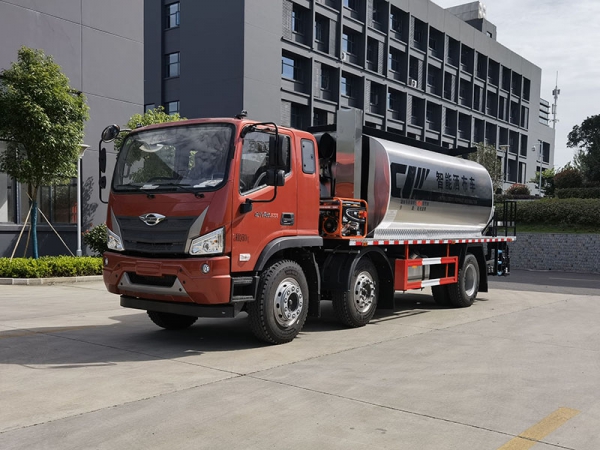

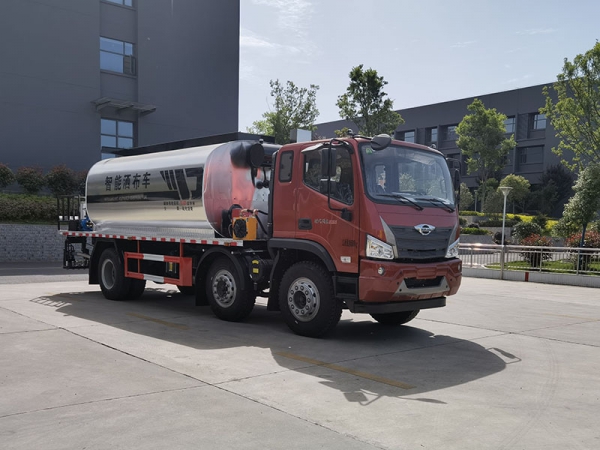

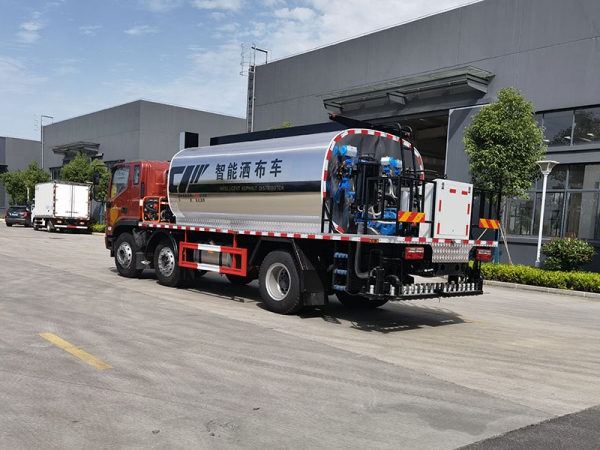

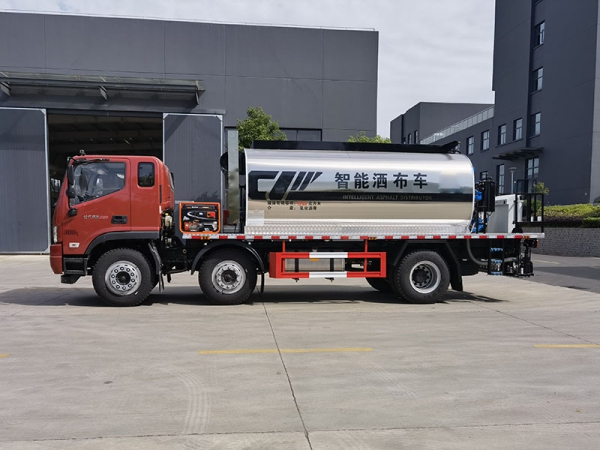

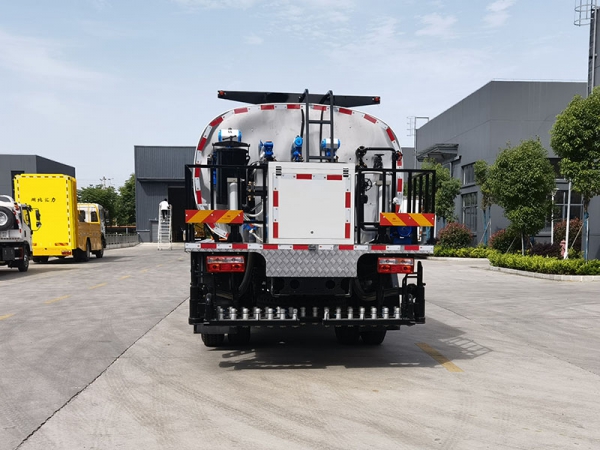

Foton small three-axle 16-square-meter intelligent sprinkler truck

1

Complete vehicle

CLW5240GLQB6

2

engine

WP4.6NQ220E61 (Weichai diesel generator) 220 horsepower

2

Vehicle size

8980×2480×3120

3

total mass

24500kg

4

curb weight

12400kg

5

Rated contained mass

11905kg

6

tire

10.R20 steel wire tire

8

Wheelbase

1800+3000mm

9

gearbox

Shaanxi small 8-speed gear

10

Asphalt tank capacity

16 cubic

11

Thick insulation layer

50mm

12

Covered in stainless steel

1 thick stainless steel

13

heating method

Italian Riello diesel burner G20+ heat conduction for full heating

14

Nozzle quantity control

36 (one control, one smart nozzle)

15

Hydraulic pump

GBQ550-L

16

Proportional valve

EFBG-03-160-HF

17

Asphalt pump motor

05-110-BD31

18

asphalt pump

QGB950 imported gear

19

hand spray gun

5m hose + handheld spray boom

20

Thermal oil pump

RY32-32-160

twenty one

control method

Cab touch screen computer control + rear working platform (standby)

twenty two

spray media

Emulsified asphalt, modified asphalt, hot asphalt, etc.
