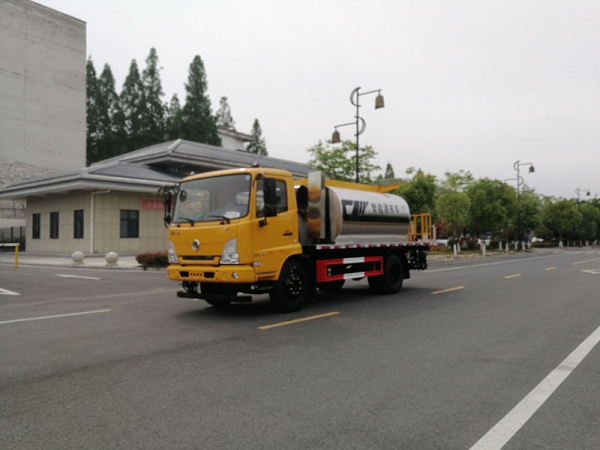

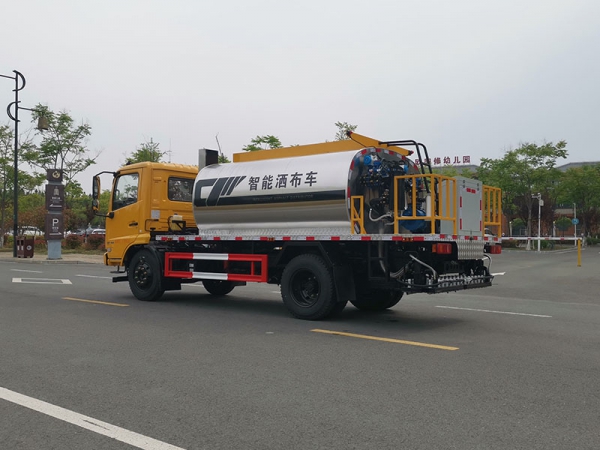

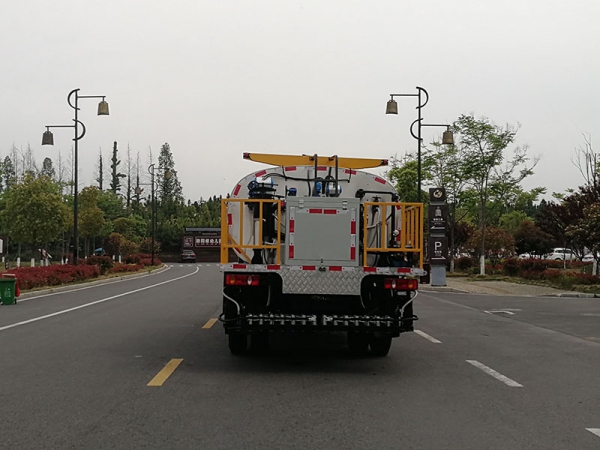

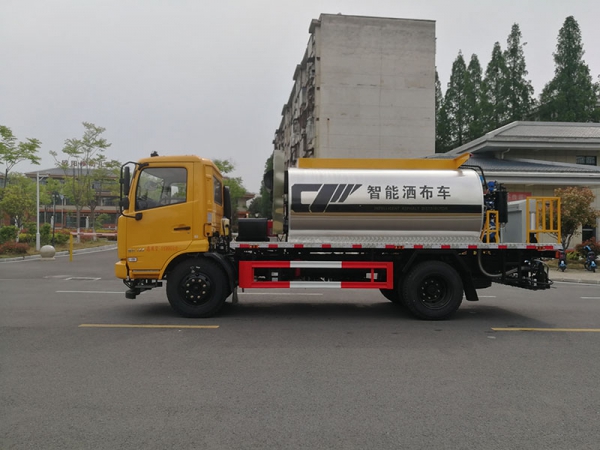

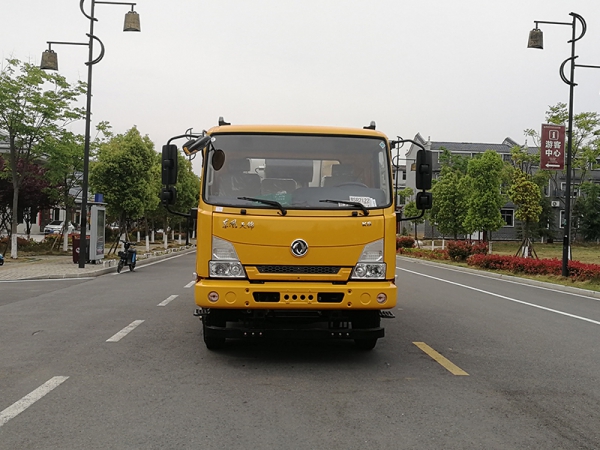

Tianjin 8-party intelligent asphalt sprinkler trucks

1

Car chassis

DFH1180EX8

Chassis

2

engine

B6.2NS6B210

Cummins 6 cylinder 210 HP

3

Asphalt tank capacity

12 cubic meters

tank

High quality carbon steel

4

Thickness of insulation layer

40mm

Rock wool insulation

5

Covered in stainless steel

1mm

1 thick stainless steel plate

6

PTO

Special for spreader truck

work motivation

7

Hydraulic pump

CBQ550-L

Hydraulic system

Tianjin

8

Proportional valve

EFBG-03-160-HF

Taiwan

9

Asphalt pump motor

05- 130- BD31

Tianjin/ Ningbo

10

asphalt pump

QGB 950

Asphalt Spraying System

Shanggui, 950 L/min

11

Number of nozzles

36

The control method is: 1 control 1

12

hand spray gun

5m hose + handheld spray boom

Filling the corners

13

burner

G20 (200,000 kcal/hour)

Heating system

Riallo, Italy

14

Thermal oil pump

RY 25-25-160

Hebei

15

Thermal oil pump motor

380V-2.2KW-2 pole

Lu'an, Anhui

16

Control system method

Cab touch screen computer control + rear working platform control (standby)

Control System

The control system adopts: Siemens modular design, which runs faster and smoother and has a low failure rate.

17

speed sensor

Ni5-G12

Tu
