Technical Parameters
Spreading width: 4500mm
Asphalt spreading amount: 0.25～3.5L/m 2
Heating method: Heating with diesel burner imported from Italy (100,000 kcal/hour)
Spraying medium: hot asphalt, emulsified asphalt, SBS modified asphalt.
Spreading error: ±2%
Asphalt tank capacity: 6000L
Number of nozzles and control method: 34 intelligent nozzles, one controlled
Dimensions: 7380×2280×2650mm
serial number | name | Model, specifications | Belonging system | Remark |
1 | Car chassis | EQ1125SJ8CDC | Chassis | Dongfeng |
2 | Engine ( optional) | Yuchai 165 horsepower | Dongfeng Dolica D7 cab |
3 | Wheelbase | 3800mm |
|
4 | Asphalt tank capacity | 6 cubic meters | tank | High quality carbon steel |
5 | Thickness of insulation layer | 50mm | Rock wool insulation |
6 | Covered in stainless steel | 1mm | 1 thick stainless steel plate |
7 | PTO | Special for spreader truck | Source of work motivation |
|
8 | Hydraulic pump | CBQ5 5 0-L | Hydraulic system | Tianjin |
9 | Proportional valve | EF RD - G 03-160- 05-31 | Northern Seiki |
10 | Asphalt pump motor | 05- 110- BD 40 | Ningbo Han Bamboo |
11 | asphalt pump | QGB 680 | Asphalt Spraying System | Shanggui, 680 L/min |
12 | Number of nozzles | 34 | The control method is: 1 control 1 |
13 | hand spray gun | 5m hose + handheld spray boom | Corner touch-up spray |
14 | burner | G20 (100,000 kcal/hour) | Heating system | Riyadh |
15 | Thermal oil pump | RY32-32-160 | Hebei |
16 | Thermal oil pump motor | 380V-2.2KW-2 pole | Lu'an, Anhui |
17 | Control system method | Cab touch screen computer + rear working platform control (standby) | Control System |

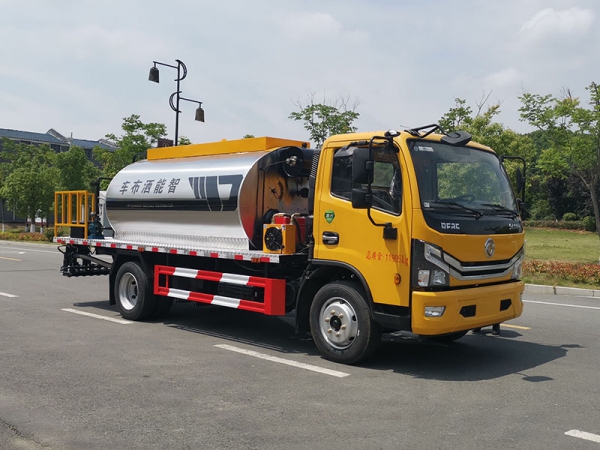

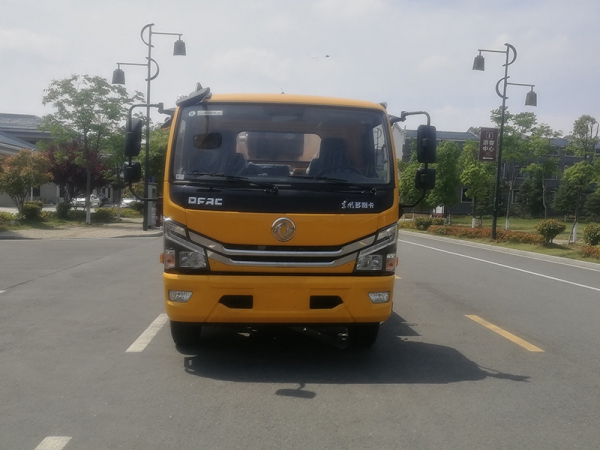

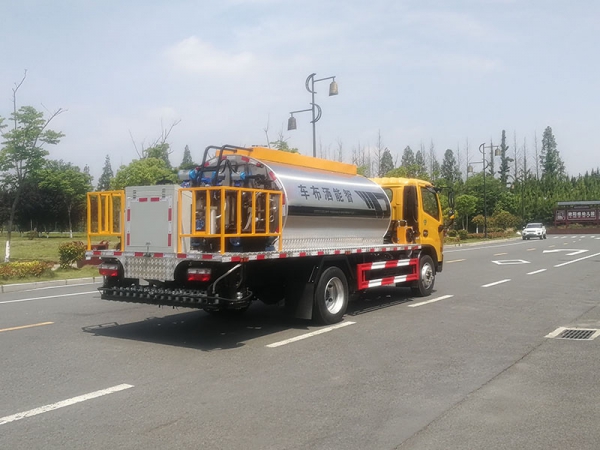

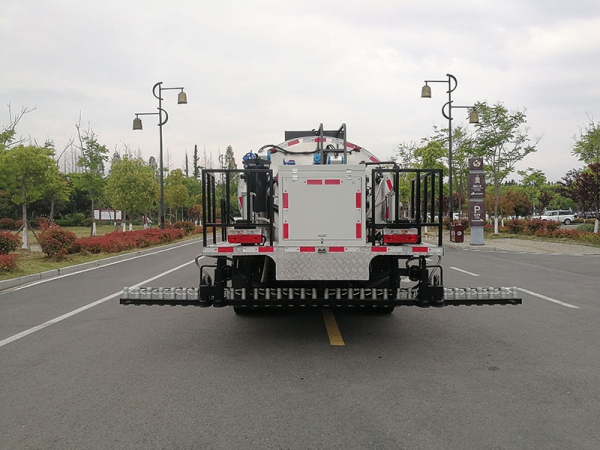

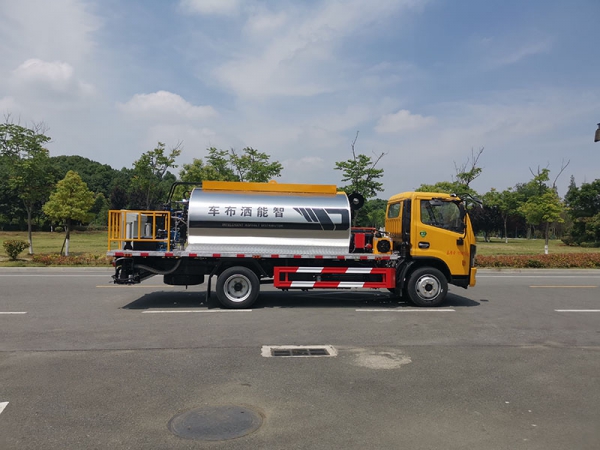

Dongfeng Dolicharge 6-square-meter intelligent asphalt sprinkler truck-Details
