Jiefang front four rear eight crane

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

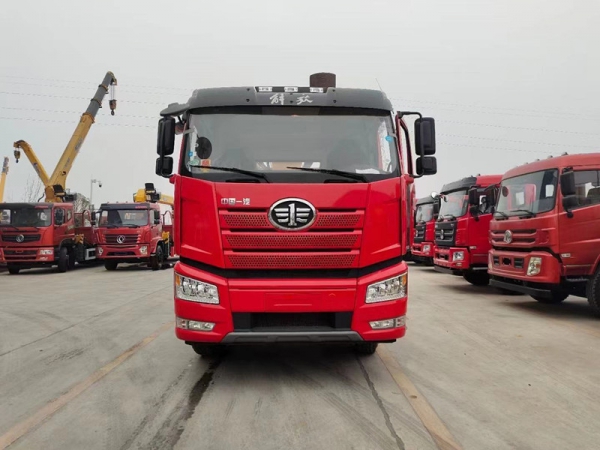

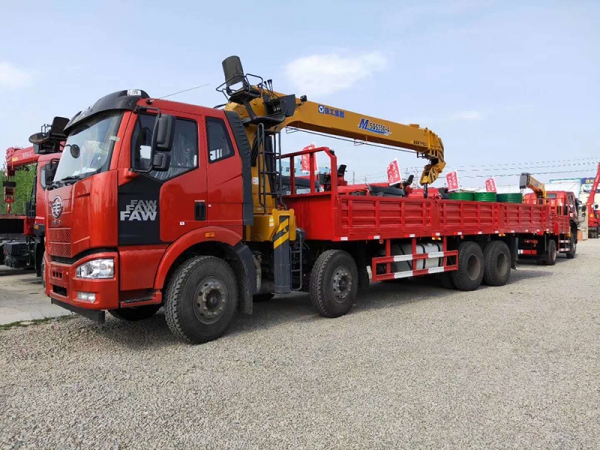

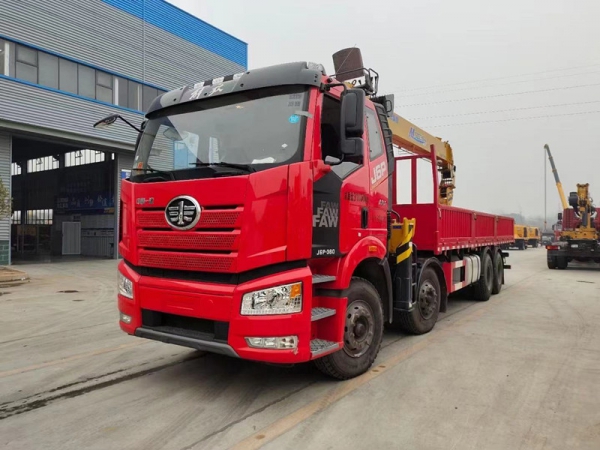

Jiefang front four rear eight crane-Product Pictures

Jiefang front four rear eight crane Jiefang front four rear eight crane Jiefang front four rear eight crane

Jiefang front four rear eight crane-Product Parameters

Shaanxi Automobile's front four and rear eight 1 4- ton truck-mounted cranes



Vehicle  technical parameters

product name

Truck-mounted  lifting transport truck

Total mass (Kg)

31000

Rated load  mass (Kg)

10570,10505

Overall  dimensions (mm)

12000 × 2550 × 3980

Curb weight (Kg)

20600

Cargo  compartment size (mm)

(7500+600  ramp) x2450x 55 0

Number of  permitted passengers in the cab (person)

2,3

Maximum load  capacity of saddle (Kg)


Approach  angle /departure angle (°)

16/12

Front  suspension /rear suspension (mm)

1525/2400

Axle load (Kg)

6500/6500/18000  (two-axis group)

Maximum speed  (Km/h)

89

Chassis technical parameters

Chassis model

SX1319MC6Z2

Chassis name

Truck chassis

Trade name

Jiefang brand

manufacturer

China FAW  Group Co., Ltd.

Number of  axes

4

Number of  tires

12

Wheelbase(mm)

2200+4300+1350mm

Tire  specifications

11.00R20

Number of  leaf springs

14/14/12

Front  wheelbase (mm)

2011/2011,2036/2036,2070/2070

Fuel type

diesel fuel

Rear  wheelbase (mm)

1860/1860

Emission  standards

GB3847-2005,  GB17691-2018 Country VI

engine model

Engine  manufacturer

Displacement (ml)

Power (Kw)

CA6DK2D35E65

Dachai  Engine Co., Ltd.

7751

257

Basic configuration: FAW Jiefang special  chassis with four front and eight rear truck cranes, Dachai 350 horsepower,  new J6L fully floating flat-top row and half cab, LCD instrument, electric  glass lift, manual rearview mirror, and the driver's seat is air  vibration-absorbing Seat, single DIN Beidou  compatible vehicle system, automatic air conditioning, fuel tank 400L, cab  four-point coil spring suspension, manual hydraulic lifting device,  suspension 12/12/10, aluminum alloy air tank, crane connection plate, remote  control Start and stop.










Crane configuration  parameters

Crane model

XCMG G series 14 tons - 5-section arm

Boom length

19.5 meters

Lifting height

21.5 meters

Fuel tank capacity

270L

Crane dead weight

6880Kg

Outrigger span

7.6

Subframe configuration

9540mm*8mm manganese steel





Auxiliary configuration

★Double-section hydraulic  composite front outriggers, large span and safer

★Upper operation, better vision  during hoisting (lower operation and middle operation are optional)

★Double pump, more convenient to  operate and use

★Night lighting, original  radiator,
