SINOTRUK

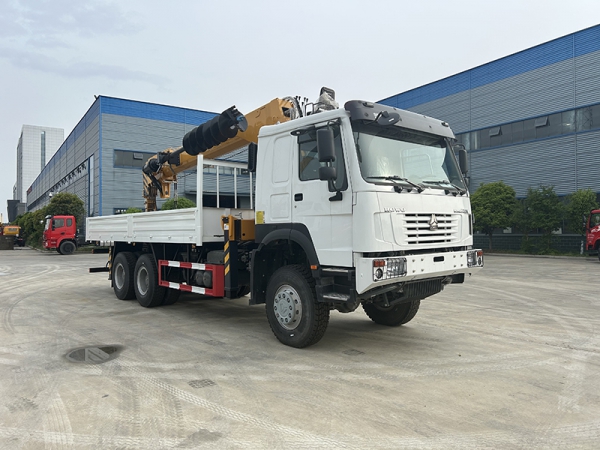

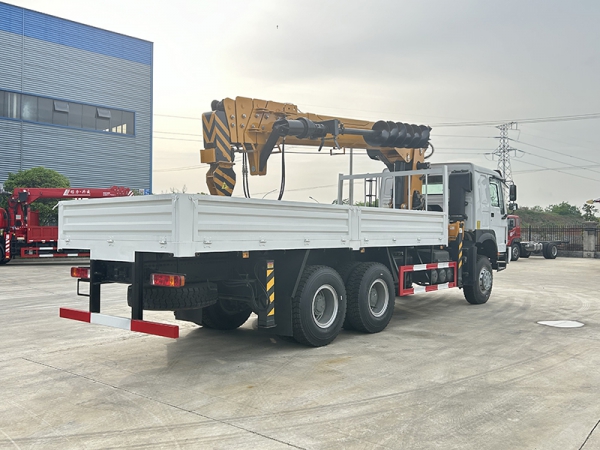

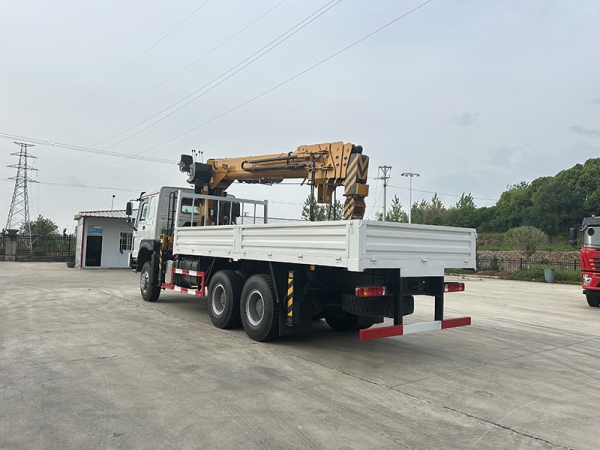

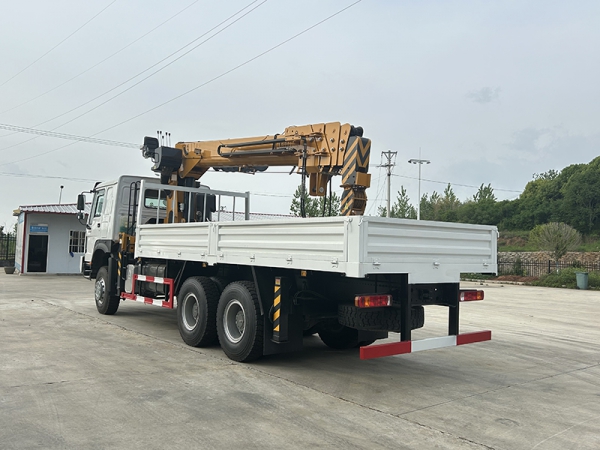

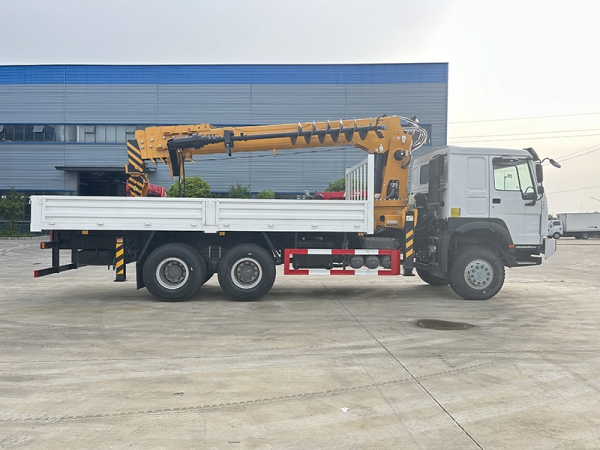

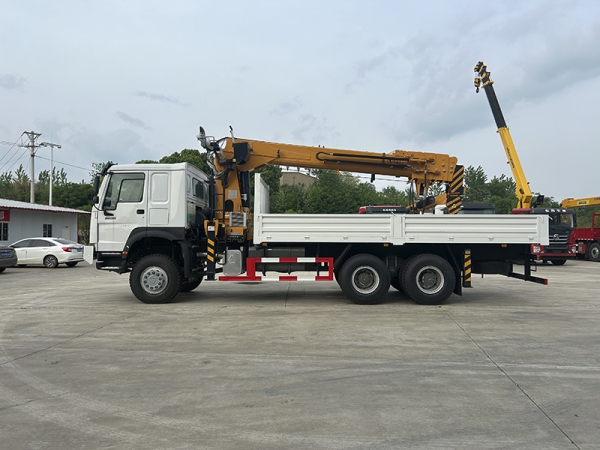

Howo 8*2 XCMG 14- ton truck mounted crane
Vehicle technical parameters |
product name | Truck-mounted
lifting transport truck | Total mass (Kg) | 25,000 |
Rated load
mass (Kg) | 10055 | Overall
dimensions (mm) | 12000× 2500 ×3750 |
Curb weight (Kg) | 20750 | Cargo
compartment size (mm) | 8200/8300/ 8500x2450x
55 0 |
Number of
permitted passengers in the cab (person) | 3,2 | Maximum load
capacity of saddle (Kg) |
|
Approach
angle /departure angle (°) | 19/1 0 | Front
suspension /rear suspension (mm) | 1430/2820 |
Axle load (Kg) | 6500/7000/17500 | Maximum speed
(Km/h) | 89 |
Chassis technical parameters |
Chassis model | ZZ1317V4667B1R/S0WAV4 | Chassis name | Truck
chassis |
Trade name | Howo brand | manufacturer | China
National Heavy Duty Truck Group Co., Ltd. |
Number of
axes | 3 | Number of
tires | 12 |
Wheelbase(mm) | 4750 +1350 |
Tire
specifications | 1 1 .00R20 |
Number of
leaf springs | 11/11/12 | Front
wheelbase (mm) | 2015/2015 |
Fuel type | diesel
fuel | Rear
wheelbase (mm) | 1830/1830 |
Emission
standards | GB3847-2005,
GB17691-2018 Country II |
engine model | Engine
manufacturer | Displacement (ml) | Power (Kw) |
WP10.380E22 | Weichai
Power Co., Ltd. | 8 800 | 2 79 (3 80 HP) |
Chassis
configuration 1: Euro II emissions ;
1800+4600+1350 wheelbase; HOWO; V7; basic model; truck; heavy-duty
transportation; HW76 new front cab; WP10.380E22 engine; HW19710 gearbox +
HW70 method Blue-type power take-off; VGD95 front axle (drum); MCP16ZG double
rear axle (drum); double-layer frame (8+8/300); front and rear enhanced
multi-leaf springs (11/11/12); right-hand direction machine; road version air
intake system; standard version exhaust system; without ABS; high-mounted
bumper (metal); 12.00R20; 400L fuel tank; English instruments; 4.77; |
Crane configuration
parameters |
Crane model | XCMG G series 14 tons - 5-section arm |
Boom length | 19.5 meters | Lifting height | 21.5 meters |
Fuel tank capacity | 270L | Crane dead weight | 6880Kg |
Outrigger span | 7.6 | Subframe configuration | 9540mm*8mm manganese steel |
Auxiliary configuration | ★Double-section hydraulic
composite front outriggers, large span and safer |
★Upper operation, better vision
during hoisting (lower operation and middle operation are optional) |
★Double pump, more convenient to
operate and use |
★Night lighting, original
radiator, |
