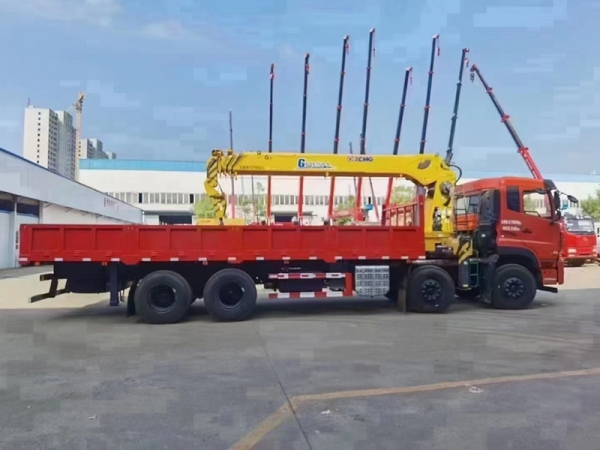

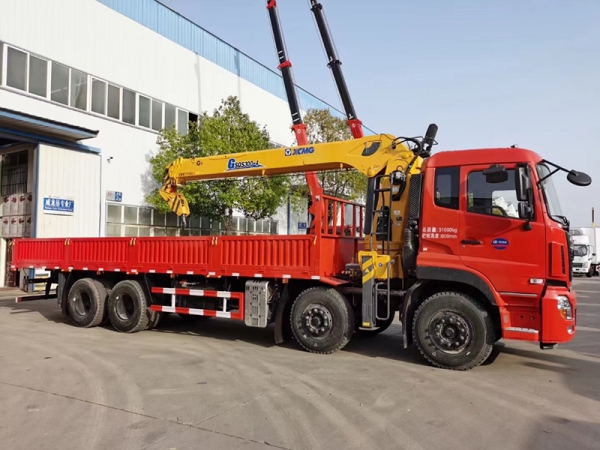

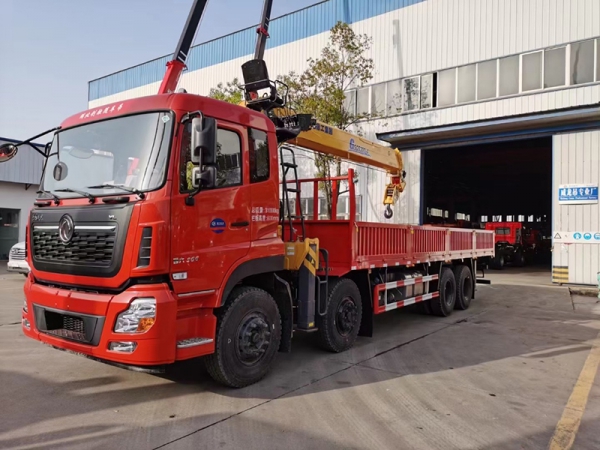

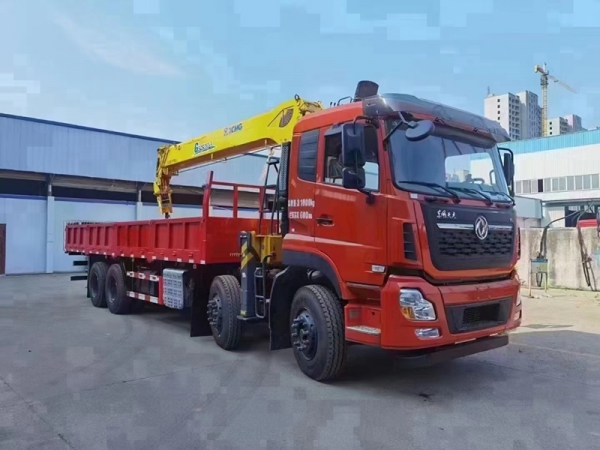

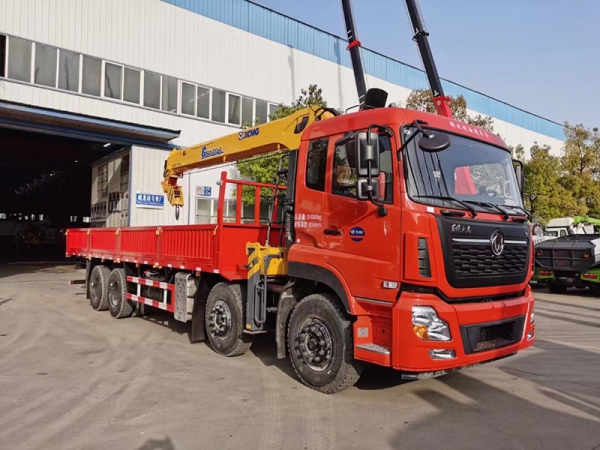

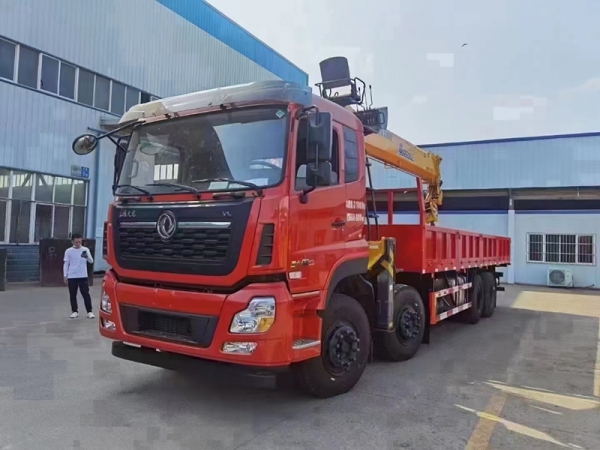

National Six Tianlong front four rear eight 1 4- ton truck mounted crane
Vehicle
technical parameters |
product name | Truck-mounted
lifting transport truck | Total mass (Kg) | 31000 |
Rated load
mass (Kg) | 10570,10505 | Overall
dimensions (mm) | 12000 × 2550 × 3980 |
Curb weight (Kg) | 20600 | Cargo
compartment size (mm) | 8100/ 8300x2450x
55 0 |
Number of
permitted passengers in the cab (person) | 2,3 | Maximum load
capacity of saddle (Kg) |
|
Approach
angle /departure angle (°) | 16/12 | Front
suspension /rear suspension (mm) | 1525/2400 |
Axle load (Kg) | 6500/6500/18000
(two-axis group) | Maximum speed
(Km/h) | 89 |
Chassis technical parameters |
Chassis model | DFV5310 | Chassis name | Truck chassis |
Trade name | Dongfeng
brand | manufacturer | Dongfeng
Commercial Vehicle Co., Ltd. |
Number of
axes | 4 | Number of
tires | 12 |
Wheelbase(mm) | 2050+4400+1350 |
Tire
specifications | 11.00R20 |
Number of
leaf springs | 14/14/12 | Front
wheelbase (mm) | 2011/2011,2036/2036,2070/2070 |
Fuel type | diesel fuel | Rear
wheelbase (mm) | 1860/1860 |
Emission
standards | GB3847-2005,
GB17691-2018 Country VI |
engine model | Engine
manufacturer | Displacement (ml) | Power (Kw) |
ISB360 | Dongfeng
Cummins | 7800 | 265 |
Basic configuration: Guoliukangji 360
horsepower engine, 12-speed gearbox, front axle 5.5 tons, rear axle 10 tons,
wheelbase: 2050+4400+1350, 300mm straight through three-layer beam, 11.00R20
steel wire tires, original air conditioner, Air bag seat, driving recorder,
four-point suspension electro-hydraulic flip cab, |
|
|
|
|
|
Crane configuration
parameters |
Crane model | XCMG G series 14 tons - 5-section arm |
Boom length | 19.5 meters | Lifting height | 21.5 meters |
Fuel tank capacity | 270L | Crane dead weight | 6880Kg |
Outrigger span | 7.6 | Subframe configuration | 9540mm*8mm manganese steel |
Auxiliary configuration | ★Double-section hydraulic
composite front outriggers, large span and safer |
★Upper operation, better vision
during hoisting (lower operation and middle operation are optional) |
★Double pump, more convenient to
operate and use |
★Night lighting, original
radiator, |
