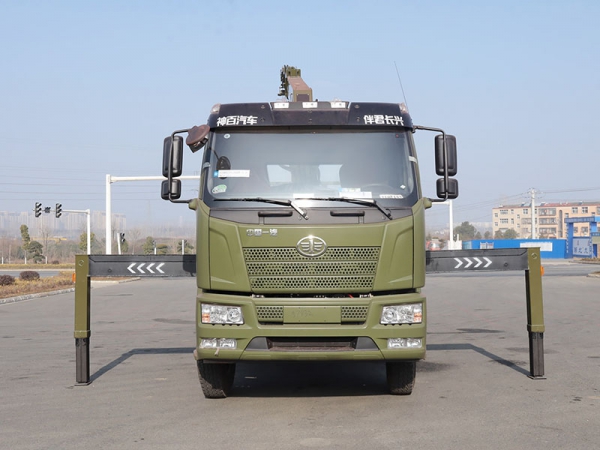

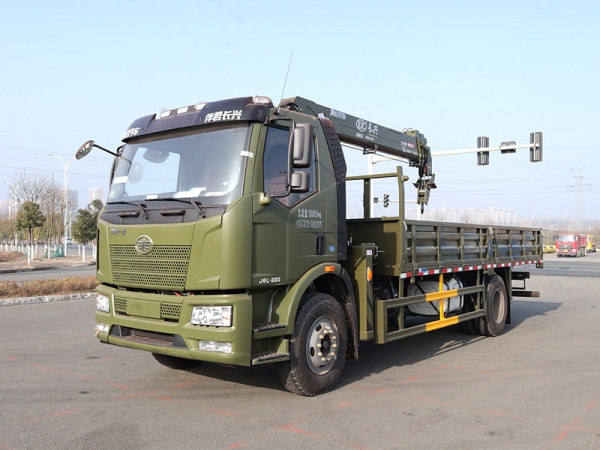

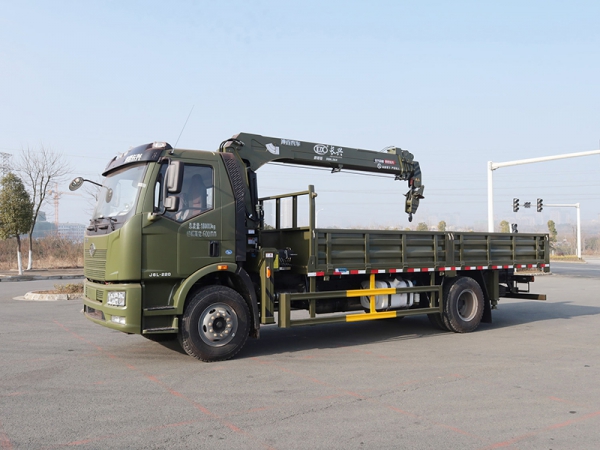

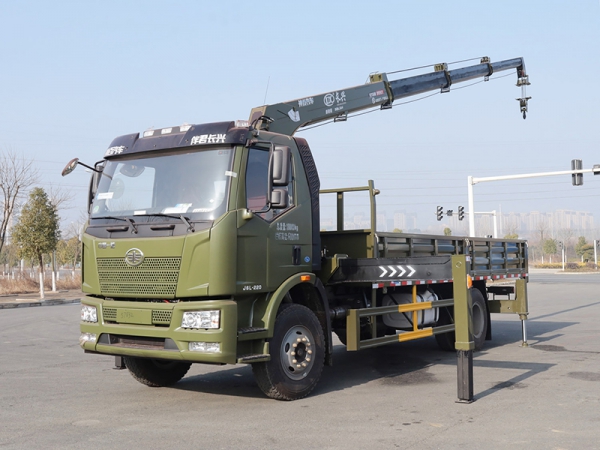

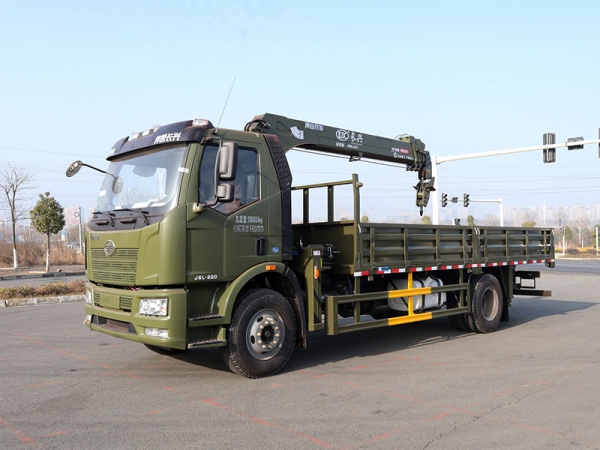

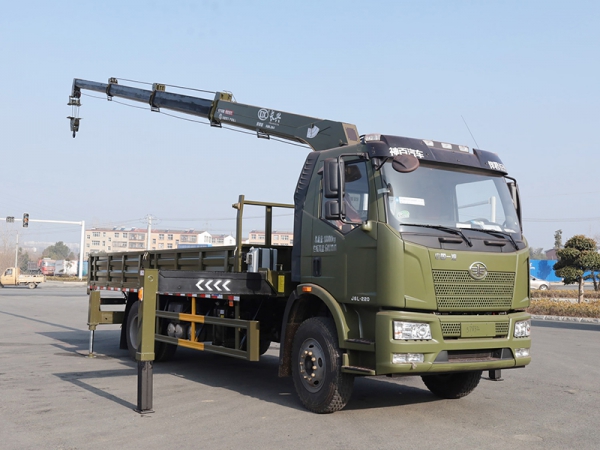

Jiefang J6L single-row top-loading Changxing Quality Premium Edition 6.3 tons

product name

Truck-mounted  lifting transport truck

Product  number

JF5184JSQ6SZ

Total mass (Kg)

18000

Axle load (Kg)

6500/11500

Rated load  mass (Kg)

5870

Overall  dimensions (mm)

9000  × 2550 × 3850

Curb weight (Kg)

12000

Cargo  compartment size (mm)

6100  × 2450 × 600

Approach  angle /departure angle (°)

17/12

Maximum  speed (Km/h)

89

Number of  permitted passengers in the cab (person)

2,3

Front  suspension /rear suspension (mm)

1400/2600

[ Chassis technical parameters]

Chassis  model

CA1180P62K1L2E6Z

Chassis name

Flat  head diesel truck chassis

Trade name

Jiefang  brand

manufacturer

China  FAW Group Co., Ltd.

Number of  axes

2

Number of  tires

6

Wheelbase(mm)

5300,5000,4700,4500,5600,5800,6000,4200,4000,3800

Tire  specifications

10.00R20,11.00R20,295/80R22.5,295/60R22.5,275/80R22.5,11R22.5

Number of  leaf springs

10/12+8,12/12+8,13/12+8,7/7+6,10/12+9,10/9+7

Front  wheelbase (mm)

1928,1827,1800,1950

Fuel type

diesel  fuel

Rear  wheelbase (mm)

1878,1860

Emission  standards

GB17691-2018  Country VI

engine model

Engine  manufacturer

Displacement  (ml)

Power (Kw)

CA4DK1-18E6

China  FAW Group Co., Ltd.

4764

139
